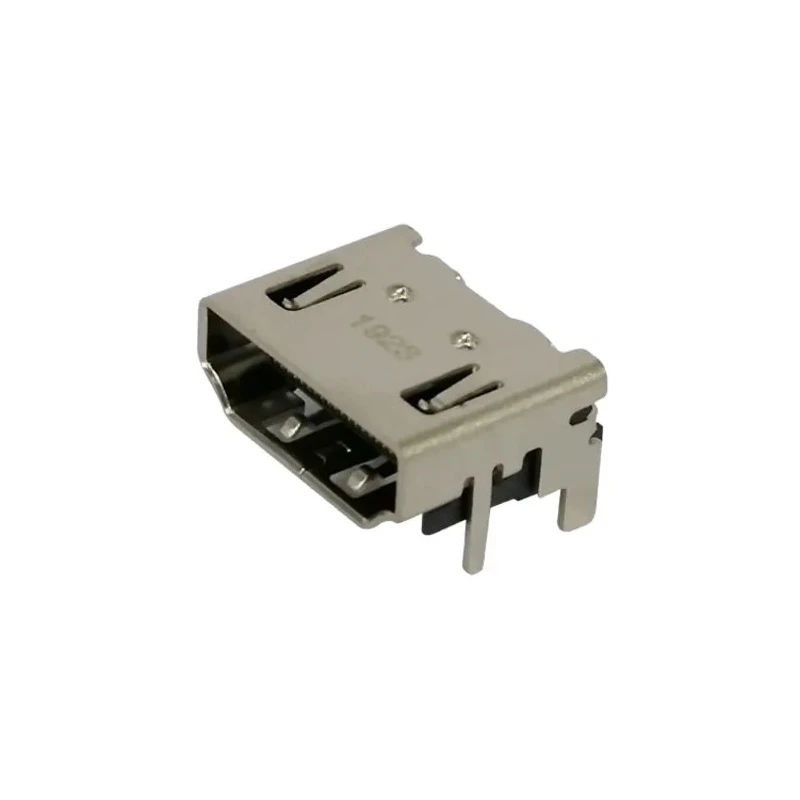

Molex Type A 19 Way Right Angle Female HDMI Connector 40V 2086581001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 40V |
| Size | Type A |
| Brand | Molex |
| Colour | Silver |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | 208658 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | standard HDMI connections |
| Contact Plating | Gold |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Right-angle orientation minimizes space requirements in tight installations.
- Surface mount design facilitates easy PCB assembly.
- Gold-plated brass contacts ensure reliable signal integrity and durability.
- Rated current per contact is 0.5A suitable for low power HDMI applications.
- Operating temperature range from -20°C to +85°C for varied environmental resilience.
- Housing constructed from liquid crystal polymer for high temperature resistance.
- Supports up to 10,000 mating cycles ensuring long-term reliability.
- Compatible with standard HDMI 19-pin connections for versatile use.
Product Description
Molex 2086581001 Type A 19 Way Right Angle Female HDMI Connector rated at 40V offers a compact, reliable connection solution for high definition multimedia interface systems. Featuring a right-angle design, it efficiently minimizes space usage, making it suitable for tight mechanical and electronic assemblies.
The connector uses surface mount termination allowing straightforward PCB assembly processes. Its brass contacts are gold-plated to assure excellent signal integrity and durability under demanding operating conditions.
Each contact supports a maximum current of 0.5A, ideal for low power HDMI signaling. The housing is made from liquid crystal polymer, a high-temperature thermoplastic material that operates reliably between -20°C and +85°C.
This HDMI connector supports up to 10,000 mating cycles ensuring sustained performance over long term usage. The 19-pin female configuration is compatible with standard HDMI connections commonly used in consumer electronics, automation, and mechanical device interfaces.
The product is RoHS compliant, confirming it meets environmental and safety regulations required in modern electronic applications. Its silver-colored housing complements a professional PCB and device assembly environment.
Right-angle design minimizes installation space. Surface mount facilitates manufacturing process. Gold-plated brass contacts provide reliable connectivity. Supports 0.5A current per contact for low power applications. Operates reliably between -20°C and +85°C.
Durable liquid crystal polymer housing material. Supports 10,000 mating cycles for longevity. Standard 19-pin HDMI compatibility. Applications in consumer, automation and mechanical electronics. RoHS compliant for environmental safety.
This Molex HDMI Connector is ideal for industrial, electronic manufacturing, consumer electronics, and automation system applications requiring compact, durable, and high-performance AV connectivity solutions.
Explore more connectors and electronic components in the Electronics & Electricals category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each contact of this HDMI connector supports a maximum current of 0.5A, making it suitable for low power HDMI applications.
This connector operates reliably within a temperature range of -20°C to +85°C, allowing it to function in varied environmental conditions.
The housing is constructed from liquid crystal polymer, which provides high temperature resistance and durability.
This model supports up to 10,000 mating cycles, ensuring long-term reliability in connections.
It utilizes a surface mount termination type, facilitating straightforward PCB assembly processes.
Yes, this connector is RoHS compliant, confirming it meets environmental and safety regulations required in modern electronic applications.
This model features a right-angle orientation, which minimizes space requirements in tight installations.
This connector has 19 contacts, designed to be compatible with standard HDMI connections.
The contacts are made of brass and are gold-plated, ensuring reliable signal integrity and durability.
This connector is classified as Type A, which is the standard size for HDMI connections.
The housing of this model is silver in color, which complements a professional PCB and device assembly environment.
The country of origin for this HDMI connector is China.
