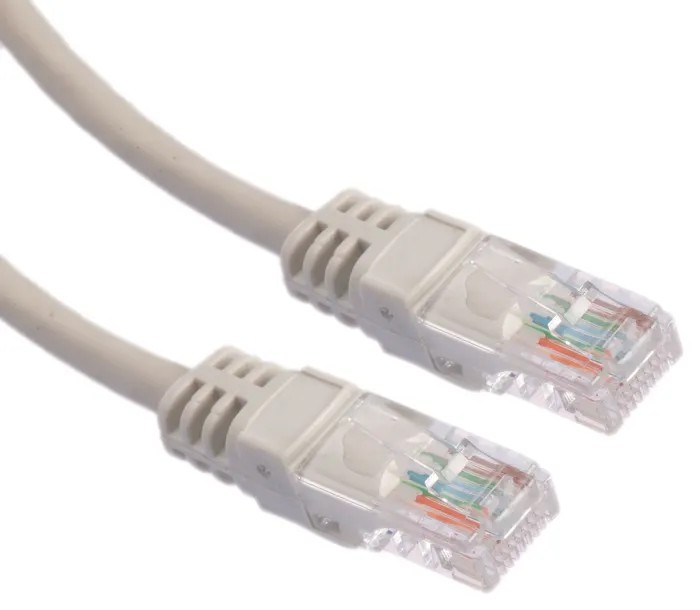

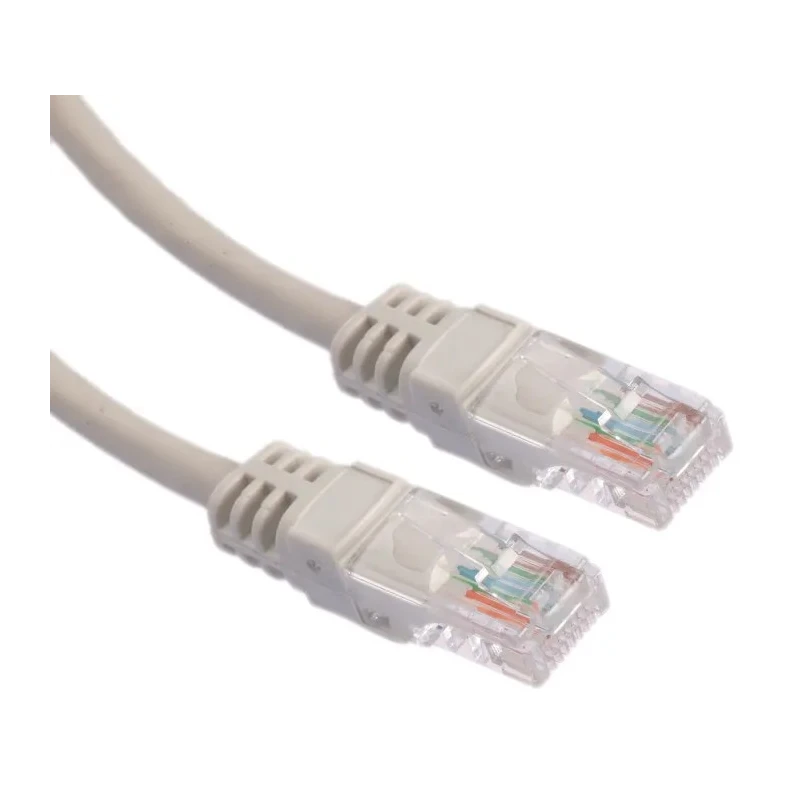

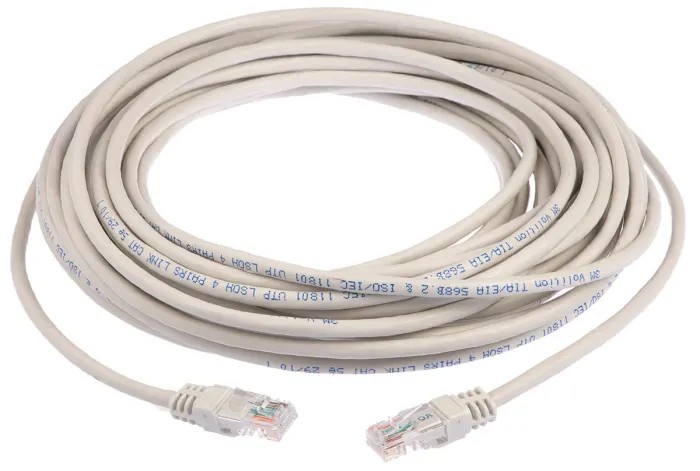

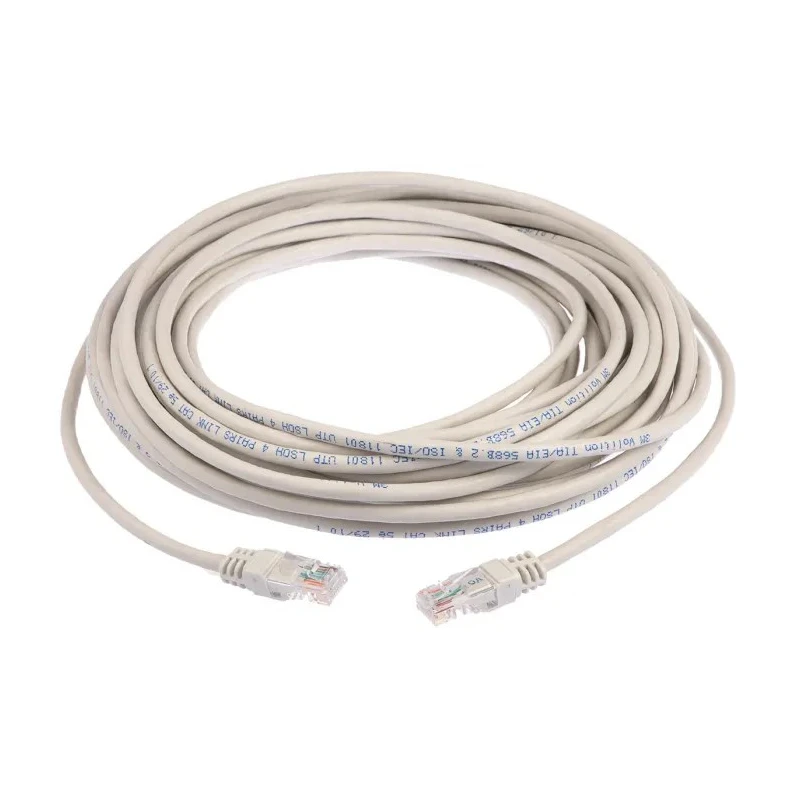

Molex CES Shielded Cat6 Ethernet Cable Low Smoke Zero Halogen 150V
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Molex CES |
| Model | Cat6 |
| Series | PCD |
| Outside diameter | 6.3mm |
| Maximum Operating Temperature | 60°C |
| Number Of Cores | 4 |
| Conductor Material | Wire, 26 AWG Stranded Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Shield Type | Shielded |
| Conductor Type | Stranded |
| LAN Category | Cat6 |
Key Features
- Shielded cable for enhanced protection against electromagnetic interference.
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic fumes in case of fire.
- Consists of 4 cores of 26 AWG stranded copper wire.
- Nominal cable diameter of 6.3 mm ensures flexible handling and installation.
- Operates safely within a temperature range of -20°C to 60°C.
- Compliant with international standards including ISO/IEC 11801, TIA-568-C.2, and RoHS.
- Rated for 150 V voltage applications, suitable for commercial and industrial Ethernet networks.
- Pre-terminated with RJ45 plugs and features an anti-snag strain relief boot.
Product Description
The Molex CES PCD-04013-0E Cat6 Shielded Ethernet Cable is engineered for high-performance networking requiring secure data transfer and physical durability. Featuring a shielded design, it effectively minimizes interference commonly found in industrial and commercial environments where electromagnetic noise is prevalent.
The cable uses four pairs of 26 AWG stranded copper wire conductors encased in a Low Smoke Zero Halogen (LSZH) sheath, which provides enhanced fire safety by limiting the emission of toxic gases during combustion. Its nominal outside diameter of 6.3 mm allows easy routing through conduits and cable trays while maintaining flexibility.
This cable operates efficiently over a temperature range of -20°C to 60°C, making it suitable for various environmental conditions. It meets stringent international standards including ISO/IEC 11801:2002, TIA-568-C.2 Cat6, and RoHS directives, ensuring reliability and environmental compliance.
Each cable is pre-terminated with RJ45 connectors and includes an anti-snag slip-on boot to protect the plug and facilitate quick installation. It supports both EIA 568A and 568B wiring schemes, compatible with a wide range of network devices.
Ideal for use in industrial automation, data centers, and commercial networking infrastructures, this Molex CES shielded Cat6 cable guarantees optimal network performance and safety.
Shielded cable for enhanced protection against electromagnetic interference. Low Smoke Zero Halogen jacket enhances fire safety. Consists of 4 cores of 26 AWG stranded copper wire for superior conductivity. Nominal outside diameter of 6.3 mm provides flexible installation.
Wide operating temperature range from -20°C to 60°C. Complies with international standards such as ISO/IEC 11801 and TIA-568-C.2. Pre-terminated with RJ45 plugs with strain relief for durability. Manufactured in India with ETL and CSA certifications.
Explore the complete range of networking cables on EnvMart for reliable and certified connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Ethernet cable is rated for 150V applications, making it suitable for commercial and industrial networking environments.
It consists of 4 cores of 26 AWG stranded copper wire, providing superior conductivity for data transmission.
The nominal outside diameter of this cable is 6.3 mm, which allows for flexible handling and installation.
This cable operates efficiently within a temperature range of -20°C to 60°C, suitable for various environmental conditions.
Yes, this model features a shielded design that enhances protection against electromagnetic interference, making it ideal for industrial settings.
It is encased in a Low Smoke Zero Halogen (LSZH) jacket, which reduces toxic fumes in case of fire, enhancing safety.
It complies with international standards including ISO/IEC 11801:2002 and TIA-568-C.2, ensuring reliability and environmental compliance.
The cable comes pre-terminated with RJ45 connectors and features an anti-snag strain relief boot for added durability during installation.
It supports both EIA 568A and 568B wiring schemes, making it compatible with a wide range of network devices.
This model is manufactured in India, ensuring compliance with various international standards.
It is ideal for use in industrial automation, data centers, and commercial networking infrastructures, ensuring optimal network performance.
This cable consists of 4 cores, which are essential for its functionality in data transmission.
