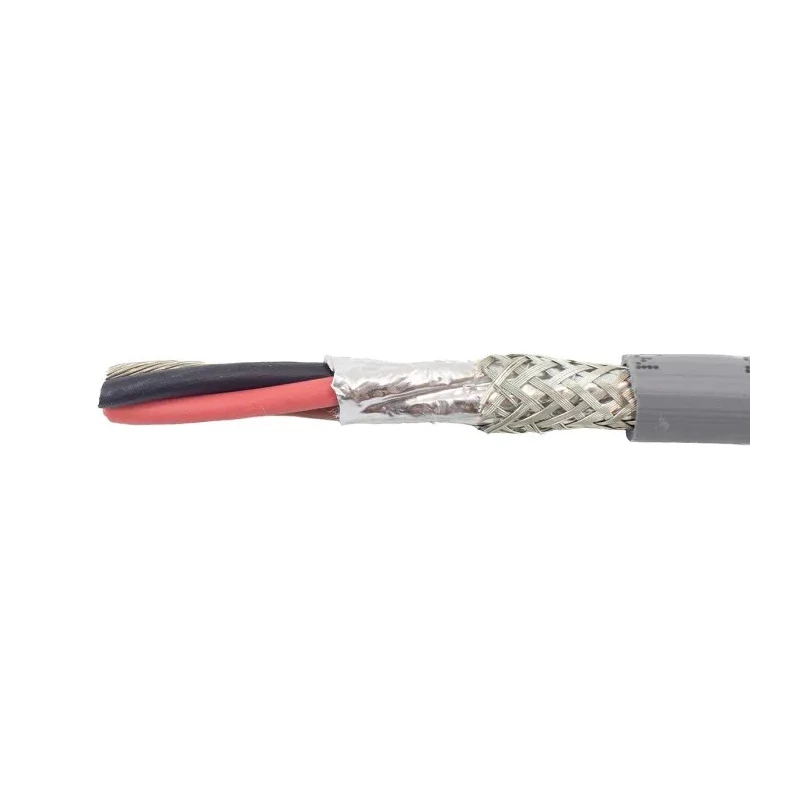

Alpha Wire ECO Control Cable 3 Cores 0.81mm² 18 AWG Screened 600V 30m Grey Modified Polyphenylene Ether Sheath 77214 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 77214 SL005 |
| Cable Length | 30m |
| Series | ECO |
| Outside diameter | 6.12mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.241 inch (6.12 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 16 |
| Core Strands | 16 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.81mm² |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 16/30 |
Key Features
- The cable sheath is made of grey modified polyphenylene ether offering excellent mechanical strength.
- It operates at 600 volts and withstands temperature ranges from -50°C to 105°C.
- Constructed with tin copper wire conductors, providing effective conductivity and EMI shielding.
- Screened with Supra-Shield technology combining aluminum/polyester/aluminum foil and braided tinned copper for superior EMI protection.
- The cable length is 30 meters, suitable for extended control wiring in machinery.
- Environmentally friendly with zero halogen content and fully recyclable materials.

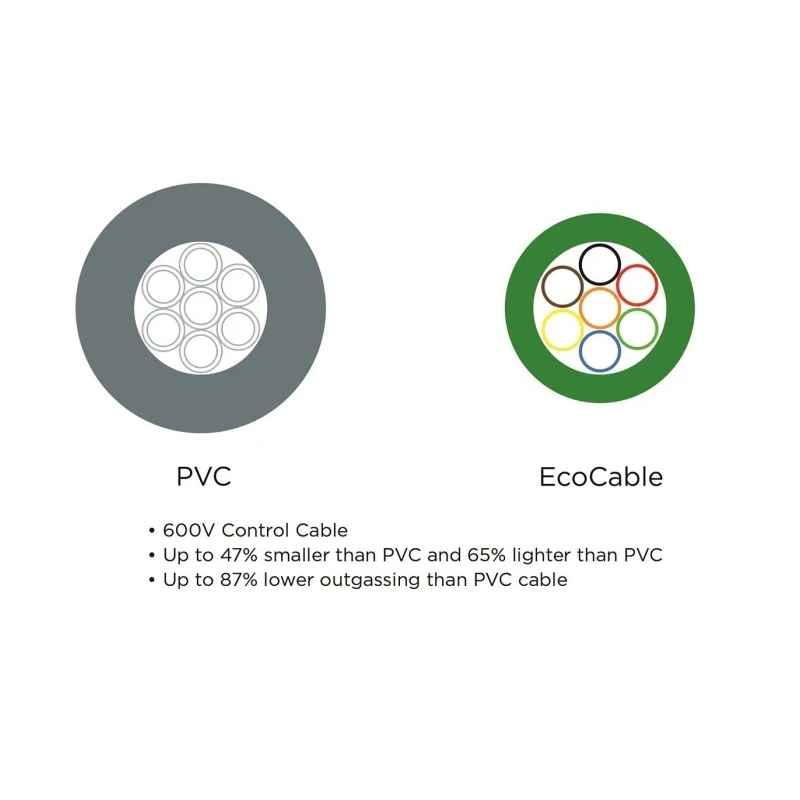

- Smaller and lighter than conventional PVC cables, aiding in easier installation and reduced weight load.
- Complies with UL, CSA, and CE standards ensuring quality and safety.
Product Description
Alpha Wire 77214 SL005 ECO Control Cable is a 3-core, 0.81mm² (18 AWG) screened control cable featuring a grey modified polyphenylene ether (mPPE) sheath designed for demanding industrial and automation applications. This 600 V cable, with a length of 30 meters, offers exceptional performance in environments requiring reliable control signaling between instruments and machines.
Constructed with tin copper wire conductors and reinforced with a Supra-Shield triple-layer aluminum/polyester/aluminum foil combined with a braided shield of tinned copper, the cable provides superior electromagnetic interference (EMI) protection. The mPPE jacket and insulation materials make the cable lightweight, smaller in diameter, and fully recyclable, contributing to environmentally responsible solutions without compromising durability.
This cable maintains operational integrity across extreme temperatures from -50°C to 105°C and offers excellent abrasion resistance and mechanical strength. It is halogen-free, enhancing fire safety by minimizing harmful emissions during combustion.
The EcoCable series complies with prominent safety standards including UL, CSA, and CE, making it suitable for industrial installations that follow strict compliance protocols. Its flexible design offers long flex life in machinery with constant motion or flexing, making it ideal for industrial automation and instrumentation sectors.
The cable's 3 conductors are color-coded black, brown, and red for easy identification. The nominal diameter is 6.12 mm with a jacket thickness of 0.81 mm, providing a robust yet compact cable design. Screening with Supra-Shield ensures effective reduction of EMI, crucial for sensitive signal transmission environments.
The cable is suitable for NFPA 79 and similar industrial control standards. Its use cases include power applications within automation, manufacturing, and process controls.
This Alpha Wire ECO Control Cable 77214 SL005 is a highly reliable, eco-conscious choice for industrial and commercial electrical wiring needs, combining strong performance with environmental responsibility. For more products in Control Cables, browse the comprehensive range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 600 volts, making it suitable for various industrial applications.
It can operate at a maximum temperature of 105°C, ensuring performance in high-temperature environments.
This model has a length of 30 meters, allowing for extended wiring applications in machinery.
The conductors are made of tin copper wire, providing effective conductivity and EMI shielding.
The outside diameter of this cable is 6.12 mm, which contributes to its compact design.
It features a modified polyphenylene ether (mPPE) sheath, which offers excellent mechanical strength and is halogen-free.
This control cable has 3 cores, color-coded black, brown, and red for easy identification.
Yes, it is a screened cable, utilizing Supra-Shield technology for superior electromagnetic interference protection.
It complies with UL, CSA, and CE standards, ensuring quality and safety for industrial installations.
The cable can operate at a minimum temperature of -50°C, making it suitable for extreme conditions.
The jacket thickness is 0.81 mm, providing a robust yet lightweight design.
The cable is halogen-free, enhancing fire safety by minimizing harmful emissions during combustion.
