RS PRO H07Z-K Series White 2.5 mm² Hook Up Wire, 13 AWG, 50 x 0.25 mm Core Strands, 100 m Length, Cross-Linked Low 763-7640

Free Delivery in India | Lowest Global Shipping Charges

RS PRO H07Z-K Series White 2.5 mm² Hook Up Wire, 13 AWG, 50 x 0.25 mm Core Strands, 100 m Length, Cross-Linked Low 763-7640

Name: RS PRO H07Z-K Series White 2.5 mm² Hook Up Wire, 13 AWG, 50 x 0.25 mm Core Strands, 100 m Length, Cross-Linked Low 763-7640
Brand: RS PRO
SKU: 104996
Price: 254.56 USD
Availability: InStock



Category Hook Up Wire Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Voltage	750V
Brand	RS PRO
CROSS SECTIONAL AREA	2.5mm²
Model	763-7640
Cable Length	100m
Series	H07Z-K
Outside diameter	3.25mm
Maximum Operating Temperature	90°C
Conductor Material	Copper
Cable Type	Single Core
Minimum Operating Temperature	0°C
Jacket Material	Cross-Linked Low Smoke
Jacket Colour	White
Fire Behaviour	suitable for areas where toxic fumes, smoke may threaten life or equipment, Low Smoke, Halogen Free
American Wire Gauge	13AWG
Number of Strands	50
Core Strands	50 x 0.25mm
Size of Strands	0.25mm

Key Features

The wire features a copper conductor for excellent electrical conductivity.
It is insulated with cross-linked low smoke halogen free material suitable for safety-conscious applications.
Rated for 750V voltage and operating temperatures ranging from 0°C to 90°C.
Meets standards BS EN 50525-3-41, Class 5 IEC 60228, IEC 60332-1-2, and RoHS compliant.
Designed for internal wiring in electronic equipment, control panels, and circuit boards.
White jacket color allows easy identification and wiring organization.
Suitable for industrial, electronic, automation, and electrical wiring applications.

Product Description

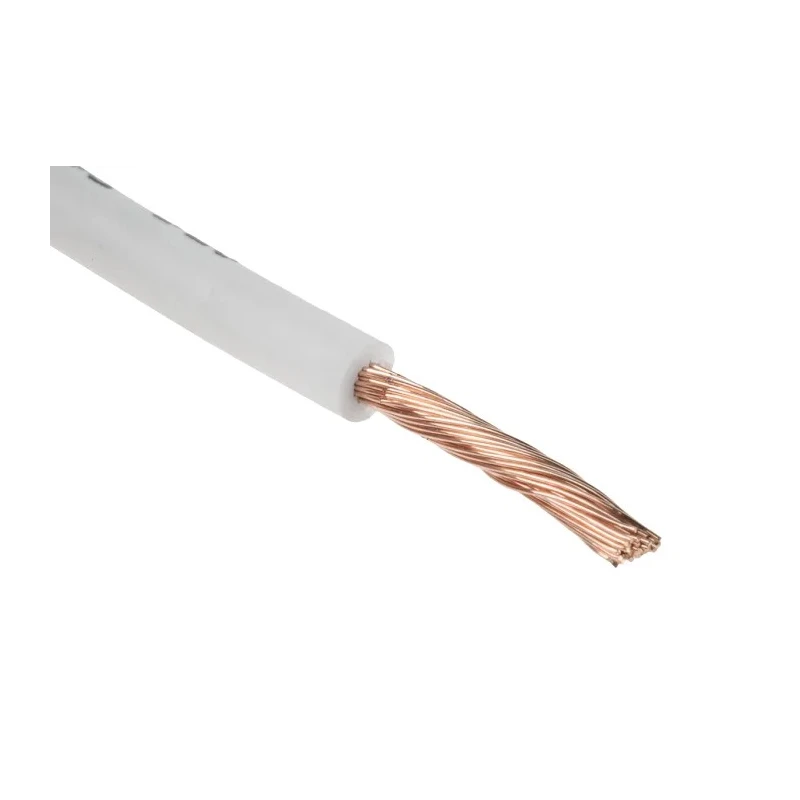

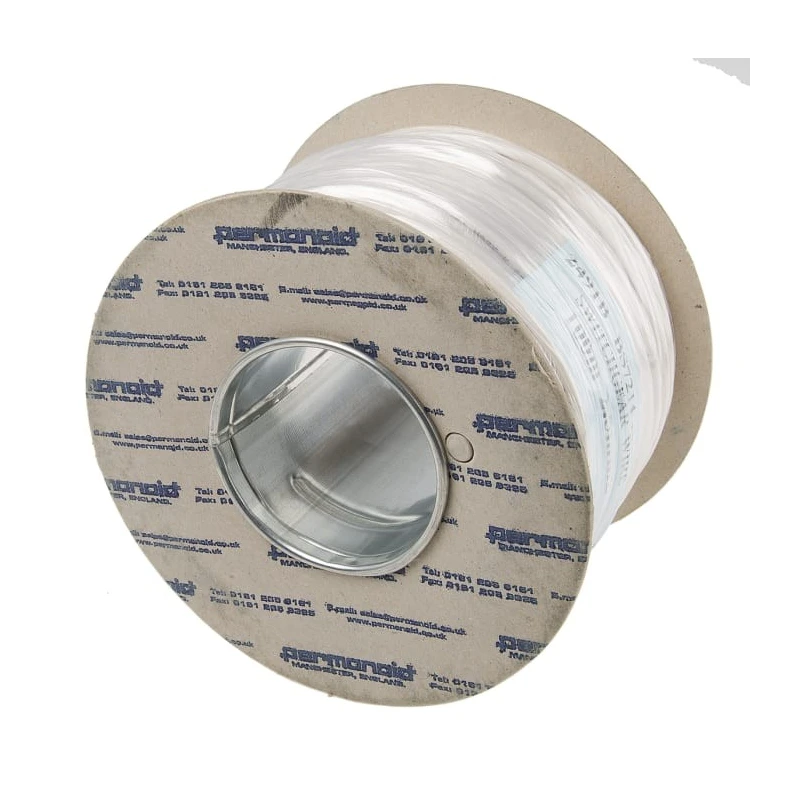

RS PRO 763-7640 Hook Up Wire is a high-quality, 2.5 mm² cross-sectional area single core wire featuring 50 strands of 0.25 mm copper core strands, insulated with a white cross-linked low smoke halogen free jacket. The cable length is 100 meters with an outside diameter of 3.25 mm and is rated for 750V with maximum operating temperatures of 90°C and minimum of 0°C.

This hook up wire meets stringent industry standards including BS EN 50525-3-41, Class 5 IEC 60228, IEC 60332-1-2, and is RoHS compliant, ensuring safety and reliability in various applications. It is intended primarily for internal wiring within electronic devices, circuit boards, control panels, and industrial automation setups where low smoke emission is critical.

The copper conductor ensures excellent electrical conductivity and durability, making it suitable for use in household appliances, industrial machinery, and communication equipment. The white jacket facilitates easy wiring management and clear identification in complex electrical assemblies.

Hook Up Wire like the RS PRO 763-7640 is essential for safe, efficient, and organized wiring solutions in electronics manufacturing, HVAC systems, laboratory instrumentation, and more. The cross-linked low smoke insulation enhances fire safety by reducing toxic fumes and smoke in case of fire, making it ideal for sensitive environments.

The product features a copper conductor for reliable electrical performance. Cross-linked low smoke halogen free insulation enhances safety. Complies with multiple national and international safety and performance standards.

Rated for operating voltages up to 750 volts and temperatures from 0°C to 90°C. The cable is 100 meters long with a 3.25 mm diameter. Designed primarily for internal wiring applications in electronics and automation. Explore more reliable wiring products and electrical accessories in the RS PRO range on EnvMart for industrial, commercial, and laboratory use.
