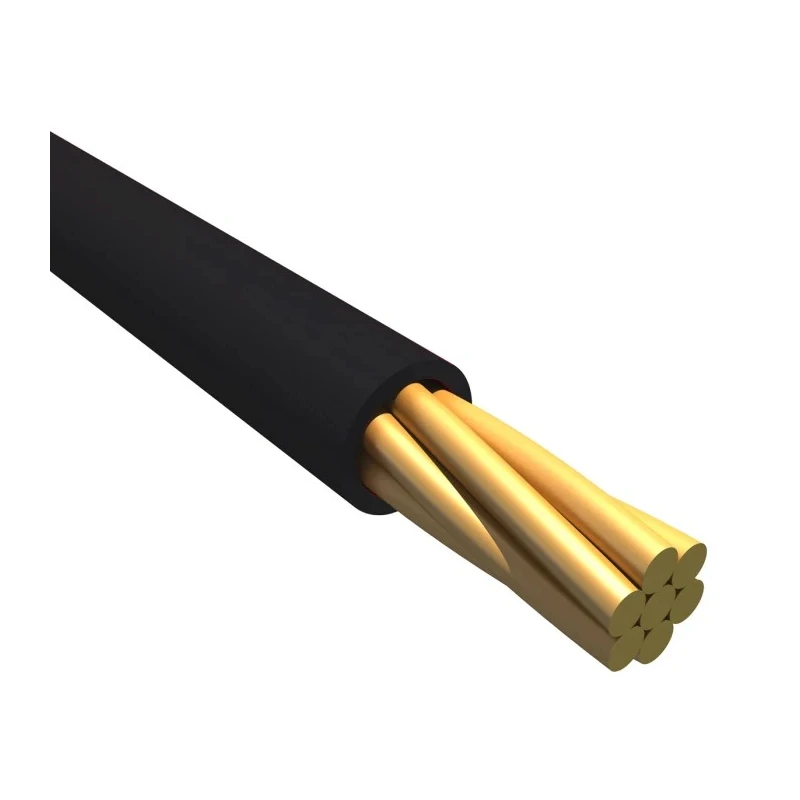

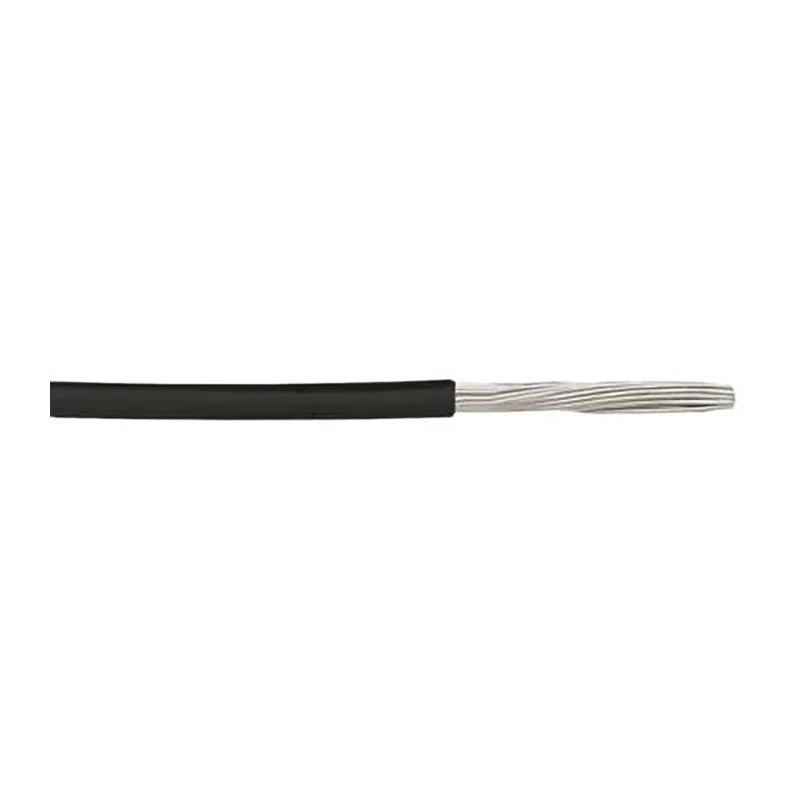

Alpha Wire Ecogen Ecowire Plus Series Black 2.1 mm² Hook Up Wire, 14 AWG, 19 x 0.36 mm strands, 30 m, 6829 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 2.1mm² |
| Model | 6829 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 2.41mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.012 Inch (0.30 mm) |
| Wire Diameter | 0.095 Inch (2.41 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 14 AWG (1.94 mm²) |
| Standards/Approvals | CE, ISO 6722, Reach Complaint, RoHS Complaint |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 14AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.36mm |
| Size of Strands | 0.36mm |
| Stranding | 19/27 (19 x 0.36) |
Key Features
- Black jacket provides flame retardant and low smoke halogen-free protection.
- Conductor is stranded copper with 19 strands, each 0.36 mm diameter.
- The insulation material is modified polyphenylene ether (mPPE) offering high dielectric strength and fluid resistance.
- Complies with CE, ISO 6722, RoHS, and REACH standards ensuring quality and environmental safety.
- Wire diameter is 2.41 mm with insulation thickness of 0.30 mm (0.012 inch).
- EcoWire Plus offers improved fluid resistance and is suitable for harsh industrial, solar, transportation, wind power, and medical applications.
- The product is 100% recyclable and contains no halogens or heavy metals.

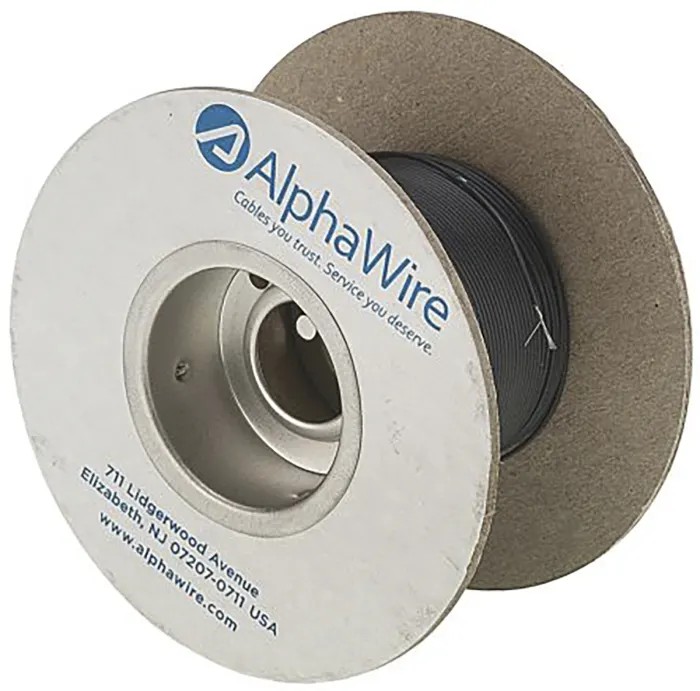

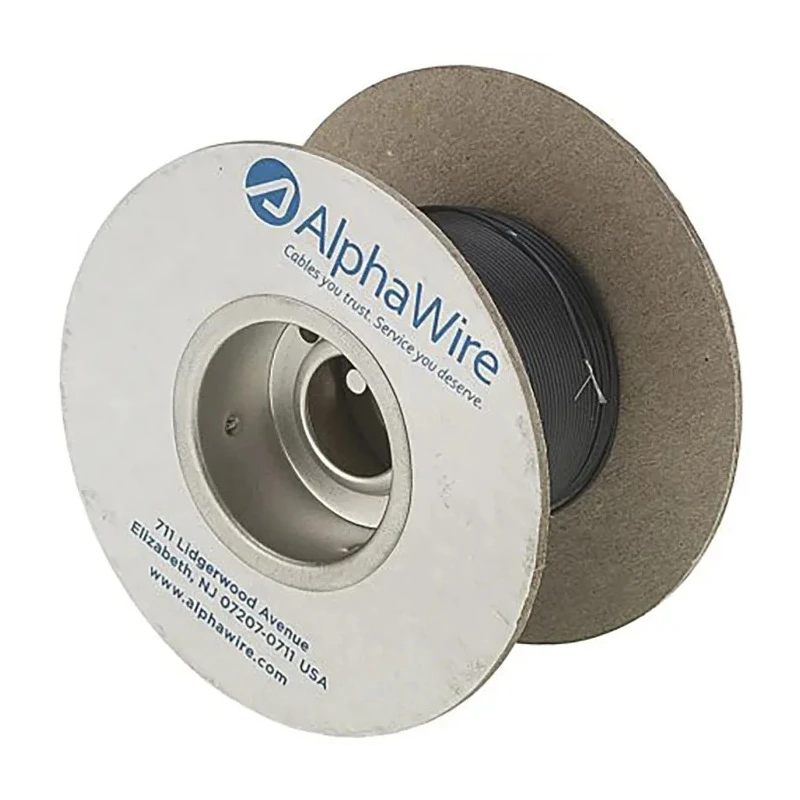

- Flexible 30 m length spool designed for factory automation and electrical wiring tasks.
Product Description
Alpha Wire 6829 BK005 is an Ecogen EcoWire Plus Series hook-up wire featuring black insulation, 2.1 mm² cross-sectional area, and 14 AWG conductor size. This wire is composed of stranded copper with 19 strands of 0.36 mm diameter each and measures 30 meters in length.
The insulation is made with modified polyphenylene ether (mPPE), a lightweight and tough thermoplastic that offers superior dielectric strength compared to traditional PVC. It also provides excellent resistance to hazardous fluids such as oils, solvents, and fuels, making it suitable for demanding factory environments.
The wire operates within a temperature range of -40°C to +110°C and carries a rated voltage of 300 V. It meets rigorous industry standards including CE, ISO 6722 thin wall and ultra-thin wall, RoHS, and REACH compliance, ensuring reliability and environmental responsibility.

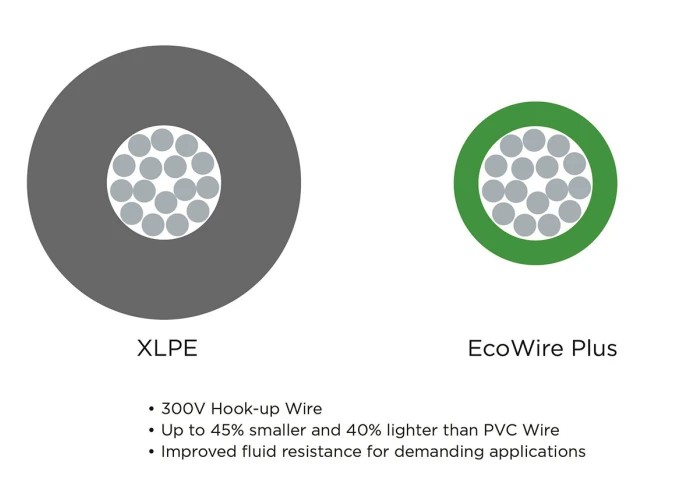

The EcoWire Plus series is designed to be flame retardant with low smoke halogen-free properties, reducing environmental impact in the case of fire. Its thin wall insulation reduces weight and size without compromising safety or performance.
Black jacket provides flame retardant and low smoke halogen-free protection. Conductor is stranded copper with 19 strands, each 0.36 mm diameter. Insulation offers excellent resistance to hazardous fluids and is fully recyclable.
Rated for 300 V voltage and a temperature range of -40°C to +110°C. Meets CE, ISO 6722, RoHS, and REACH standards. Wire diameter measures 2.41 mm with 0.30 mm thick insulation. Suitable for industrial, solar, transportation, wind power, and medical uses.
Eco-friendly with no halogens or heavy metals present. Flexible 30-meter length perfect for automation and wiring applications.
This wire is ideal for electrical engineers and technicians requiring high-performance, environment-conscious wiring solutions for a broad range of industrial applications, including factory automation, solar panels, transportation, wind power generation, and medical devices.
Explore more in the Electronics & Electricals category at EnvMart for high-quality wires and cables designed for professional use.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size is 14 AWG, which corresponds to a cross-sectional area of 2.1 mm², and it is made of stranded copper with 19 strands, each measuring 0.36 mm in diameter.
The maximum operating temperature for this wire is +110°C.
This wire has a voltage rating of 300 V.
The wire has an outside diameter of 2.41 mm and an insulation thickness of 0.30 mm (0.012 inch).
It complies with CE, ISO 6722, RoHS, and REACH standards, ensuring quality and environmental safety.
The temperature range for this model is -40°C to +110°C.
The insulation material is modified polyphenylene ether (mPPE), which offers high dielectric strength and fluid resistance.
This hook-up wire is provided in a length of 30 meters.
The wire is flame retardant and has low smoke halogen-free properties, reducing environmental impact in case of fire.
It is suitable for harsh industrial, solar, transportation, wind power, and medical applications.
This wire is 100% recyclable and contains no halogens or heavy metals, making it environmentally friendly.
The conductor is configured with 19 strands, each measuring 0.36 mm, resulting in a stranding of 19/27.
