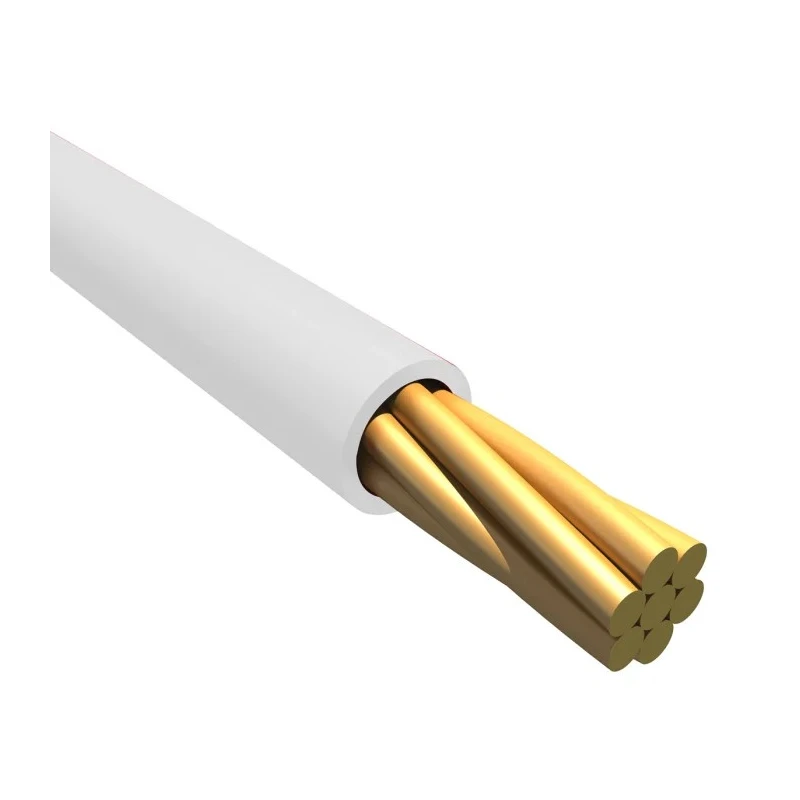

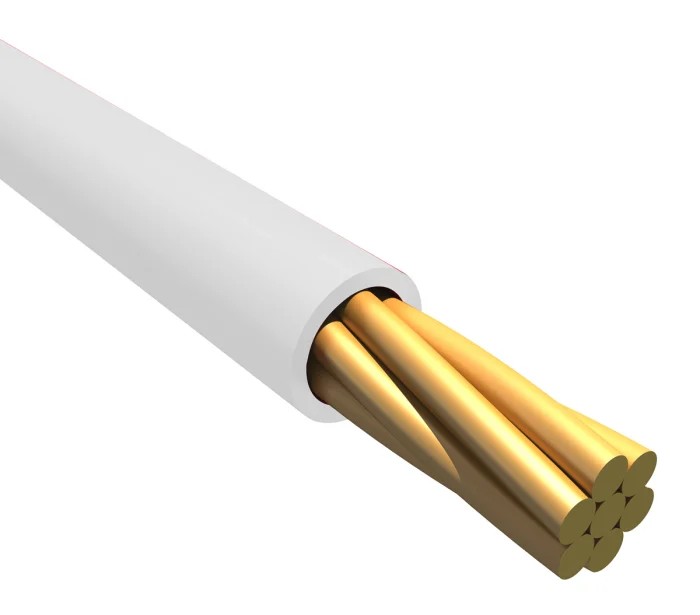

Alpha Wire Ecogen Ecowire Plus Series White 3.3 mm² 12 AWG Hook Up Wire, 19 x 0.46 mm Core Strands, 30 m 6830 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Plus Series White 3.3 mm² 12 AWG Hook Up Wire, 19 x 0.46 mm Core Strands, 30 m 6830 WH005

Name: Alpha Wire Ecogen Ecowire Plus Series White 3.3 mm² 12 AWG Hook Up Wire, 19 x 0.46 mm Core Strands, 30 m 6830 WH005
Brand: ALPHA WIRE
SKU: 104341
Price: 342.84 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Temperature range	- 40°C to +110°C
CROSS SECTIONAL AREA	3.3mm²
Model	6830 WH005
Cable Length	30m
Series	Ecogen Ecowire Plus
Outside diameter	3.05mm
Maximum Operating Temperature	110°C
Conductor Material	Copper
Insulation Thickness	0.015 Inch (0.38 mm)
Wire Diameter	0.120 Inch (3.05 mm)
Minimum Operating Temperature	-40°C
Conductor Size	12 AWG (3.08 mm²)
Jacket Material	Modified Polyphenylene Ether, Polyvinyl Chloride
Standards/Approvals	CE, ISO 6722, Reach Complaint, RoHS Complaint
Jacket Colour	White
Fire Behaviour	Flame Retardant, Halogen Free, Low Smoke Halogen Free
American Wire Gauge	12AWG
Number of Strands	19
Core Strands	19 x 0.46mm
Size of Strands	0.46mm
Stranding	19/25 (19 x 0.46)

Key Features

Constructed with stranded bare copper conductors for superior electrical performance.
Insulated with modified polyphenylene ether and PVC for excellent durability.
Rated for 300 V voltage and a maximum operating temperature of 110°C.
Designed flame retardant, halogen free, and low smoke halogen free for enhanced safety.
Meets CE, ISO 6722, RoHS, and Reach compliance standards.
Resistant to hazardous fluids including oils and solvents, suitable for demanding factory environments.
The mPPE insulation provides lighter weight and superior dielectric strength compared to PVC.
Ideal for industrial, solar, transportation, wind power, and medical applications.

Product Description

Alpha Wire 6830 WH005 Ecogen Ecowire Plus Series Hook Up Wire is a premium white single-core cable designed with 3.3 mm² (12 AWG) stranded copper conductors consisting of 19 strands each 0.46 mm in diameter, offering excellent flexibility and conductivity. This 30 meter length wire is insulated with a modified polyphenylene ether (mPPE) and PVC jacket, resulting in a flame retardant, halogen free, and low smoke halogen free product suitable for stringent industrial safety requirements.

This eco-conscious wire series improves upon standard EcoWire by offering enhanced resistance to fluids, higher temperature tolerance up to 110°C, and exceptional durability for demanding factory applications. The insulation is thinner yet stronger, providing superior dielectric strength and reducing overall cable weight.

The wire is rated for 300 V voltage and operates safely within a temperature range from -40°C to +110°C. Certification to CE, ISO 6722 thin and ultra-thin wall standards, RoHS, and REACH confirms its compliance with international quality and environmental standards.

Alpha Wire EcoWire Plus is particularly suited to industries requiring resistance to oils, fuels, solvents, and other hazardous substances, making it an excellent choice for solar, transportation, wind power, industrial, and medical sectors. Its 100% recyclable construction supports environmental sustainability efforts by replacing conventional XLPE insulated wiring.

Stranded bare copper conductors ensure reliable electrical performance. Modified polyphenylene ether and PVC insulation combine toughness with reduced thickness. Certified flame retardant and halogen free for enhanced safety compliance.

Compatible with high temperature and hazardous fluid environments. Achieves international quality and ecological standards including CE, ISO 6722, RoHS, and REACH. Lightweight and recyclable design supports environmental responsibility.

Versatile for diverse industrial, renewable energy, and medical applications.

This Hook Up Wire is available in a 30 m reel, providing ample length for various electrical wiring projects. Choose Alpha Wire Ecogen Ecowire Plus 6830 WH005 for a reliable, high-performance, and environmentally friendly wiring solution. Explore more wires and cables options at EnvMart for your industrial and electrical needs.
