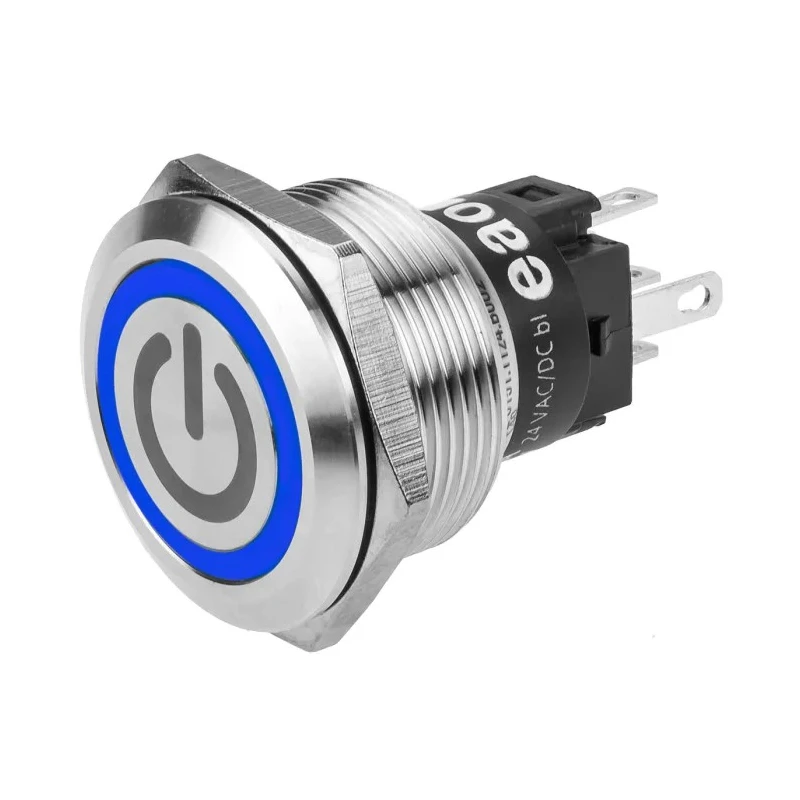

EAO 82 Series Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout Blue LED IP65 IP67 240V 82-6151.1123.B002



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-6151.1123.B002
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	60°C
Contact Configuration	CO
Switch Configuration	CO
Panel Cutout Size	22.3 mm
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Blue
Switch Operation	Momentary
Contact DC Voltage	240V dc
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Standby Symbol
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The switch operates momentarily with a CO contact configuration.
It has a vandal-resistant, impact-resistant design for robustness.
Blue LED illumination provides clear indication.
Gold-plated silver contacts ensure reliable low voltage and current performance.
Compatible with 22.3 mm panel cutout and solder terminal type.
Maximum operating temperature is 60°C.
The switch has an actuator with a flat style and length of 35.5 mm.
Offers excellent tactile feedback and long service life of over 1 million cycles.

Product Description

EAO 82-6151.1123.B002 illuminated momentary push button switch is a high-quality component designed for panel mounting with a 22.3 mm cutout. It features a blue LED to clearly indicate its operational status, suitable for use in demanding environments offering IP65 and IP67 ingress protection ratings.

The switch operates on both 240V DC and AC, making it versatile for various industrial and commercial applications. It utilizes a normally open (CO) contact configuration and offers gold-plated silver contacts, enhancing durability and performance especially in low voltage systems.

Constructed to be vandal-resistant and impact-resistant, this switch is ideal for exposed public areas such as ticketing and vending machines, as well as in factories, elevators, building access control, audio-video equipment, medical devices, and the food industry. The actuator style is flat with a length of 35.5 mm, and the device supports a solder terminal connection.

Designed to withstand a maximum operating temperature of 60°C, this push button switch provides excellent tactile feedback with a long service life exceeding 1 million cycles of operation. The product is RoHS compliant, ensuring adherence to international environmental standards.

Momentary operation with CO contact configuration. Blue LED illumination for clear indication. Panel mount design with 22.3 mm cutout. Vandal-resistant and impact-resistant construction. Gold-plated silver contacts for reliability.

Suitable for both 240V DC and AC applications. Flat actuator style, 35.5 mm length. Over 1 million operational cycles lifespan. Applications in industrial, public, and building security systems.

This push button switch is an ideal choice for industrial automation, control panels, and machinery requiring robust and reliable switch components. Browse more in the Push Button Switch category on EnvMart for related products and components.
