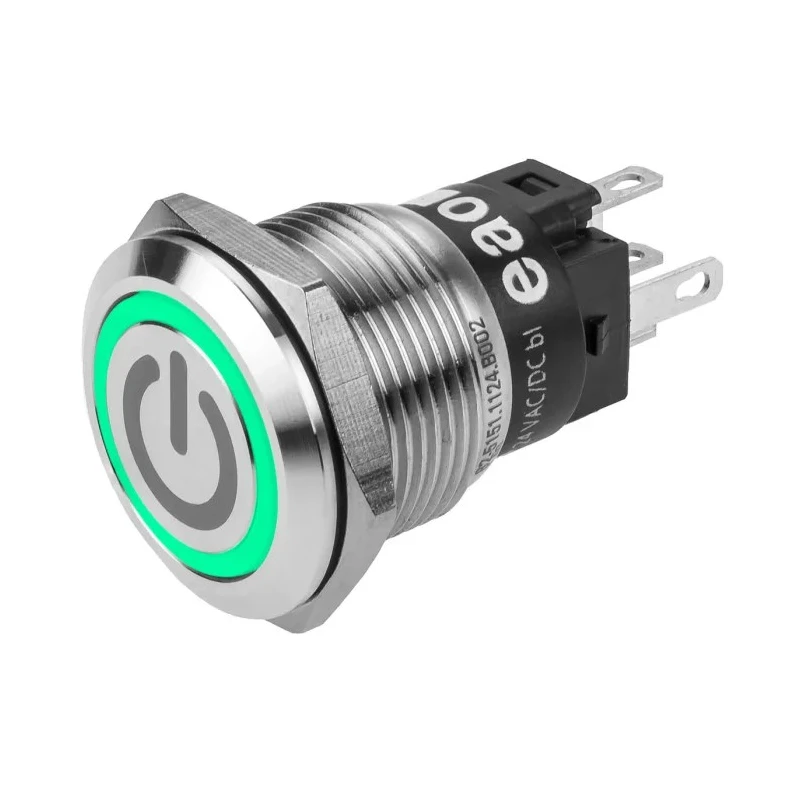

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19 mm Cutout, SPDT, Green LED, IP65 82-5151.1134.B002

EAO 82-5151.1134.B002 is an illuminated push button switch designed for momentary switching applications. It features a 19 mm panel cutout size with a sturdy round actuator. The SPDT contact configuration supports both normally open and normally closed contacts, ideal for precise control in electrical and automation systems.

The switch supports contact voltages of 240 V DC and 240 V AC and has a contact current rating of 3A, making it suitable for moderate power circuits. Its green LED indicator provides clear operational status visibility, enhancing user interface feedback.

With ingress protection ratings of IP65 and IP67, this switch is highly resistant to dust and water, suitable for exposed public and industrial environments requiring high durability and contamination resistance.

The device is vandal-resistant and impact-resistant, constructed with gold-plated silver contacts for improved conductivity and corrosion resistance, particularly beneficial for low voltage and low current switching tasks.

Engineered for longevity, the switch offers more than 1 million cycles of operation, benefiting industrial, HVAC, medical, and building management applications. It operates reliably across a temperature range from -30°C to 70°C, suitable for harsh and varied climates.

Common use cases include ticketing and vending machines, factory automation equipment, elevators, security and access control systems, audio/video equipment, food industry, and medical devices. Variants with corrosion and acid-resistant features are available on request, supporting specialized environments.

The switch is momentary and operates with a single-pole double-throw (SPDT) contact configuration. It is designed for panel mounting with a precise 19 mm cutout size and features a round actuator style. Rated for contact voltages of 240 V dc and 240 V ac, with a contact current of 3 A.

Ingress protection ratings IP65 and IP67 ensure dust and water resistance for harsh conditions. Includes vandal-resistant impact-resistant construction and gold-plated silver contacts for reliable electrical performance.

Capable of over 1 million operation cycles, ensuring a long service life. Suitable for use in exposed public areas, industrial machinery, elevators, building management, medical, and food industry. Operates within temperature ranges of -30°C to 70°C.

Green LED illumination provides visible status indication.

Explore more products like the EAO 82 Series Illuminated Push Button Switch in our Push Button Switches category at EnvMart for reliable industrial and electrical automation solutions.
