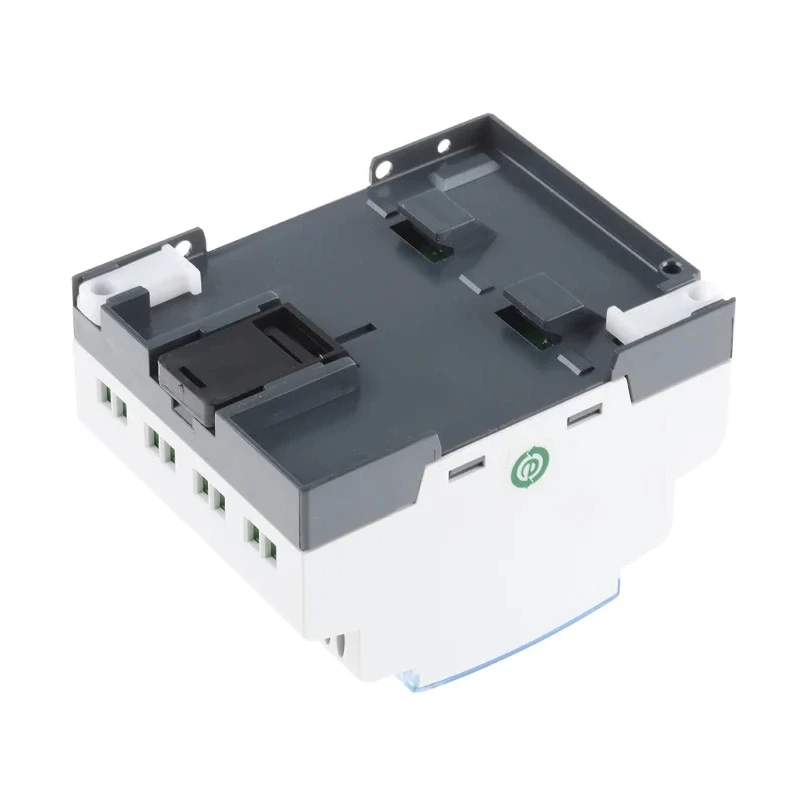

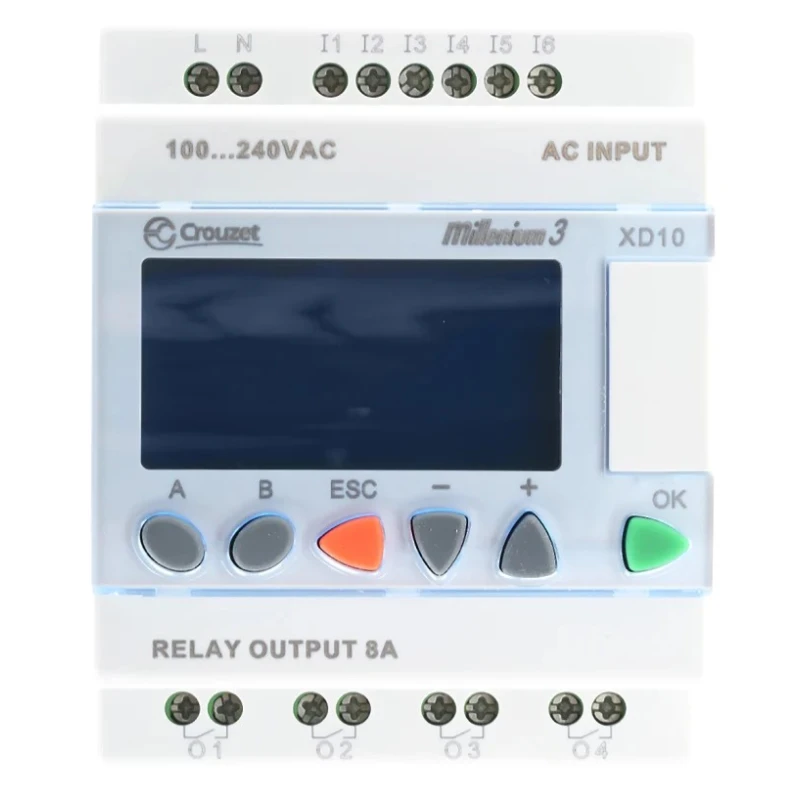

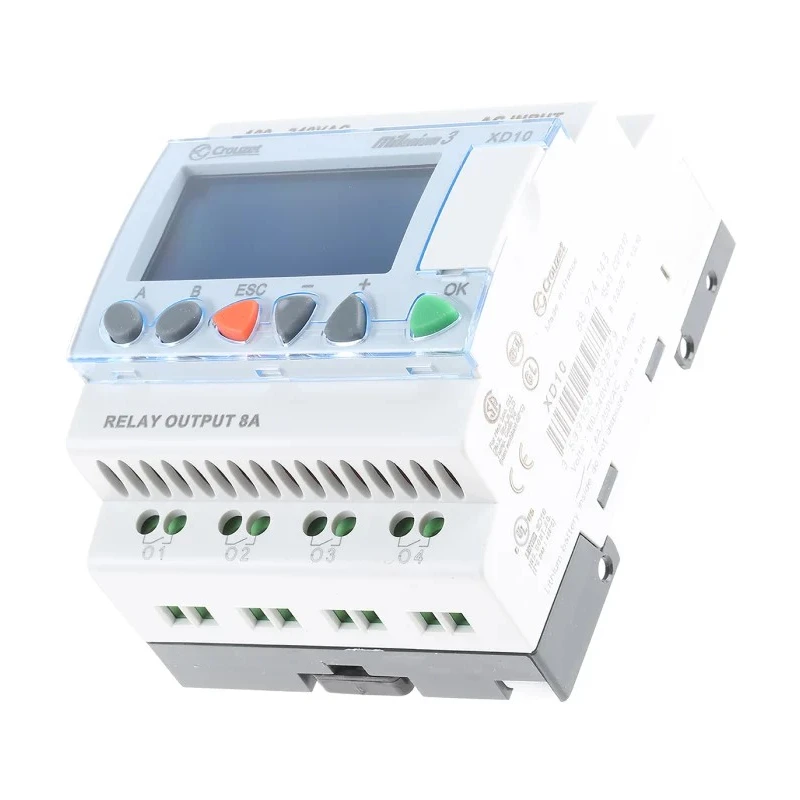

Crouzet Millenium 3 Series Logic Module 6-Input Digital Input 4 Outputs Relay Output 230V ac 8A 88974143

Crouzet 88974143 Millenium 3 Series Logic Module is an advanced programmable logic controller (PLC) designed for industrial automation systems requiring robust, reliable control and monitoring capabilities. It features 6 digital inputs and 4 relay outputs capable of switching up to 8A, making it suitable for a wide range of control tasks in manufacturing, process control, and automation environments.

The module operates on a 230V AC supply voltage and supports communication through both Serial and USB ports, facilitating flexible connectivity options. Its compact dimensions (100mm length x 71.2mm width x 68mm depth) and DIN rail mounting make it easy to integrate into control panels.

The integrated display offers 18 characters across 4 lines with scrolling text and bargraph capability for clear status feedback. Programming is accomplished via ladder logic, providing a familiar and powerful interface for automation engineers.

Designed to withstand industrial conditions, the device operates reliably within a temperature range from -20°C up to 55°C. It also includes a battery backup to retain program data during power outages.

The Millenium 3 series improves over previous generations by offering increased memory capacity, higher analogue input resolution (10-bit), and an enhanced display. Compliance with EN (IEC) 61000-6-2, 61000-6-3, 61131-2, and 61000-6-4 ensures electromagnetic compatibility and safety standards, making it suitable for demanding industrial environments.

Equipped with 6 digital inputs for precise automation control. Features 4 relay outputs supporting up to 8A current switching. 230V AC supply voltage for standard industrial power sources. Communication via Serial and USB ports for flexible connectivity.

18-character, 4-line display with scrolling and bargraph visualization. Ladder logic programming compatible with industrial standards. DIN rail mountable for streamlined panel installation. Wide operating temperature range of -20°C to 55°C for harsh environments.

Battery backup for program retention during power loss. Certified to relevant EN (IEC) electromagnetic compatibility standards.

This logic module is ideal for industrial automation applications including process control, manufacturing lines, and complex machinery control scenarios. It integrates seamlessly within larger control systems enabling enhanced automation and monitoring.
