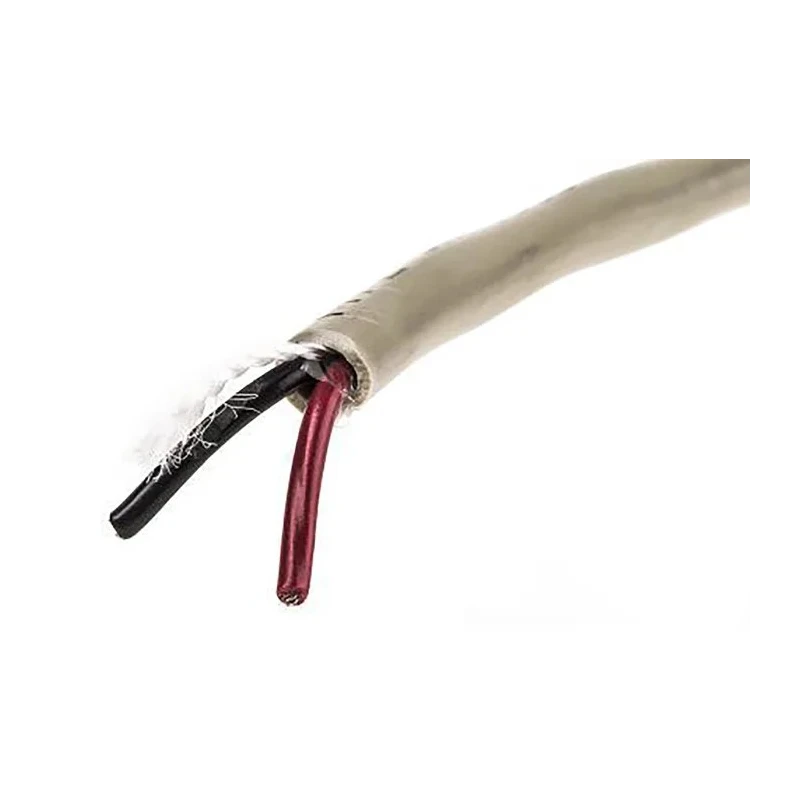

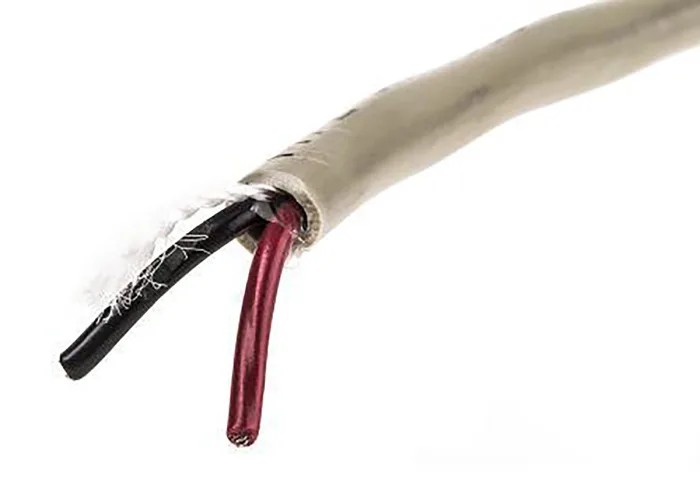

Alpha Wire Pro-Tekt Series Data Cable 0.23 mm² 2 Core 50 m Grey Polyvinyl Chloride PVC Sheath B953021 GE321

Alpha Wire B953021 GE321 Pro-Tekt Series Data Cable is a versatile and high-quality data cable with a cross-sectional area of 0.23 mm² and 2 cores, encased in a grey polyvinyl chloride (PVC) sheath. Measuring 50 meters in length, this cable supports a voltage rating of 300 V and is designed for industrial and commercial installations requiring durable and flexible cabling solutions.

The conductors are composed of stranded tin copper wire, which increases flexibility and resistance to mechanical fatigue. The sheath material is flame retardant PVC that provides UV and oil resistance, ensuring cable endurance in harsh environments. It operates reliably within a temperature range from -30°C to 105°C.

Alpha Wire’s Pro-Tekt series features a rounded cable design with an outside diameter of approximately 3.94 mm, ideal for installation in restricted spaces. The cable complies with several international standards, including CE, CSA, and UL certifications, endorsing its compliance with flame and safety regulations. Its construction includes 7 strands of 0.20 mm diameter wire per conductor strand, contributing to the cable’s flexibility and performance.

This cable is designed for a wide range of uses including industrial automation, medical devices, aerospace, petrochemical, and commercial electronics. It is suited for environments requiring low-noise, multiconductor cabling for data and power transmission. The Pro-Tekt series can be connected efficiently to switches, plugs, sockets, and connectors due to its tinned copper wiring.

Stranded conductors increase cable flexibility and longevity. Operating temperature range from -30°C to +105°C suits varied industrial settings. Flame retardant, UV and oil resistant PVC sheath enhances durability. Compliance with CE, CSA, UL standards ensures safety and quality.

Small diameter and rounded design allow use in confined spaces. Color-coded conductors support easy identification during installation. Suitable for combining data, power, coaxial and AV cores within one cable.

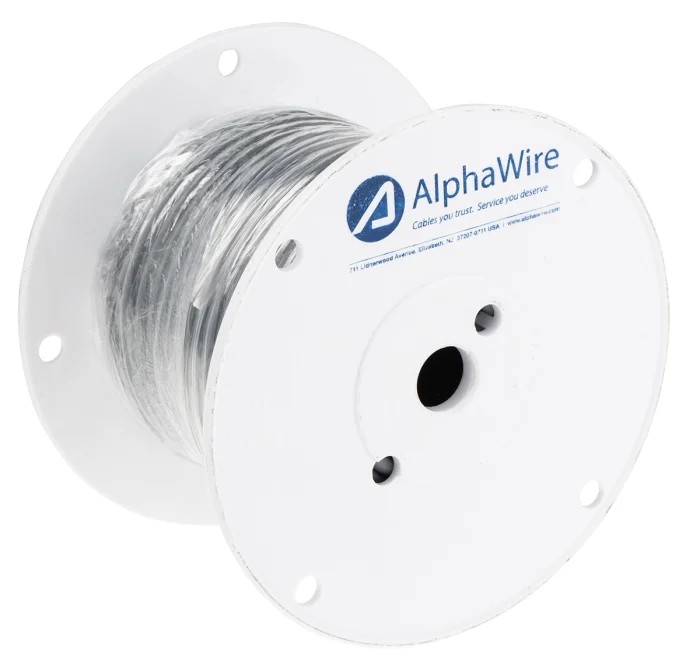

The package contains one roll of 50 meters Alpha Wire Pro-Tekt Series Data Cable. This cable supports reliable performance for demanding applications in the European marketplace and beyond. For additional industrial, electrical, and data cabling needs, explore the large selection of cables and wires available.
