Air Quality Detector OC-300
Specifications
| Resolution | 1microgram/cubicmeter and 1 PC/L |
|---|---|
| Measuring range | 0-9999microgram/cubicmeter and 0-99999999 PC/I |
| Sensor | Ultra high sensitivity optical sensor |
| Power Supply | 4000mArechargeable lithium battery |
| Body Material | ABS+PC |
| Flow Rate | 2.83L/min. (0.1cfm) |
| Interface | RS232-USB |
| Protection grade | IP65 |
| Working Environment | Working temperature 5 -45 degree C| working humidity Less Than -90% RH| non-condensing |
| Light Source | Laser DIode (Greater Than 100000 hours MTBF) |
| Gas Detection | with 1-3 gas type (optional) |
| Particle size | 0.5 micrometer| 1.0 micrometer| 2.5 micrometer| 10 micrometer |
| Size & Weight | 2208555mm(LWH)| 0.5kg (net Weight) |
| Explosion proof grade | Exia IICT4 |
| Accessory | Box| data cable| charger| CD |
| Temperature/humidity inspection | Temperatur 0-120 degree C| Humidity 0-100%RH |
| Verification Standard | according to GB/T16292-1996 and ISO 14644-1 |
| Sample time | 30 s |
| Measuring mode | quantity mode (unit of PC/L) and quality mode (unit of microgram/cubimeter) |
| Detect methods | time detecting or circle detection is adjustable |
| Data storage function | real time storage or timing storage is adjustabl torage Capacity of 100000 group data| can check the history data on the counter screen |
| Print mode | optional micro-printer| can reset the print period and print mode |
Key Features
- Semiconductor technology of ultra-low power 32-bit microprocessor, 24-bit ADC acquisition chip, so with the high accuracy. Different mode adjustable: quantity detecting mode and quality detecting mode. Data logger function, the capacity is 100000 group data.
- 3.5-inch IPS industrial grade colour screen, displaying each parameter.
Product Description

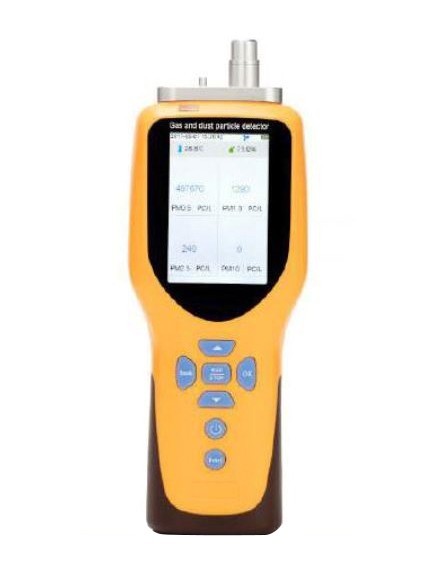

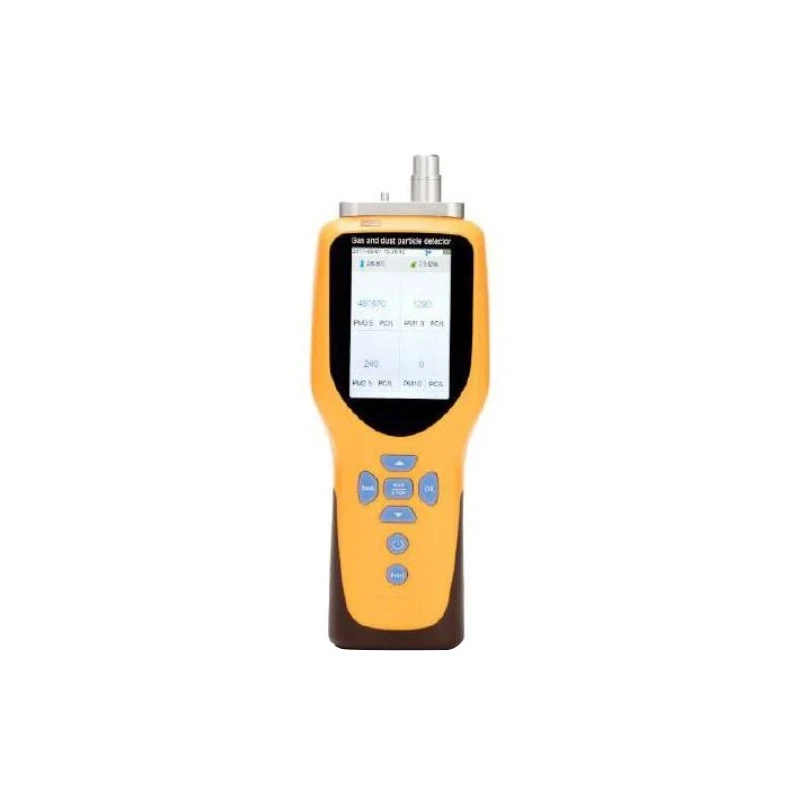

OC-300 air quality detector used to detect the air quality for the 4 particle channels: 0.5um, 1.0um, 2.5um and 10um, with two detection mode: Quality inspection (unit of the ug/m3) and Quantity inspection (unit of the PC/L) Also, with the Temperature and Humidity measurement, optional function of the gas concentration detection, it can add 3 sensors. for gas detection. It is with the data logger function to record the historic inspection data.Applications:The Portable air quality detector can be widely used in the disease control center, health. supervision, environmental monitoring, public area, family and other environment were need to detect the air quality detection.
- Channel sizes:0.5um, 1.0um, 2.5um, 10um.
- Support the Temperature/ Humidity sensor.
- With the function of overvoltage protection, overcharge protection, short circuit protection.
- Optional function of micro printer to print the measurement data.
Frequently Asked Questions
The OC-300 air quality detector supports two detection modes: Quantity inspection (measured in PC/L) and Quality inspection (measured in µg/m³).
The OC-300 can measure particle concentrations from 0 to 9999 µg/m³ and 0 to 99,999,999 PC/L.
The OC-300 features a data logger that can store up to 100,000 groups of data, allowing you to check historical inspection data directly on the device's screen.
Yes, the OC-300 has an IP65 protection grade, making it suitable for various environments, including outdoor use, as it is protected against dust and low-pressure water jets.
The OC-300 can detect particles of sizes 0.5 µm, 1.0 µm, 2.5 µm, and 10 µm.
The OC-300 allows for the addition of 1 to 3 optional gas sensors for gas concentration detection, enhancing its functionality.
The OC-300 is powered by a 4000mA rechargeable lithium battery, ensuring long-lasting performance.
Yes, the OC-300 has an optional micro-printer that allows you to print measurement data. You can also adjust the print period and mode.
The OC-300 operates effectively within a temperature range of 5°C to 45°C and can withstand humidity levels of less than 90% RH (non-condensing).
To inquire about purchasing the OC-300, please contact our sales team through the provided contact options on our website.
