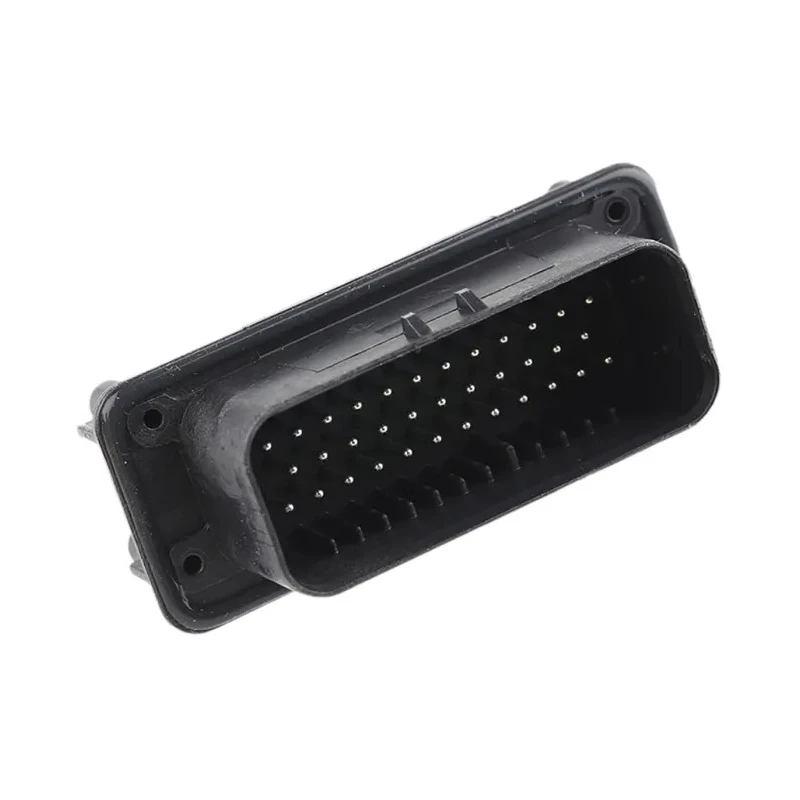

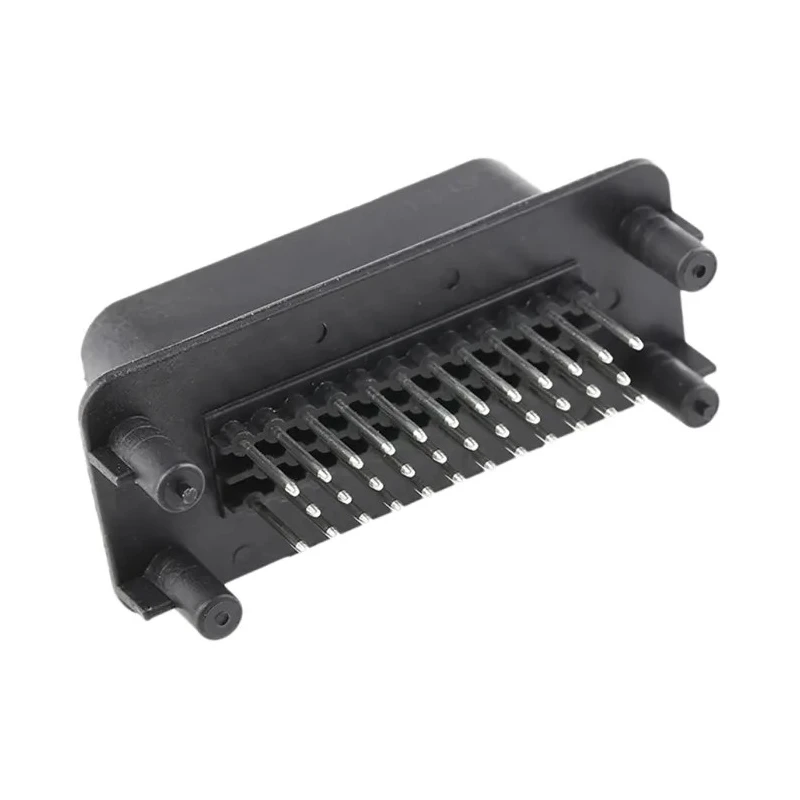

TE Connectivity Ampseal Automotive Connector Male Black Through Hole 35 Way Solder Termination 776231-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 8A |
| Height | 34.25mm |
| Model | 776231-1 |
| Depth | 32.1mm |
| IP Rating | IP67, IP69K |
| Width | 32.1mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Tin |
| Number of Contacts | 35 |
Key Features
- Supports 35 contacts with solder type termination for secure connections.
- Designed as a male connector with through hole mounting mechanism.
- Rated for 8A current capacity suitable for automotive electrical applications.
- Constructed with thermoplastic housing and tin-plated contacts for durability.
- IP67 and IP69K rated ensuring resistance to dust, high pressure, and temperature water ingress.
- Operating temperature range from -40°C to 105°C for diverse environments.
- Series type Ampseal connector known for ruggedness in harsh automotive and industrial environments.
- Ideal for automotive use including trucks, buses, construction, agriculture, marine, and two-wheelers.
Product Description
TE Connectivity 776231-1 Ampseal automotive connector male is a high-quality 35-way electrical connector designed for demanding automotive and industrial applications. It features solder termination and through-hole mounting for robust and secure PCB attachment. The connector housing is made from durable thermoplastic material and contacts are tin plated, ensuring reliable electrical performance and longevity.
Designed for currents up to 8 amperes, this connector supports multiple rows and contacts, making it suitable for complex automotive electrical systems. It is IP67 and IP69K rated, offering superior protection against dust ingress and high pressure, high temperature water jets, making it ideal for harsh environments where ruggedness and seal integrity are critical.
Operating efficiently within a wide temperature range from -40°C to 105°C, the TE Connectivity 776231-1 is excellent for off-road use, emergency services, marine, agriculture, and various two-wheeler and heavy vehicle applications. Its Ampseal series legacy ensures resilience under vibration and shock, common in automotive applications.
The compact dimensions of 34.25 mm height and 32.1 mm width and depth allow seamless integration on PCBs. This male connector does not include a cord and is specifically built for high standards and durability requirements.
Supports 35 contacts with solder termination ensuring electrical security. Thermoplastic housing is robust and lightweight for long-term usage. Meets IP67, IP69K ratings to withstand severe environmental conditions. Stable performance across a broad temperature range suitable for tough conditions.
Designed for current rating of 8A common in automotive electrical systems. Suitable for off-road, construction, agricultural, marine, and emergency vehicle applications. Provides excellent resistance against vibration and mechanical shock.
Mount type through hole for reliable PCB installation. Contact plating in tin prevents corrosion and maintains conductivity.
This product is ideal for automotive and industrial users searching for a reliable, durable, and industrial grade connector. Browse more automotive connectors at EnvMart for compatible parts and accessories to complete your electrical systems.
Explore more products in our Automotive Electrical Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 8A, making it suitable for automotive electrical applications.
The connector has a height of 34.25 mm and a width and depth of 32.1 mm, allowing for compact integration on PCBs.
It operates efficiently within a temperature range from -40°C to 105°C, suitable for diverse environments.
This model features solder termination, ensuring secure and reliable electrical connections.
It is rated IP67 and IP69K, providing excellent resistance to dust ingress and high-pressure water jets.
This connector supports 35 contacts, designed for complex automotive electrical systems.
The housing is constructed from thermoplastic material, which contributes to its durability.
It utilizes a through hole mounting mechanism for robust and secure PCB attachment.
It is ideal for automotive applications including trucks, buses, construction, agriculture, marine, and two-wheelers.
The contacts are tin-plated, which helps prevent corrosion and maintain conductivity.
It is designed to provide excellent resistance against vibration and mechanical shock, making it suitable for harsh environments.
The connector is manufactured in India.
