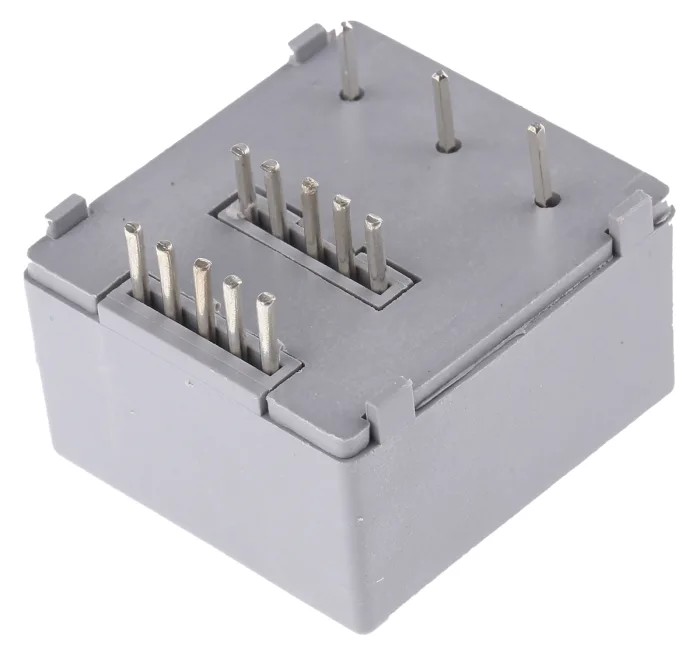

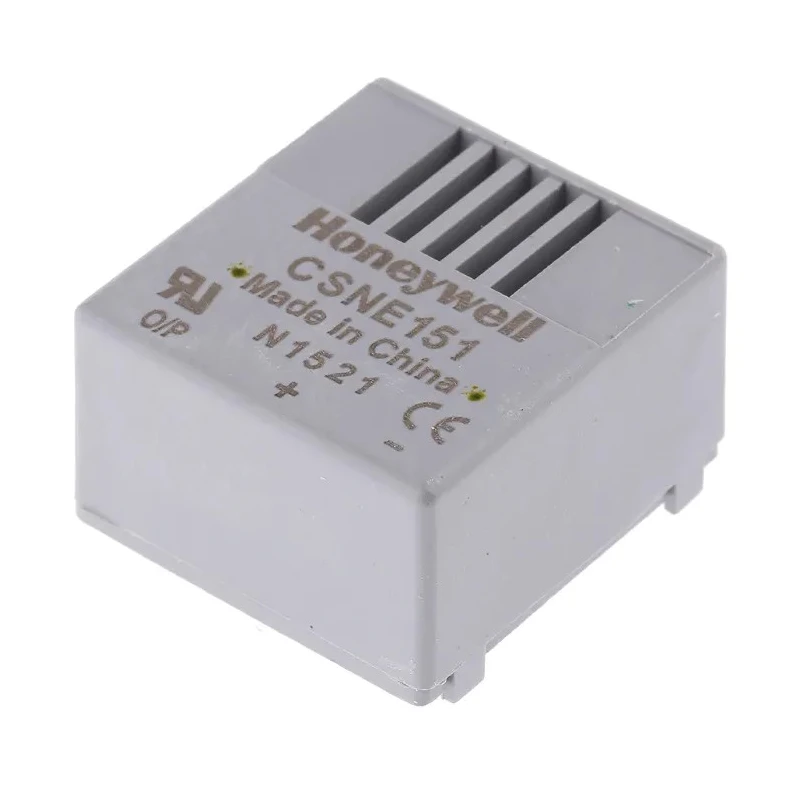

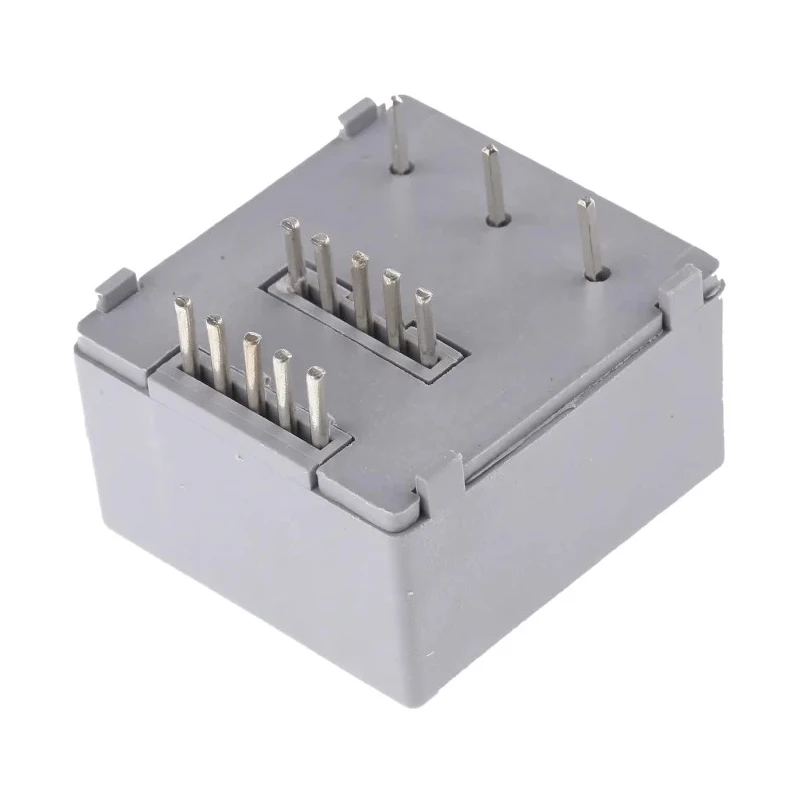

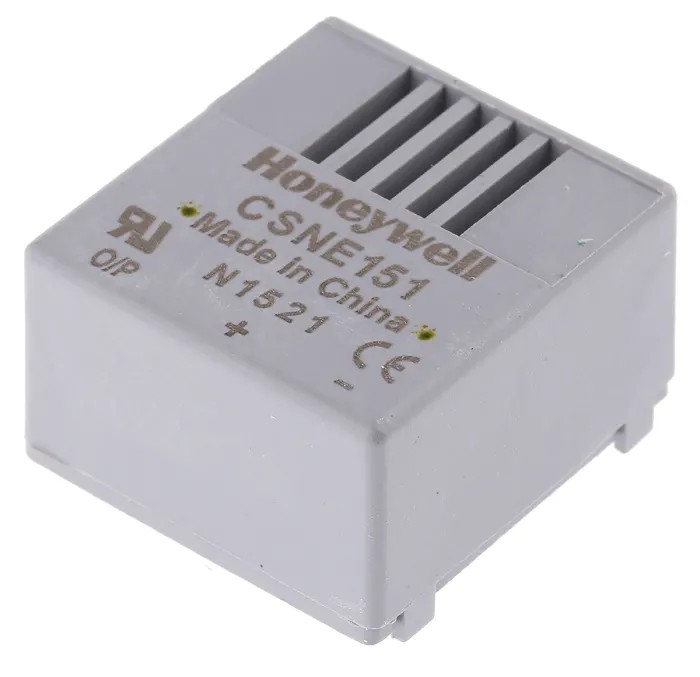

Honeywell Technologies CSN Series Current Sensor 36 A 1:1000 to 1:5000 Turns Ratio 15V CSNE151
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Model | CSNE151 |
| Mount Type | PCB |
| Series | CSN |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Secondary current | 25, 50mA |
| Terminal type | 3-Pin |
| Supply Voltage | 15V |
| Primary Current | 36A |
| Minimum Operating Frequency | 0Hz |
| Maximum Operating Frequency | 150kHz |
| Turns Ratio | 1:1000 to 1:5000 |
| LEM LA25-NP Series Current Transformer 36 A 15VBrand | LEM |
| Honeywell Technologies CSN Series Current Sensor 36 A 1 | 1000 to 1:5000 15V |
Key Features
- Provides isolated measurement of AC and DC currents using hall effect and null balance method.
- Output is a balancing current perfectly mirroring primary current, convertible to voltage through resistor.
- Designed for high current and multi-range applications on PCB mounts.
- Operating temperature range from 0°C to 70°C ensuring stable performance.
- Maximum operating frequency of 150 kHz supports varied signal monitoring.
- Equipped with 3-pin terminals for reliable electrical connections.
- Plastic Bayblend KU1468 UL94-VO casing ensures durability and electrical safety.
- Suitable for industrial automation, process control, and electrical monitoring applications.
Product Description
Honeywell Technologies CSNE151 Current Sensor is a high precision device designed for isolated measurement of both AC and DC currents up to 36 A. Utilizing hall effect and null balance methods, it delivers a balancing current output directly proportional to the primary current but reduced by the turns ratio ranging from 1:1000 to 1:5000, converting current measurement into voltage signals when passed through a resistor.
This sensor features a robust plastic Bayblend KU1468 UL94-VO case providing excellent electrical insulation and environmental protection suitable for PCB mounting. Its 3-pin terminal configuration ensures reliable electrical connectivity. The supply voltage is rated at 15V, making it compatible with a wide range of electronic systems.
Operating temperature ranges from 0°C to 70°C allowing it to function reliably in typical industrial environments. It supports operating frequencies up to 150 kHz, ideal for various signal processing applications.
The sensor’s multi-range capability enhances flexibility by allowing current sensing adjustments through multiple primary turns, enabling measurements up to 36A with 5 primary turns and up to 43A with 7 turns.
This product is used extensively in industrial automation systems, electrical process control, and current monitoring applications requiring high accuracy and durability. Isolated AC and DC current measurement up to 36 A using hall effect technology.
Flexible turns ratio from 1:1000 to 1:5000 for varied measurement ranges. Robust plastic housing compliant with UL94-VO standards for electrical safety. 3-pin terminal type for secure electrical connections. Wide operating temperature range of 0°C to 70°C.
Supports frequencies up to 150 kHz for dynamic current sensing. Suitable for PCB mount installations in industrial environments. Multi-range measurement with configurable primary turns. Manufactured in China. Explore more Current Transformers and sensors available on EnvMart for precise industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current sensor can measure a maximum primary current of 36 A.
The supply voltage required for this model is 15V.
The operating temperature range for this sensor is from 0°C to 70°C.
The turns ratio of this current sensor ranges from 1:1000 to 1:5000.
This model is designed for PCB mounting.
The maximum operating frequency of the CSNE151 is 150 kHz.
It features a 3-pin terminal configuration for reliable electrical connections.
The secondary current output can be either 25 mA or 50 mA.
This current sensor is suitable for industrial automation, process control, and electrical monitoring applications.
The casing of this model is made from plastic Bayblend KU1468, compliant with UL94-VO standards for electrical safety.
Yes, this current sensor is designed for isolated measurement of both AC and DC currents.
Key features include isolated measurement of AC and DC currents, a robust plastic housing, and multi-range capability with configurable primary turns.
