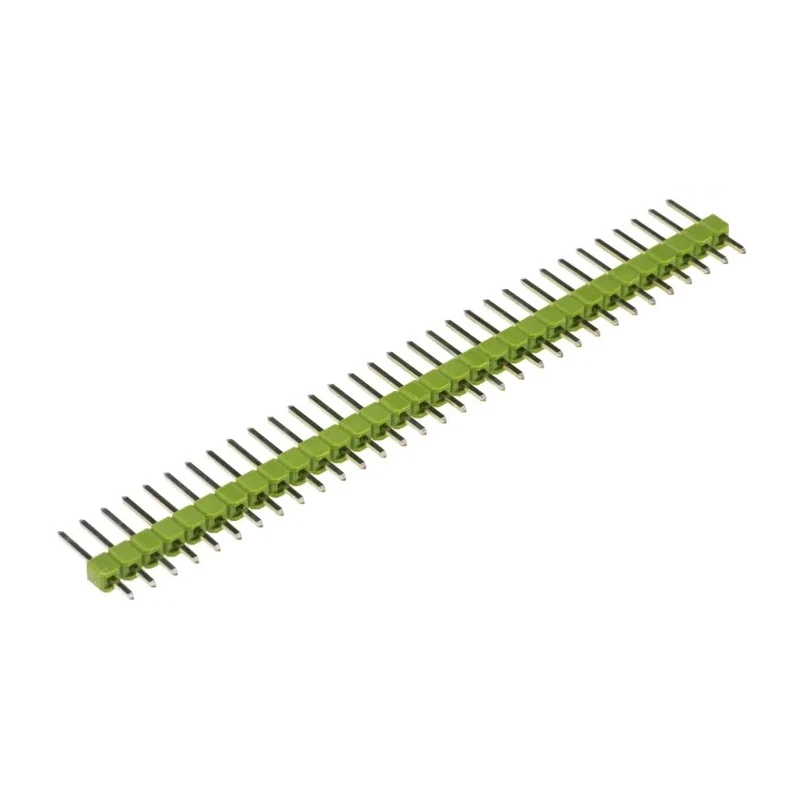

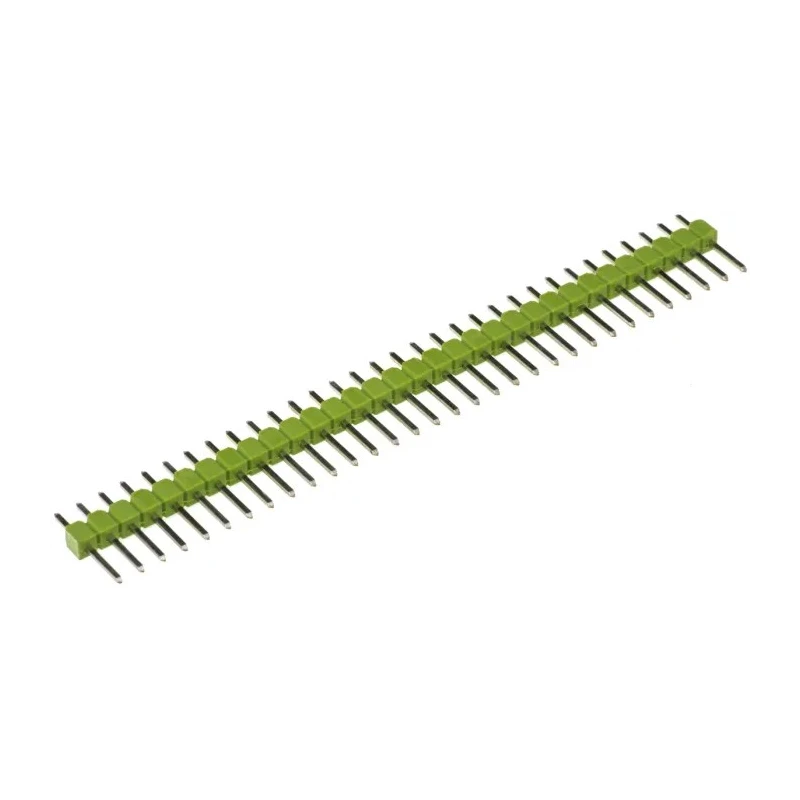

Euroind AMPMODU MOD II Series Straight Through Hole Pin Header 32 Contacts 2.54mm Pitch 1 Row Unshrouded 3A 3-826936-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Euroind |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- The pin header supports a current rating of 3 amperes.
- It is constructed with thermoplastic housing for durability.
- Contacts are made of phosphor bronze with tin plating for corrosion resistance.
- Mount type is through hole with a straight orientation for secure PCB mounting.
- Operating temperature ranges from -65°C to 105°C for versatile applications.
- Features male contact gender with solder termination type.
- The tail pin length is 3.2 mm and mating pin length is 5.8 mm.
- The AMPMODU MOD II series is a reliable and economical interconnect system suitable for industrial automation.
Product Description
TE Connectivity 3-826936-2 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality interconnect component designed for board-to-board and wire-to-board connections with 32 contacts arranged in a single row and a 2.54 mm pitch.
This unshrouded pin header includes a thermoplastic housing and phosphor bronze contacts plated with tin, providing reliable electrical performance and durability in demanding environments.
The component supports a current rating of 3 amperes and is mounted through hole with a straight orientation, making it suitable for various PCB assembly applications. Its operating temperature range is from -65°C to 105°C, allowing use across diverse industrial, automotive, telecommunications, and medical instrument applications.
The pins feature a tail length of 3.2 mm for solder termination and a mating pin length of 5.8 mm, ensuring secure and consistent connector engagement. AMPMODU MOD II series pin headers are versatile breakaway types, enabling customization to different sizes, which helps reduce installation times and labor costs.
This pin header is ideal for use in industrial automation systems, test equipment, storage devices, and consumer appliances where reliable electrical connections are critical. The pin header supports a current rating of 3 amperes.
It is constructed with thermoplastic housing for durability. Contacts are made of phosphor bronze with tin plating for corrosion resistance. Mount type is through hole with a straight orientation for secure PCB mounting.
Operating temperature ranges from -65°C to 105°C for versatile applications. Features male contact gender with solder termination type. The tail pin length is 3.2 mm and mating pin length is 5.8 mm. The AMPMODU MOD II series is a reliable and economical interconnect system suitable for industrial automation.
Designed as breakaway headers which can be segmented to required sizes to save installation time. Common applications include automotive controls, telecommunications, medical instruments, and industrial equipment. Browse the Electronics Components category on EnvMart for more high-quality PCB connectors and wire housing solutions from top brands.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3 amperes.
The contacts are arranged with a pitch size of 2.54 mm.
It operates within a temperature range of -65°C to 105°C.
The housing is made of thermoplastic, and the contacts are constructed from phosphor bronze with tin plating for corrosion resistance.
This model features 32 contacts arranged in a single row.
It utilizes a solder termination type for secure connections.
The tail pin length is 3.2 mm.
The mating pin length is 5.8 mm.
It supports through hole mounting with a straight orientation.
It is suitable for various applications including industrial automation, automotive controls, telecommunications, and medical instruments.
This model is unshrouded, allowing for easy access to the contacts.
It supports board-to-board and wire-to-board connector systems.
