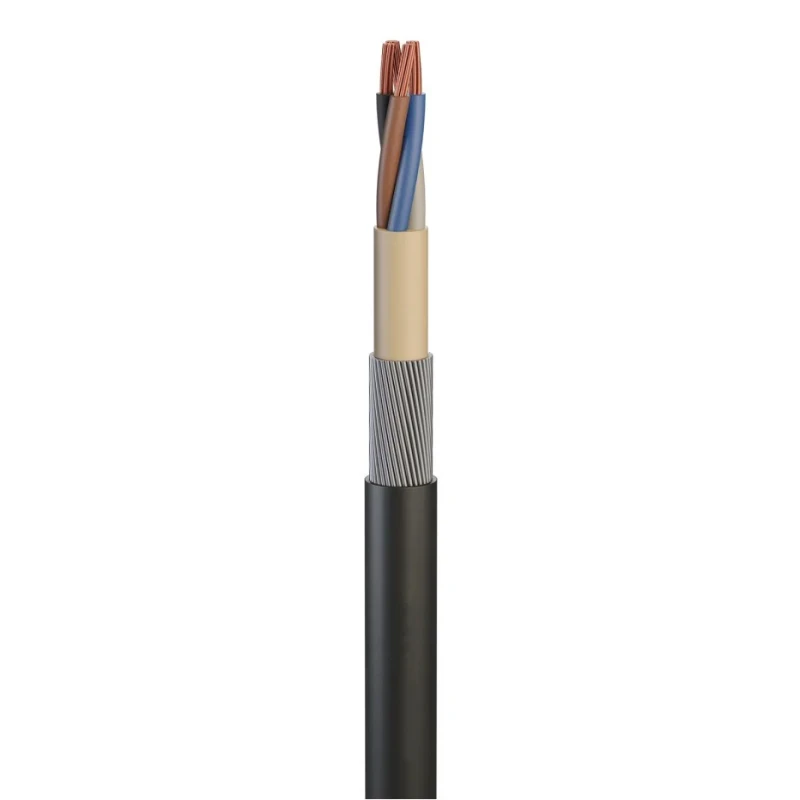

RS PRO 3 Core Power Cable Cross Linked Polyethylene 600V 16mm² Copper Conductor Single Wire Armoured H6943XL7
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 600V |
| Brand | RS PRO |
| Model | H6943XL7 |
| Series | H6943XL7 |
| Outside diameter | 20.4mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 3 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked Polyethylene |
| Standards/Approvals | BS EN 60228 |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 1.70mm |
| Size of Strands | 1.70mm |
| Cable CSA | 16mm² |
Key Features
- The cable has 3 stranded copper conductors with a cross-sectional area of 16mm² each.
- It features a galvanized steel wire armoured construction for superior mechanical protection.
- The insulation is thermosetting XLPE providing excellent dielectric strength and corrosion resistance.
- The cable jacket is made of durable cross linked polyethylene suitable for indoor, outdoor, and underground installations.
- The cable has an outside diameter of 20.4mm and supports a minimum operating temperature of -15 °C.
- Complies with BS EN 60228 standards for conductor quality and construction.
- Suitable for heavy duty industrial, construction, railway, and power network applications.
- Provides protection against physical damage and ensures reliable power supply under harsh conditions.
Product Description
RS PRO H6943XL7 3 Core Power Cable is a high-quality steel wire armoured (SWA) cable designed for industrial, construction, railways, and power network applications requiring durable and reliable power transmission. The cable features cross linked polyethylene (XLPE) insulation and a galvanized steel wire armour providing excellent protection, mechanical strength, and resistance to damage from impact, pinching, or harsh environments.
This 3 core cable has stranded copper conductors with a cross-sectional area of 16mm² per core, ensuring efficient conductivity and flexibility. The XLPE insulation offers excellent dielectric strength, corrosion resistance, and thermal stability for maximum operating temperatures up to 90 °C.
The cable jacket made of cross linked polyethylene enhances durability for use in indoor, outdoor, and underground conditions with a wide operating temperature range from -15 °C to 90 °C. The cable's outside diameter is 20.4mm, making it suitable for various installation methods including surface clipping, cable trays, ducts, concrete embedding, and direct burial in free draining soil.
Conforming to BS EN 60228 standards, this RS PRO cable guarantees quality and long-term reliability for critical electrical power distribution systems. It is specifically engineered to withstand mechanical and environmental stresses, ensuring continuous power supply in demanding industrial environments.
The galvanized steel wire armour provides robust mechanical protection against impact and crushing. Thermosetting XLPE insulation enhances heat resistance and electrical performance. PVC bedding and sheathing safeguard the cable against abrasion and chemical exposure.
Versatile installation options including underground, ducting, and surface mounting. Suitable for heavy duty applications in power networks, railways, and construction sites.
This cable combines reliability and durability making it an optimum choice for industrial and infrastructure electrical systems requiring long-lasting, high-performance power cables. Browse more Armoured Cables and power wiring solutions at EnvMart for your industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 600V.
The maximum operating temperature is 90°C.
Each conductor has a cross-sectional area of 16mm².
This power cable features 3 cores.
The conductors are made of stranded copper.
The outside diameter of the cable is 20.4mm.
The cable uses thermosetting cross linked polyethylene (XLPE) insulation.
It complies with BS EN 60228 standards for conductor quality and construction.
The minimum operating temperature is -15°C.
It is suitable for heavy duty industrial, construction, railway, and power network applications.
The cable features galvanized steel wire armour for superior mechanical protection against impact and crushing.
Yes, it is suitable for indoor, outdoor, and underground installations.
