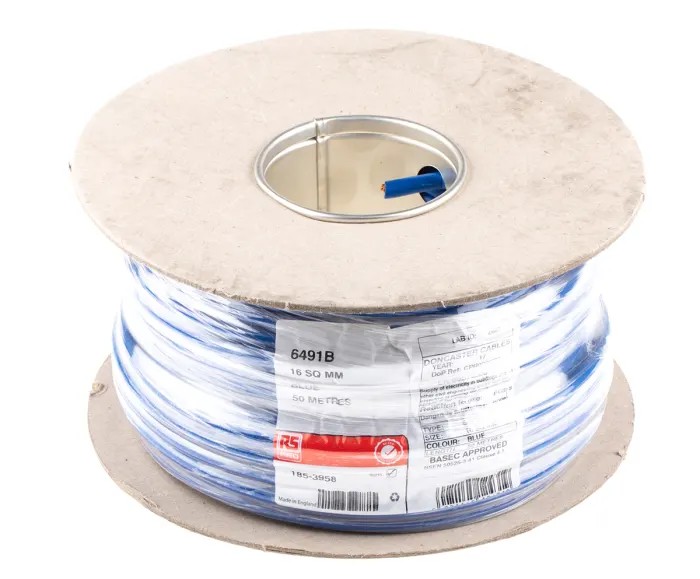

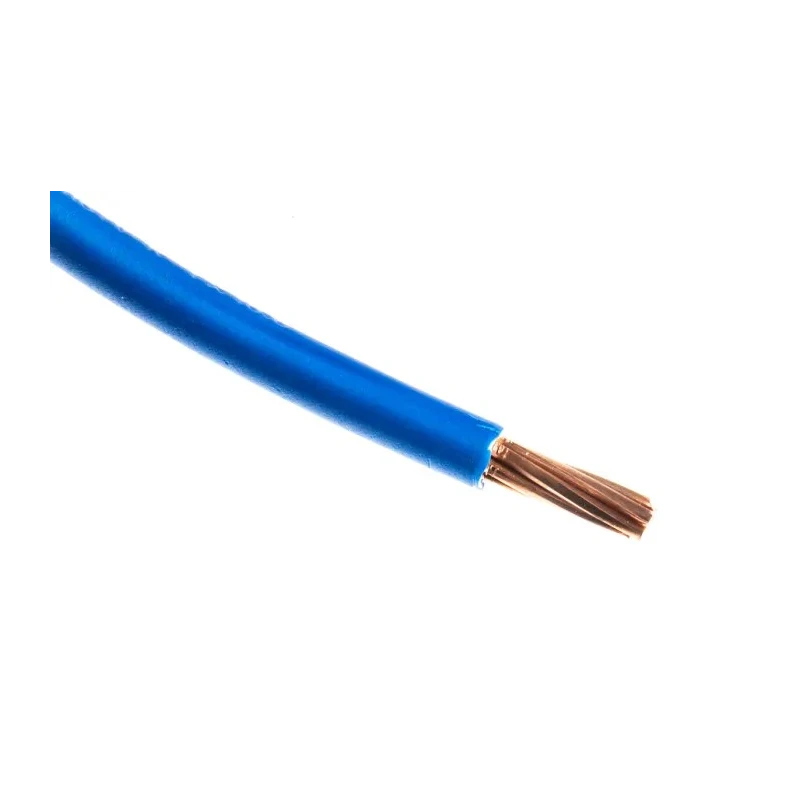

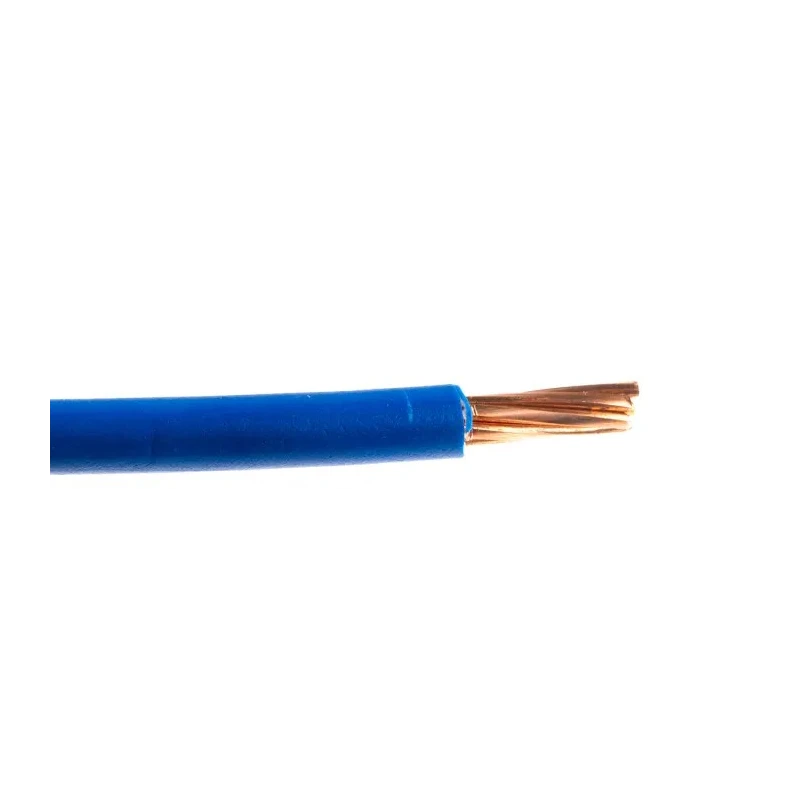

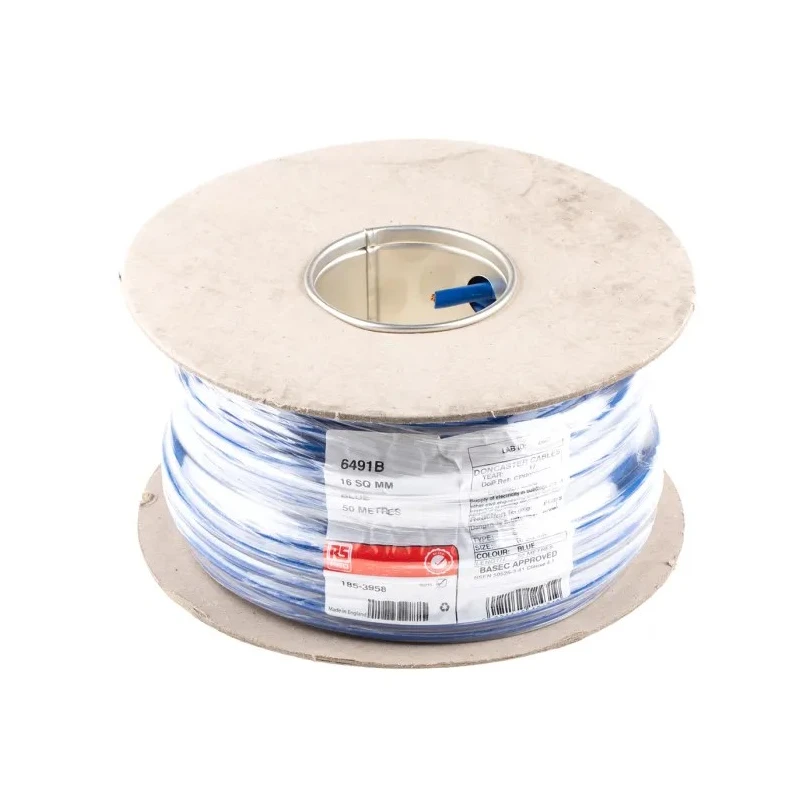

RS PRO H07V-R Series Blue Hook Up Wire 7 x 1.7 mm Core Strands, 50 m, Thermoplastic Polyolefin Jacket 750V AC 90°C 185-3958

RS PRO 185-3958 H07V-R Series Blue Hook Up Wire is a high-quality, thermoplastic polyolefin insulated single-core cable designed for industrial and commercial electrical installations. It has 7 strands of 1.7 mm copper core wire, resulting in a nominal cross-sectional area of 16 mm². With a voltage rating of 750V AC, this cable operates safely under temperatures ranging from -15°C to 90°C. The thermoplastic polyolefin jacket provides low smoke and halogen free characteristics, which significantly reduce smoke and toxic gas emissions in fire situations, enhancing safety in environments such as switchgear and control gear installations.

The cable’s overall diameter is about 8 mm with an insulation wall thickness of 1 mm, making it suitable for installation in surface mount or embedded conduits and similar closed systems. It complies with BS EN 50525-3-41:2011 Clause 4.1 standards, ensuring adherence to recognized quality and safety norms. The LSZH (Low Smoke Zero Halogen) insulation reduces the risk of smoke and acid gas release, protecting equipment and personnel in emergency conditions.

This product is ideal for applications requiring fixed protective installations, control gear wiring, and general power and control cable usage in industrial automation and electrical systems. The copper conductor is plain annealed, providing excellent electrical conductivity and mechanical flexibility. The blue color of the jacket assists in easy cable identification in complex wiring systems.

Manufactured in the United Kingdom, this RS PRO H07V-R Series meets rigorous testing standards to ensure reliability and durability in demanding electrical applications. It is engineered to provide a safe, efficient, and long-lasting wiring solution for installations that demand compliance with modern safety and performance criteria.

The cable features low smoke halogen free thermoplastic polyolefin insulation. It withstands operating temperatures from -15°C to 90°C, suitable for various environments. Voltage rating of 750 V AC supports industrial and commercial power requirements.

Blue jacket color for clear identification in wiring setups. Compliant with BS EN 50525-3-41:2011 safety and quality standard. The cable length is 50 meters, ideal for moderate wiring runs. Seven strands of 1.7 mm diameter copper cores provide flexibility and conductivity.

Designed for use in conduits, both surface mounted and embedded types. Insulation thickness of 1 mm offers protection and durability. Low smoke emission reduces risk during fires, enhancing safety.

For industrial, automation, and electrical engineering projects requiring robust and reliable hook up wires, the RS PRO H07V-R Series 185-3958 provides an excellent solution. Explore similar products in the Hook Up Wire category at EnvMart for comprehensive wiring options.
