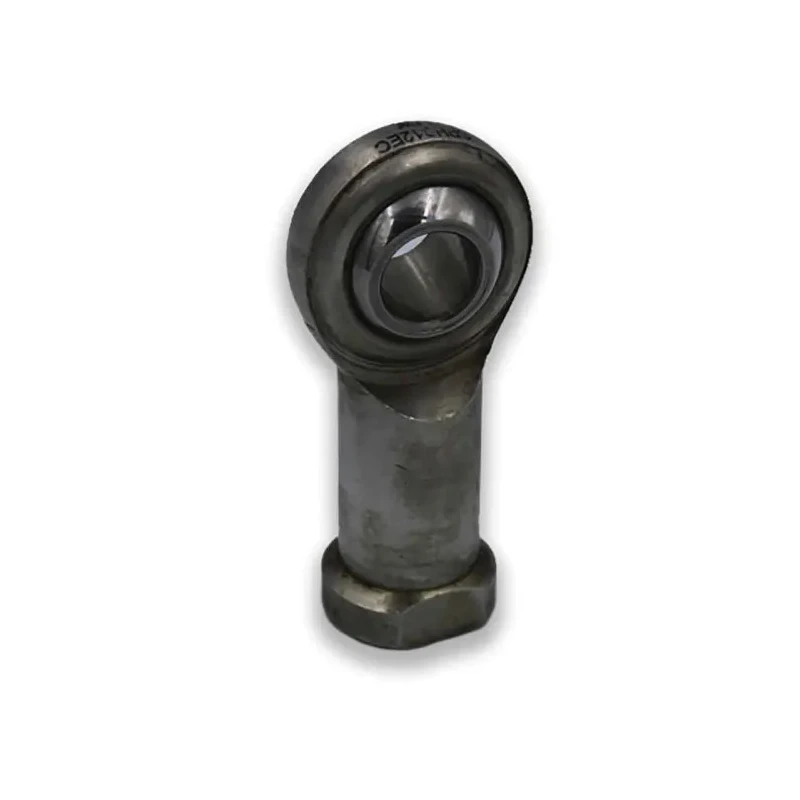

LDK M10 Female 304 Stainless Steel Rod End Bearing, 10mm Bore, Left Hand Thread, SPHS10ECL

LDK SPHS10ECL M10 Female Rod End Bearing is designed for demanding mechanical and industrial applications, delivering reliable performance through precision engineering. This rod end bearing features a 10mm bore diameter and is equipped with a left hand metric thread, making it suitable for specialized mechanical assemblies that require reverse threading.

The bearing body is crafted from corrosion resistant 304 stainless steel, ensuring long service life in challenging environments. The bearing ball is manufactured from 440C stainless steel, heat treated to a hardness of HRC56 minimum. Precision ground and polished, the ball provides smooth rotational movement essential for varying load conditions.

Dynamic and static load ratings of 10.4kN and 17.3kN respectively, indicate the bearing's ability to endure both fluctuating and constant forces, making it ideal for mechanical power transmission systems and fluid power tools. The overall width of the bearing is 56mm and it has an outside diameter of 26mm, allowing for compatibility with standard housing units.

The race of the bearing is composed of PTFE composite, combined with steel/PTFE composite sliding surfaces, which reduce friction and enhance durability in rotary bearing applications. This product is manufactured in China and does not hold any specific standards or approvals but meets quality requirements for industrial use.

Typical applications include mechanical machinery, construction equipment, hydraulic and pneumatic systems, and other industrial assembly lines where precise rod end bearing performance is critical.

Constructed from high-grade 304 stainless steel for corrosion resistance. Precision ground 440C stainless steel ball with heat treatment for hardness. Left hand thread with metric standard for reverse threading applications.

PTFE composite race for low friction and long bearing life. Suitable for mechanical, fluid power, and construction industrial sectors. Dynamic load rating of 10.4kN and static load rating of 17.3kN. Outside diameter 26mm, overall width 56mm, bore diameter 10mm.
