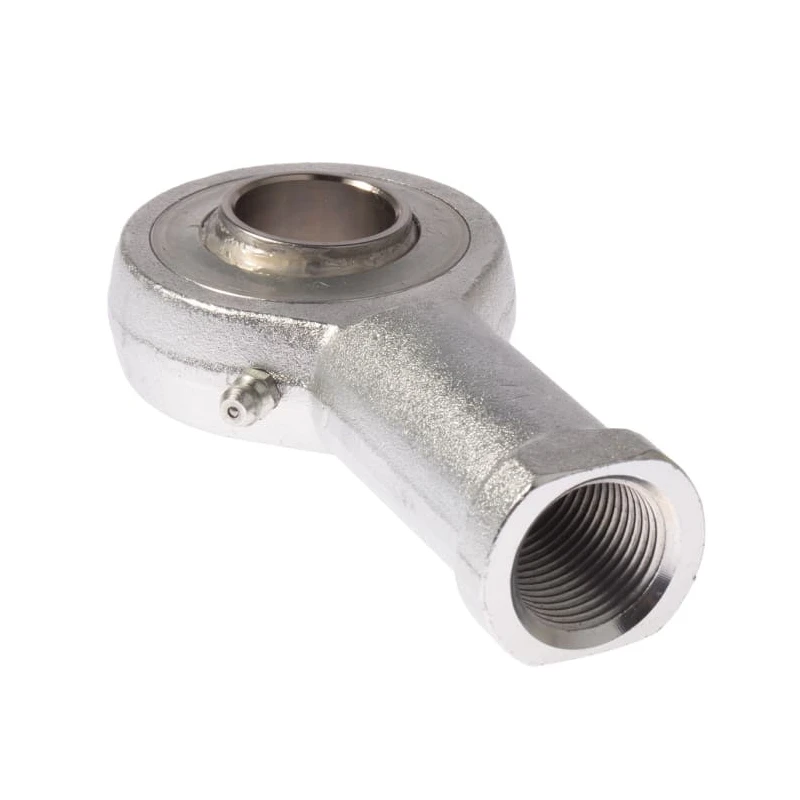

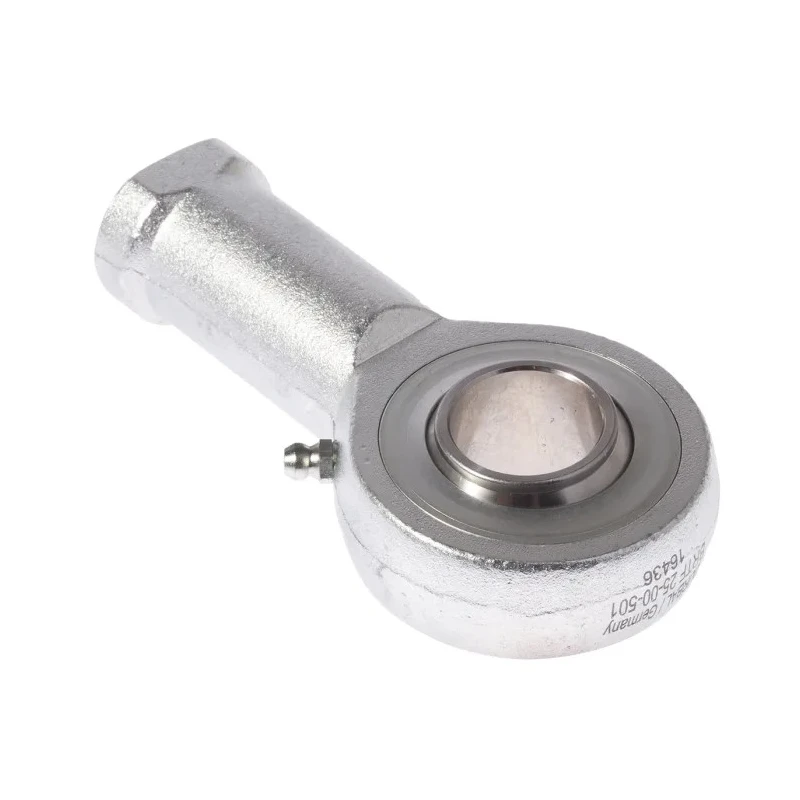

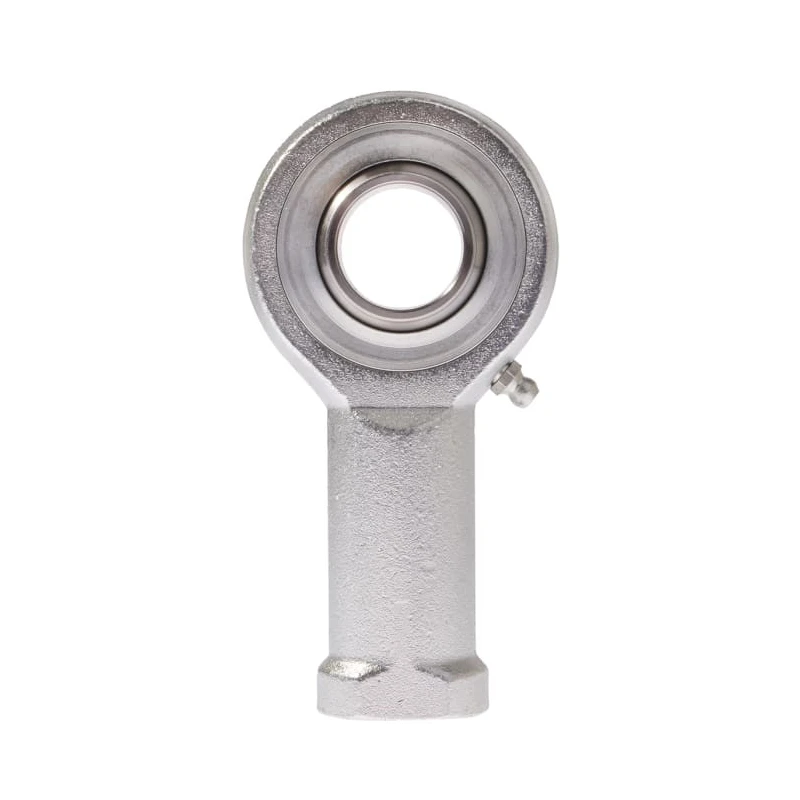

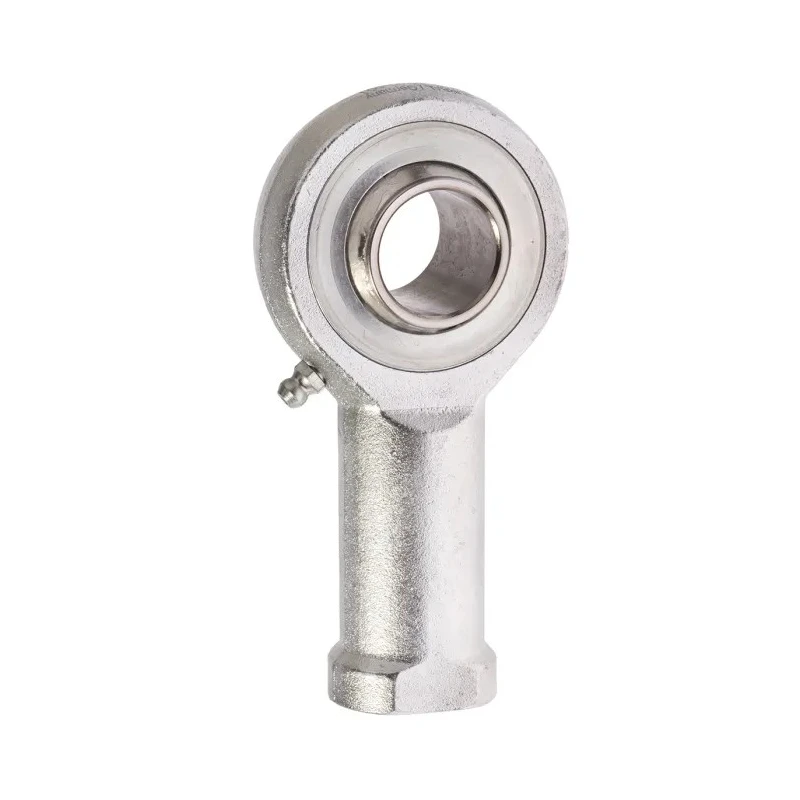

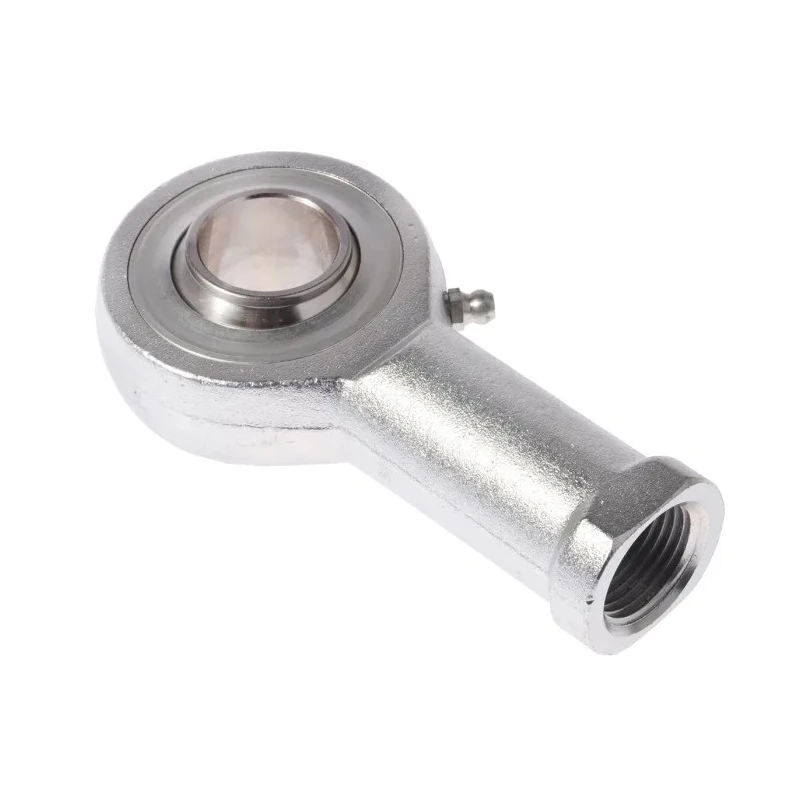

Durbal M20 x 1.5 Female Forged Steel Rod End with 20mm Bore, Left Hand Thread, Forged Steel Housing, BRF 20-00-502
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Durbal |
| Material | Forged Steel |
| Model | BRF 20-00-502 |
| Overall Width | 102mm |
| Outside diameter | 46mm |
| Maximum Operating Temperature | 120°C |
| Connection Size | M20 x 1.5 Female |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 20mm |
| Lubrication | Polyrex EP2 or soap complex |
| Thread Standard | Metric |
| Static Load Rating | 7.5kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 14.2kN |
| Rod end housing | forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized |
| Inner ring | ball bearing steel, hardened, superfine ground |
| Bearing clearance | 15 - 40 μm radial |
Key Features
- Constructed with forged steel housing for strength and durability.
- Left hand threaded female connection with M20 x 1.5 specification.
- 20mm bore diameter suitable for precise shaft fitting.
- Temperature range from -20°C to +120°C ensures reliable operation under diverse conditions.
- Dynamic load rating of 14.2 kN and static load rating of 7.5 kN for robust performance.
- Low maintenance design with lubrication possible through Polyrex EP2 or soap complex grease.
- Case hardened bearing race, ground and lapped with surface galvanization for wear resistance.
- Bearing clearance between 15 and 40 μm radial for optimal alignment and reduced play.
Product Description
Durbal BRF 20-00-502 female forged steel rod end features a robust forged steel housing designed for mechanical assemblies requiring precision and durability. The rod end includes a left hand M20 x 1.5 female threaded connection and a 20mm bore diameter optimized for high performance in industrial applications.
Manufactured in Germany, this rod end is part of Durbal's Premium Line, characterized by low maintenance requirements while allowing lubrication with Polyrex EP2 or soap complex grease. Its bearing components include a hardened and superfine ground ball bearing steel inner ring and a case hardened bearing race that is ground, lapped, and surface galvanized for enhanced durability and resistance to wear.
This component operates reliably in a wide temperature range from -20°C up to +120°C, making it suitable for demanding environments such as industrial machinery, fluid power systems, and mechanical transmission assemblies. The dynamic load rating of 14.2 kN and static load rating of 7.5 kN ensure the rod end can handle significant mechanical stresses.
The bearing clearance is precisely maintained between 15 and 40 micrometers (μm) radial, allowing integral self-aligning motion for smooth operation. Its compact geometry includes an overall width of 102mm and an outside diameter of 46mm, making it compatible with various machinery designs.
Constructed with forged steel for strength and long service life. Left hand thread direction ensures correct axial positioning in assemblies. Lubrication facilitated by high-quality greases minimizes wear and maintenance.
High dynamic and static load ratings suit heavy-duty mechanical applications. Compatible with metric threaded shafts and components for standardization. Temperature tolerance accommodates operation in challenging environmental conditions.
Manufactured to premium standards ensuring reliability and precision.
This Durbal rod end is ideal for use in industrial, manufacturing, mechanical, and fluid power systems where precision bearing and articulation are critical. It enables the smooth transmission of loads and motion, prolonging equipment life and enhancing operational efficiency.
Explore the EnvMart Industrial Tools & Equipment category for comprehensive selections of Rod End Bearings and related mechanical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 14.2 kN, ensuring it can handle significant mechanical stresses during operation.
The bore diameter of this model is 20mm, making it suitable for precise shaft fitting in various applications.
This rod end operates reliably within a temperature range from -20°C to +120°C, accommodating diverse environmental conditions.
Lubrication can be performed using Polyrex EP2 or soap complex grease, which helps minimize wear and maintenance.
The static load rating for this rod end is 7.5 kN, providing a measure of its capacity to withstand static loads.
The overall width of this rod end is 102mm and the outside diameter is 46mm, allowing compatibility with various machinery designs.
This model features a left hand M20 x 1.5 female threaded connection, suitable for standard metric applications.
The rod end is constructed from forged steel, with a case hardened bearing race that is ground, lapped, and surface galvanized for enhanced durability.
The bearing clearance is maintained between 15 and 40 micrometers (μm) radial, allowing for optimal alignment and reduced play.
This rod end is manufactured in Germany, ensuring it meets premium standards for quality and performance.
It is ideal for use in industrial, manufacturing, mechanical, and fluid power systems where precision bearing and articulation are critical.
The left hand thread direction ensures correct axial positioning in assemblies, which is crucial for maintaining operational integrity.
