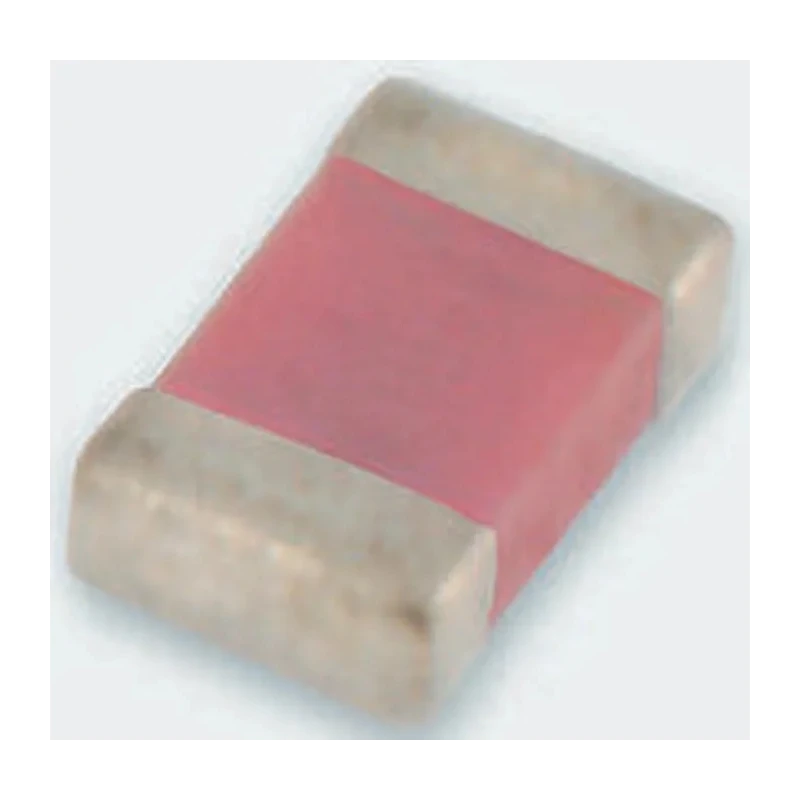

Yageo 22 pF Multilayer Ceramic Capacitor 50V dc ±5 % Tolerance Surface Mount 1206 Case CC1206JRNPO9BN220

Yageo CC1206JRNPO9BN220 is a high-precision Multilayer Ceramic Capacitor specifically designed for surface mount technology applications. It features a capacitance of 22 pF with a tolerance of ±5 % and operates reliably at a voltage of 50V dc. The capacitor’s standard 1206 case size (3.2mm x 1.6mm x 0.6mm) supports compact PCB layouts that require stability and durability.

This capacitor uses C0G dielectric, known for its temperature compensation properties, making it ideal for circuits demanding high stability over a wide temperature range from -55°C to 125°C. Its stacked construction enhances performance by providing consistent capacitance and reliability.

The component is packaged on paper/PE tape reels to support high-efficiency automated placement in electronics manufacturing environments, helping improve production throughput. The surface mount termination ensures compatibility with standard SMD assembly techniques.

Yageo capacitors comply with international standards IEC 60384-1, IEC 60384-21/22 and meet RoHS directives, ensuring both technical quality and environmental compliance. The product is suitable for varied industrial, consumer electronics, and commercial electronic circuit applications requiring stable, reliable capacitance in a miniature form factor.

High-quality multilayer ceramic construction ensures durability and stability. Capacitance of 22 pF with a tolerance of ±5 % for precise electronic applications. Voltage rating of 50V dc suitable for various low voltage circuits.

Standard 1206 package case dimensions: 3.2mm length, 1.6mm width, 0.6mm height. C0G dielectric material provides temperature compensating characteristics for stability. Stacked construction for enhanced capacitance and reliability.

Packaging in paper/PE tape reel allows efficient automated PCB assembly. Surface mount termination type optimized for SMD soldering processes. Operating temperature range from -55°C to 125°C ensures versatility in harsh environments.

Compliance with IEC 60384-1, IEC 60384-21/22 standards and RoHS certification ensures quality and environmental safety.

This capacitor is ideal for industrial, laboratory, manufacturing, and consumer electronics applications where precision, reliability, and miniaturization are essential. EnvMart customers can explore the broader Yageo range for compatible electronic components and accessories.
