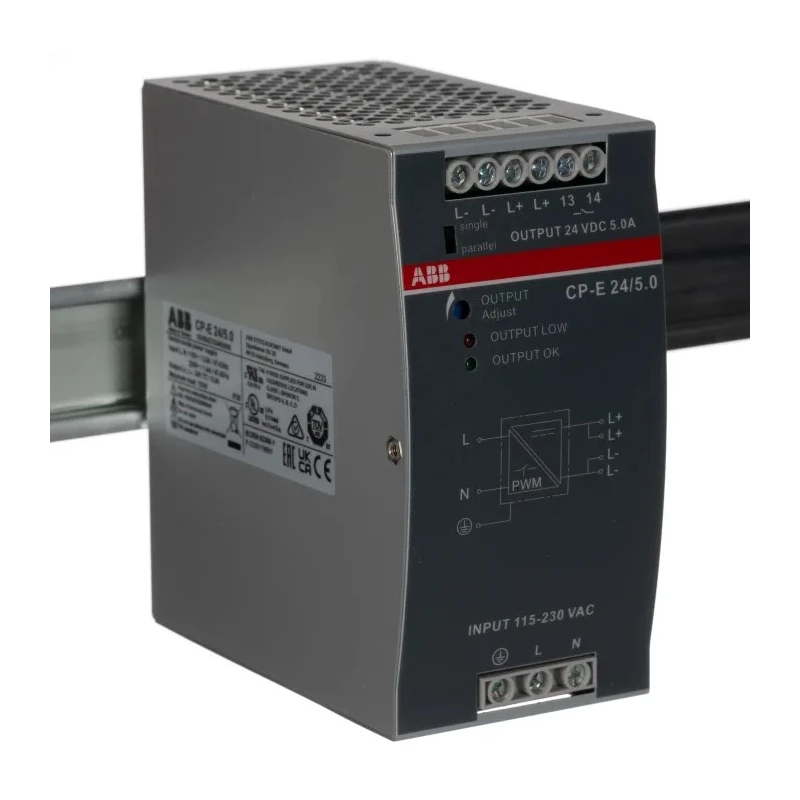

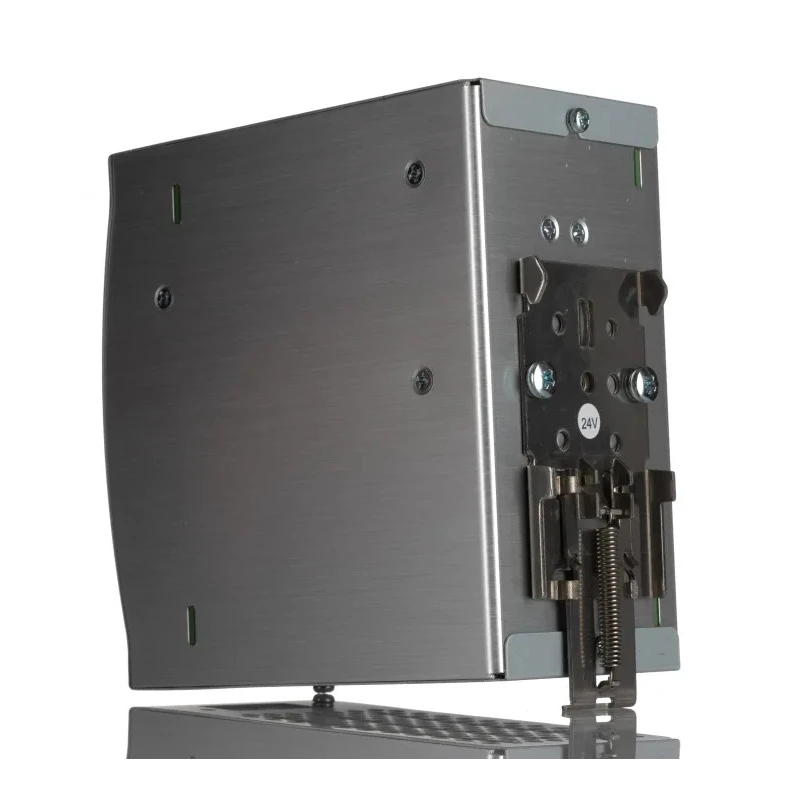

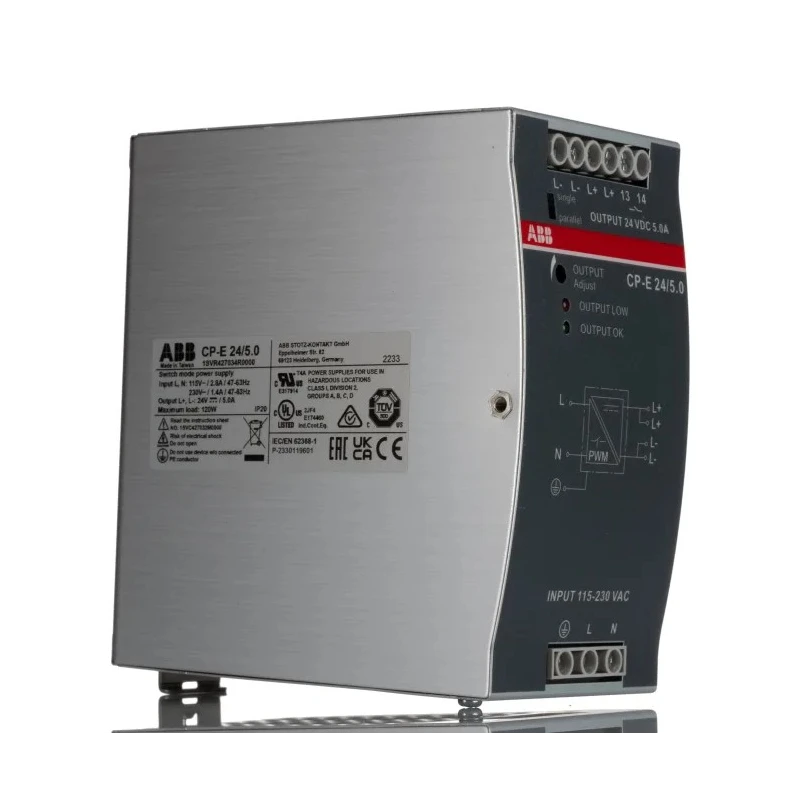

ABB CPE Switched Mode DIN Rail Power Supply 120 W, 24 V dc Output, 375 V dc / 264 V ac AC/DC 1SVR427034R0000 CP-E 24/5.0
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ABB |
| Power | 120W |
| Efficiency | 86% |
| Height | 123.6mm |
| Model | 1SVR427034R0000 CP-E 24/5.0 |
| Depth | 123.6mm |
| IP Rating | IP20 |
| Width | 123.6mm |
| Series | CPE |
| Output Current | 5A |
| Maximum Operating Temperature | 85°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 375, 264V dc |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 115V ac |
Key Features
- Durable switched mode power supply for DIN rail mounting, suitable for industrial applications.
- Single output with a maximum current of 5 A ensures stable power delivery.
- Wide input voltage range supports varied power networks, enhancing versatility.
- High efficiency of 86% reduces energy loss and heat generation.
- Compact design with dimensions 123.6 mm height, width, and depth fits standard DIN rails.
- Wide operating temperature range from -40°C to 85°C for harsh environmental conditions.
- IP20 rated for protection against solid ingress but not liquids.
- Equipped with short circuit and overload protection features for enhanced safety.
Product Description
ABB 1SVR427034R0000 CP-E 24/5.0 is a high-quality switched mode DIN rail power supply providing 120 W of power at 24 V DC output voltage. It operates with an AC/DC input voltage range of 115 V AC minimum, up to 375 V DC or 264 V AC maximum, designed to accommodate unstable networks and battery-powered setups.
This power supply is engineered for industrial environments, offering a wide operating temperature range from -40°C to 85°C and IP20 ingress protection rating. Its compact cubic dimensions of 123.6 mm for height, width, and depth allow for easy integration into existing DIN rail infrastructures.
The device features a front-face rotary potentiometer that enables output voltage adjustment between 22.5 and 28.5 V DC, facilitating precise control over connected equipment power. It incorporates two capacitors for effective mains buffering, enhancing stability in fluctuating power conditions without the need for additional cooling fans due to its free convection cooling.
Safety is prioritized with built-in protections against short circuits and overloads, ensuring reliable long-term operation. Installed LEDs provide clear visual status indicators for operational monitoring.
Widely applied across automotive, textile manufacturing, robotics, and paper and pulp mills, this power supply is engineered for reliability and efficiency in demanding industrial processes.
Durable switched mode power supply for DIN rail mounting, suitable for industrial applications. Single output with a maximum current of 5 A ensures stable power delivery. Wide input voltage range supports varied power networks, enhancing versatility.
High efficiency of 86% reduces energy loss and heat generation. Compact design with dimensions 123.6 mm height, width, and depth fits standard DIN rails. Wide operating temperature range from -40°C to 85°C for harsh environmental conditions.
IP20 rated for protection against solid ingress but not liquids. Equipped with short circuit and overload protection features for enhanced safety. Front rotary potentiometer allows easy voltage adjustment between 22.5 and 28.5 V DC.
Suitable for automotive, robotics, textile, and paper pulp industry applications. Explore EnvMart’s collection of power supplies for industrial and commercial applications to find compatible accessories and complementary products.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a maximum output power of 120 W at 24 V DC.
The maximum output current is 5 A.
It has an efficiency rating of 86%.
It supports an input voltage range from 115 V AC to 375 V DC or 264 V AC.
The dimensions are 123.6 mm in height, width, and depth.
It operates within a temperature range of -40°C to 85°C.
It includes short circuit and overload protection features for enhanced safety.
The output voltage can be adjusted between 22.5 V and 28.5 V DC using a front-face rotary potentiometer.
It has an IP20 rating, providing protection against solid ingress but not liquids.
It is commonly used in automotive, textile manufacturing, robotics, and paper and pulp mills.
It utilizes free convection cooling, eliminating the need for additional cooling fans.
The country of origin for this power supply is Taiwan.
