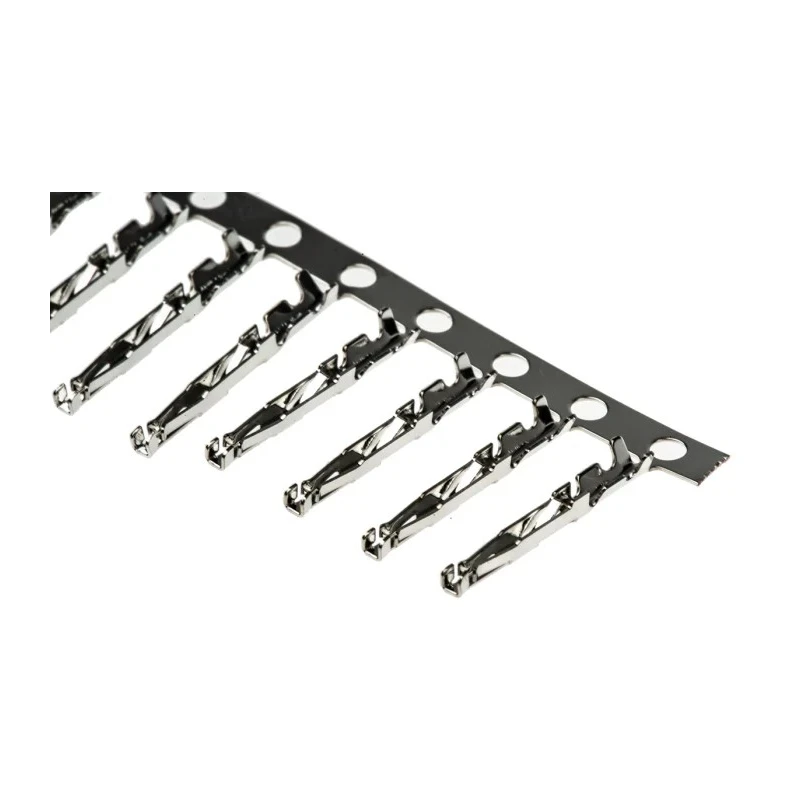

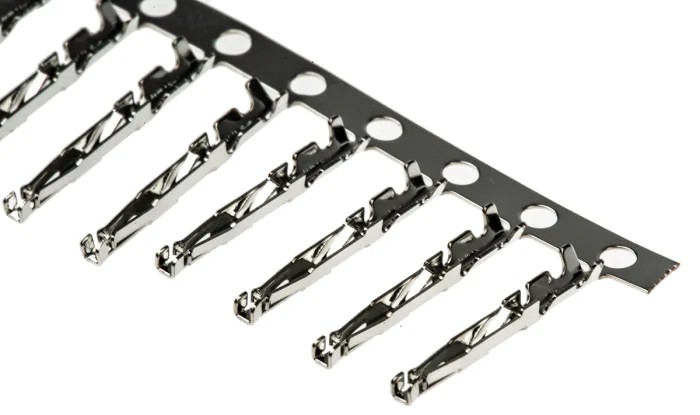

RS PRO Female Crimp Circular Connector Contact for MDR Series Connector, Wire Size 24-28 AWG, 1A, 50V, Tin Plated 183-1811
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | RS PRO |
| Current | 1A |
| Length | 15.2mm |
| Model | 183-1811 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | MDC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 160°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -40°C |
| Wire size | 24, 28AWG |
| For Use With | MDR Series Connector |
| Contact Plating | Tin |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Constructed from phosphor bronze for excellent durability and metal fatigue resistance.
- Tin plating ensures low contact resistance under 30 milli-ohms and enables solderable ground connection.
- Flange-mounting female crimp type suitable for secure connections.
- Operational temperature range from -40°C to 160°C for harsh environments.
- Contact length measures 15.2 mm, suitable for compact connector designs.
- Ideal for computer, telecommunications, and signal transmitting applications.
- Compliant with RoHS directives ensuring minimal hazardous substances.
Product Description
The RS PRO 183-1811 is a female crimp circular connector contact engineered for use with MDR Series Connectors. It accepts wire sizes between 24 and 28 AWG and features a current rating of 1 ampere with a voltage rating of 50 volts AC/DC, making it suitable for various electronic assembly applications.
This contact is moulded from phosphor bronze, offering excellent resistance to mechanical wear and metal fatigue. The tin plating applied provides a contact resistance of less than 30 milliohms and enables reliable solderable ground connections, further enhancing connection integrity in electronic devices.
The flange-mounting design ensures secure mechanical retention in connectors, with a contact length of 15.2 mm helping achieve a compact assembly footprint. Designed to operate across a broad temperature range from -40°C to +160°C, the contact performs reliably in harsh industrial and electronic environments.
The RS PRO 183-1811 contact has been tested to meet electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, providing protection for sensitive equipment against electrostatic damage. Additionally, it complies with RoHS to limit hazardous substances, supporting environmental and safety regulations.
This Circular Connector Contact is widely used in computer and telecommunications systems for transmitting shielded data signals, where high contact density and reliable electrical performance are required. It is an essential component for industrial, manufacturing, laboratory, and commercial electronic equipment assembly.
Constructed from phosphor bronze for strength and reliability. Tin plating reduces contact resistance and enables solderable ground tags. Flange-mounting female crimp design for secure connections. Wide temperature tolerance from -40°C to 160°C.
Low contact resistance below 30 mΩ ensures signal quality. Supports wire sizes between 24 and 28 AWG. Tested to respected electrostatic discharge standards. RoHS compliant with minimal hazardous substance content. Explore more high-quality and reliable electronic connector components like the RS PRO 183-1811 within EnvMart’s extensive Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1 ampere and a voltage rating of 50 volts AC/DC.
It accepts wire sizes between 24 and 28 AWG.
The maximum contact resistance is less than 30 milliohms.
It operates within a temperature range of -40°C to 160°C.
The contact is made from phosphor bronze and features tin plating.
The contact length measures 15.2 mm.
It employs a crimp termination type for secure connections.
Yes, it is RoHS compliant, ensuring minimal hazardous substances.
It is designed for use with MDR Series Connectors.
It is suitable for applications in computers, telecommunications, and signal transmitting systems.
It has been tested to meet electrostatic discharge standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The contact is manufactured in Taiwan.
