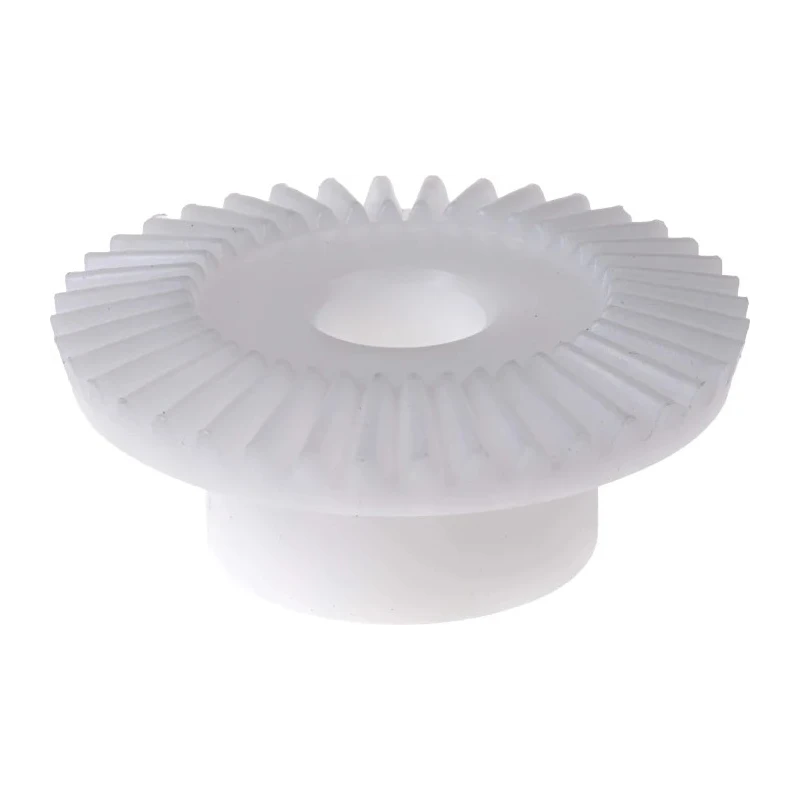

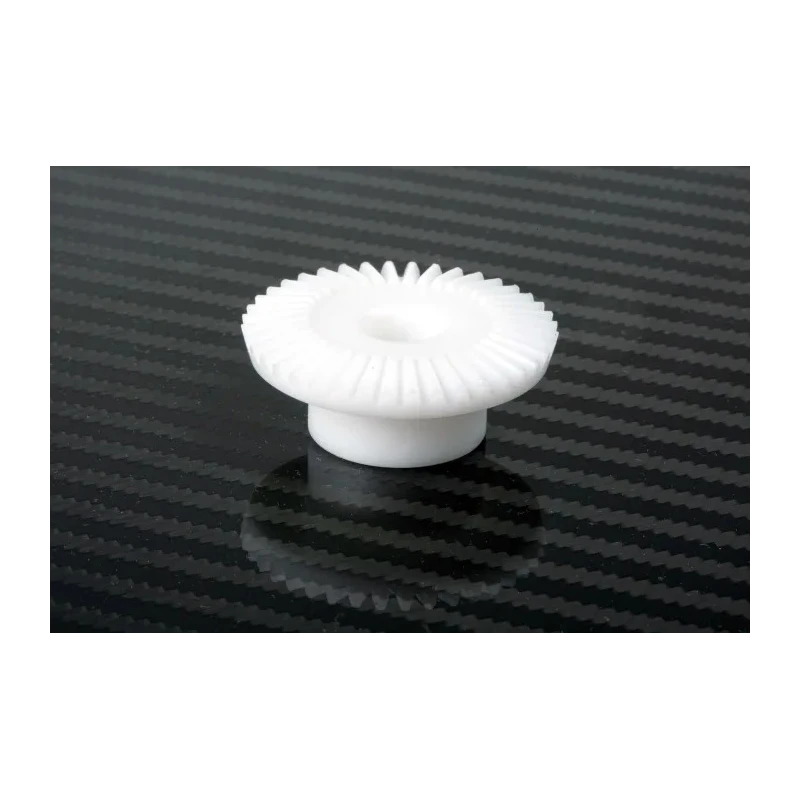

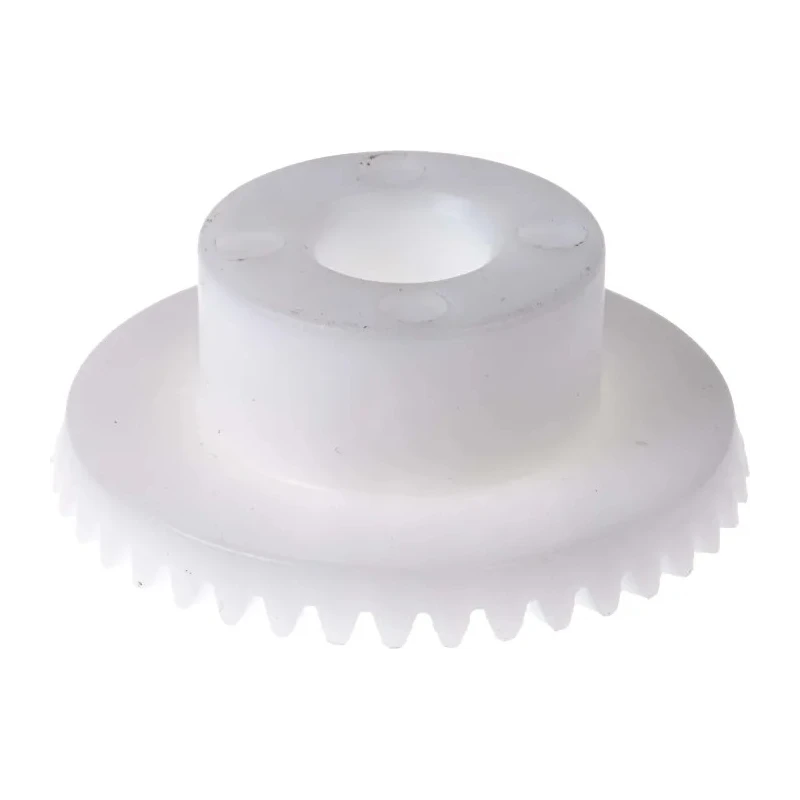

RS PRO Bevel Gear 10mm Bore 40 Teeth 1 Module White HOSTAFORM® Thermoplastic Polymer Model 182-8011
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Model | 182-8011 |
| Series | Hostaform |
| Gear Type | Bevel |
| Number of Teeth | 40 |
| Bore Diameter | 10mm |
| Gear ratio | 4:1 |
| Standards/Approvals | RoHS |
| Pitch Diameter | 1mm |
| Hub Diameter | 23.4mm |
| Module | 1 |
| Pressure Angle | 20° |
| Gear Ratio4 | 1 |
| The RS PRO 4 | 1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 1 and 40 teeth |
Key Features
- Constructed from white HOSTAFORM®C, a semi-crystalline thermoplastic polymer known for wear resistance and rigidity.
- Features a 10mm bore diameter suitable for precise shaft fitting.
- Contains 40 teeth with a 1 module pitch for smooth mechanical power transmission.
- Manufactured with high accuracy including standard tolerances of 0.25mm and angular accuracy of 5 minutes.
- Bore tolerance H8 ensures precise fitment on shafts.
- Hub diameter measures 23.4mm, providing robust mounting support.
- Cut to the Gleason System standards, including EN certified specifications.
- Suitable for applications requiring power transmission between intersecting shafts.
Product Description
RS PRO 182-8011 bevel gear is a precision mechanical power transmission component made from the white HOSTAFORM®C thermoplastic polymer. This bevel gear features a 10mm bore diameter, 40 teeth, and a pitch module of 1, designed to efficiently transmit power between two intersecting shafts at a 90-degree angle.
HOSTAFORM® material provides excellent wear resistance, hardness, rigidity, dimensional stability, and long-term creep resistance. It also offers outstanding resistance to moisture, alkaline solutions, fuels, and a wide range of chemicals, making it suitable for demanding industrial environments.
This bevel gear includes a 20° pressure angle and a gear ratio of 4:1, cut to the Gleason System adhering to EN, DIN 3964, DIN 3967, and DIN 3971 standards. The bore has a tolerance of H8 for precision shaft fitting, while the hub diameter of 23.4mm ensures robust mounting.
The gear maintains a high degree of accuracy, with standard tolerances of 0.25mm, shaft axis intersection tolerance within 0.025mm, and angular accuracy between shafts within 5 minutes, ensuring reliable and smooth operation.
Constructed from HOSTAFORM®C semi-crystalline thermoplastic polymer. 10mm bore diameter with bore tolerance H8. 40 teeth with 1 module pitch. 20° pressure angle, 4:1 gear ratio. Hub diameter of 23.4mm for sturdy mounting.
Compliance with EN and DIN Gleason system standards. Ideal for transmitting power between intersecting shafts in industrial machinery. Excellent chemical and moisture resistance for extended durability. High dimensional stability and wear resistance.
This bevel gear is well suited for use in mechanical power transmission in industrial tools and equipment, particularly where precision and durability are paramount. Explore more high-quality mechanical transmission components in the Mechanical Power Transmission category at EnvMart for diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bevel gear has a bore diameter of 10mm, which allows for precise shaft fitting.
This bevel gear features 40 teeth, designed for efficient power transmission.
The gear ratio of this model is 4:1, suitable for power transmission applications between intersecting shafts.
It is constructed from white HOSTAFORM®C, a semi-crystalline thermoplastic polymer known for its wear resistance and rigidity.
This bevel gear is cut to the Gleason System standards and complies with EN, DIN 3964, DIN 3967, and DIN 3971 specifications.
The hub diameter measures 23.4mm, providing robust mounting support for the gear.
The bevel gear has a pressure angle of 20°, which is standard for efficient power transmission.
The pitch module of this model is 1, which is typical for gears of this type.
The bore has a tolerance of H8, ensuring a precise fitment on shafts.
This bevel gear maintains standard tolerances of 0.25mm and an angular accuracy of 5 minutes between shafts.
The bevel gear is manufactured in Germany, ensuring adherence to high standards of precision and quality.
This bevel gear is suitable for applications requiring power transmission between intersecting shafts in industrial machinery.
