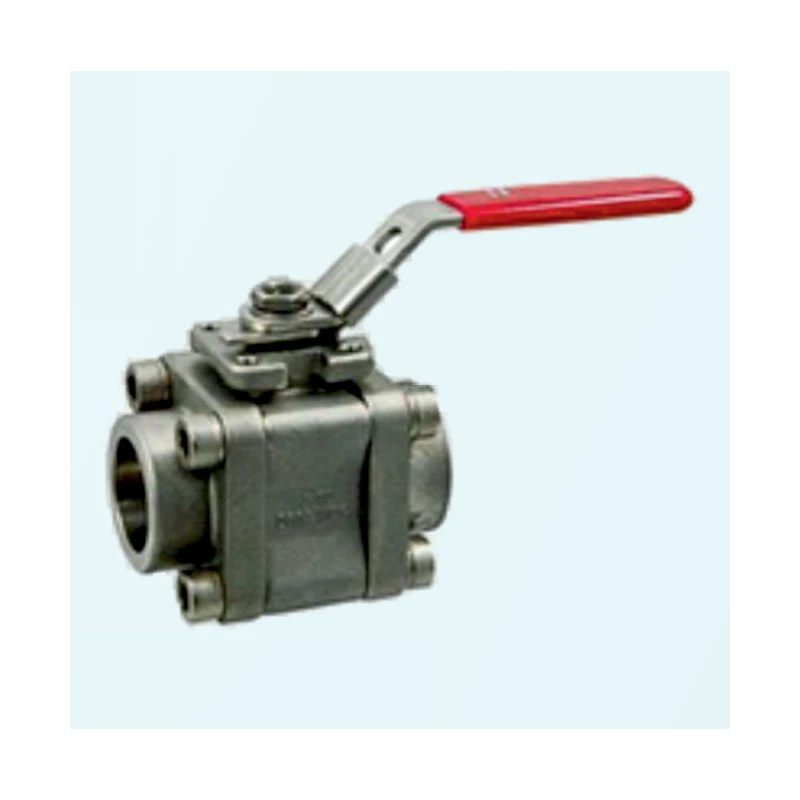

Forged 3PC Ball Valve Class 800 SS-304(32 mm)
Specifications
| Model | UPC-FTBV-435 |
|---|---|
| BALL | ASTM A (351 GR.CF8M) |
| LEVER | CARBON STEEL WITH ZINC PLATED/S.STEEL/S.STEEL |
| STEM | ASTM A 479TYPE (SS-304/SS-304/SS-316) |
| Product Standard | EN ISO 17292/B16.34 |
| Seat Ring | PTFE /CFT |
| Body Material Std. | ASTM A (105N /182 Gr. F-304/182 Gr. F-316) |
| Testing Standard | API 598 |
| Valve Operation | LEVER OPERATED |
| BODY GASKET | SS-316+SPW+GRAFOIL |
| GLAND BUSH | ASTM A 479 TYPE SS-304 |
| STEM NUT | ASTM A 194 GR. (2H/GR. 8/GR. 8) |
Key Features
- Easy installation
- Low leakage
- Long service life
Product Description
Forged 3PC Ball Valve Class 800 SS-304(32 mm) are made from high quality materials and feature an easy to clean design. They come in a variety of finishes including stainless steel, brass, bronze, black oxide and nickel plated. The valves can be used as single or double acting and have been engineered to provide excellent performance and long life.
- Good corrosion resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Forged 3PC Ball Valve Class 800 is rated for Class 800 pressure standards, which indicates its suitability for high-pressure applications.
This model features a body made from ASTM A (105N /182 Gr. F-304/182 Gr. F-316) materials, with a ball made from ASTM A (351 GR.CF8M) and a stem from ASTM A 479 TYPE (SS-304/SS-304/SS-316).
The valve operates using a lever mechanism, allowing for manual control of flow.
This ball valve has a nominal size of 32 mm.
The seat ring is made of PTFE/CFT, providing good sealing performance.
It complies with the API 598 testing standard, ensuring quality and performance.
The body gasket is made from SS-316+SPW+GRAFOIL, which aids in sealing and durability.
Yes, it is designed with good corrosion resistance, making it suitable for various applications including those involving corrosive media.
This model adheres to the EN ISO 17292 and B16.34 standards, ensuring it meets industry specifications.
The lever is made from carbon steel with a zinc plated finish, or can also be stainless steel.
The gland bush is made from ASTM A 479 TYPE SS-304, providing structural integrity and support for the stem.
The stem nut, made from ASTM A 194 GR. (2H/GR. 8/GR. 8), serves to secure the stem and allow for smooth operation of the valve.
