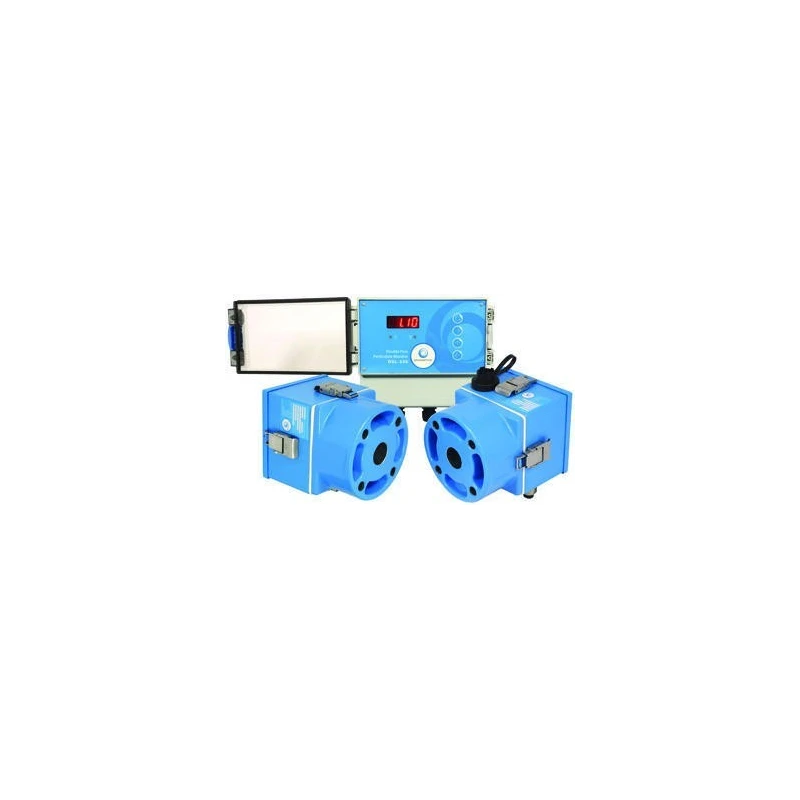

Digital Dust Analyzer DSL 340

We have been engaged in manufacturing and supplying the best grade array of Opacity Dust Monitor since our commencement in the domain. This monitor is manufactured under the strict surveillance of ingenious team members using premium-grade components and progressive techniques in adherence to preset industry norms. This monitor is widely applauded to be used for determining the presence of dust particles in gases flowing through ducts, flue, stacks, etc. Moreover, our clients can avail of this Opacity Dust Monitor with a multitude of technical specifications at budget-friendly prices.The Double Pass Particulate Monitor DSL-330 Particulate Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in exhaust gas passing through a duct, stack, or flue. The DSL-330 uses the double pass light transmission measurement technique, with a folded beam Transceiver/Reflector arrangement. A light beam emitted from the Transceiver (TRX) passes across the duct, stack, or flue to a Reflector, which then returns the light to the Transceiver where the intensity of the received light is measured. Increased particulate density in the stack gas attenuates the transmitted light and causes the intensity of the

• Choice of interface options enabling easy integration
• Free utility software for PC based set-up, control and data logging
• Optional Operator Interface with different mounting configurations
