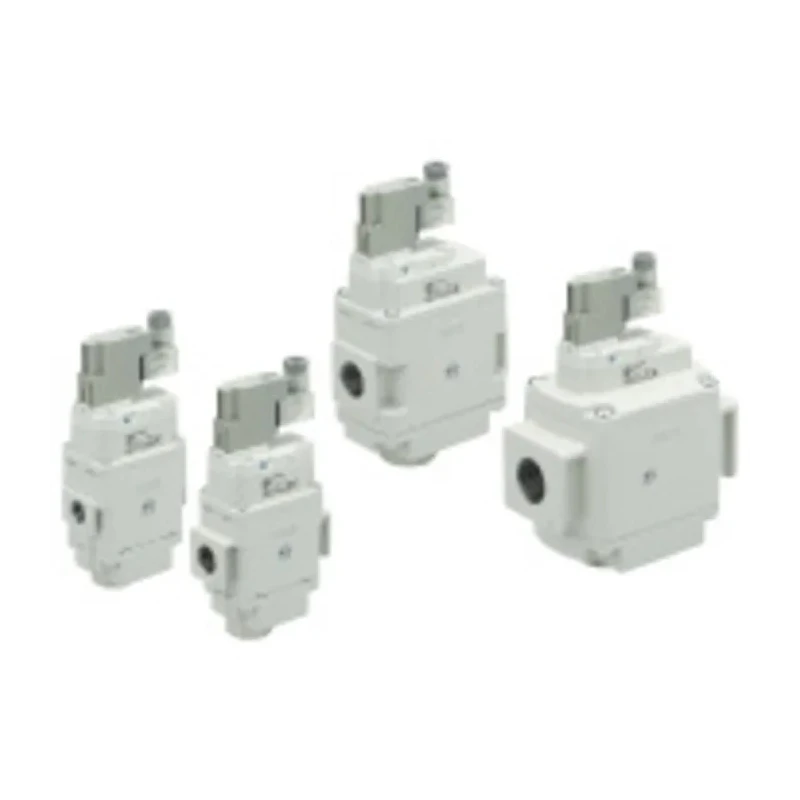

SMC Pneumatic Solenoid Start-Up Valve G Series AV, 1/4 in Port, 24V DC, 0.35W Power, Die Cast Aluminium Body AV2000-F02-5YB-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	66mm
Length	147.5mm
Model	AV2000-F02-5YB-A
Width	40mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Start-Up Valve
Maximum Flow Rate	2433L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Low electrical consumption reduces operational power demand.
High flow capacity supports rapid actuation at 2433 L/min.
Single solenoid design allows simple control logic.
Female G1/4 threaded ports enable direct piping connections.
Nitrile rubber seals resist common pneumatic contaminants.
DIN connector provides a compact and protected electrical interface.
Compact die cast aluminium body ensures durability and lightweight construction.
Rated operating pressure up to 1 MPa with a minimum pilot pressure of 0.2 MPa.

Product Description

SMC AV2000-F02-5YB-A pneumatic solenoid start-up valve, featuring a 1/4 in G-threaded port size, 24V DC operating voltage, and 0.35W solenoid power consumption, is engineered for controlled air supply in fluid power and pneumatic automation systems. This pilot-operated valve offers soft-start capability, moderating actuator motion for smooth system start-ups in industrial environments.

The valve's single solenoid construction simplifies control and ensures reliable operation. It features female G1/4 threaded ports that allow straightforward integration into existing pneumatic lines with filtration, regulation, and lubrication (FRL) units. The nitrile rubber (NBR) seals provide excellent resistance against common pneumatic contaminants, enhancing valve longevity.

Constructed from die cast aluminium, the valve body offers a combination of sturdy mechanical strength and light weight. It is designed for standalone mounting and electrical connection via a DIN connector that delivers IP65 ingress protection against dust.

Operating parameters include a maximum pressure rating of 1 MPa and a pilot pressure range between 0.2 MPa and 1 MPa. The valve supports a maximum flow rate of 2433 L/min, making it suitable for applications requiring rapid actuation and precise air control.

Typical industrial uses comprise soft-start control of pneumatic cylinders in assembly and packaging machinery, integration with compressed air FRL units, and sequencing in machine safety systems. Its temperature operating range is 0°C to 50°C, making it appropriate for various working conditions.

Low electrical consumption reduces operational power demand. High flow capacity supports rapid actuation at 2433 L/min. Single solenoid design allows simple control logic. Female G1/4 threaded ports enable direct piping connections.

Nitrile rubber seals resist common pneumatic contaminants. DIN connector provides a compact and protected electrical interface. Compact die cast aluminium body ensures durability and lightweight construction. Rated operating pressure up to 1 MPa with a minimum pilot pressure of 0.2 MPa.

Operating temperature range from 0°C to 50°C for versatile industrial conditions.

This product supports industrial, manufacturing, automation, packaging, and assembly line applications. For further selection in pneumatic solenoid valves and related fluid power tools, browse EnvMart's Pneumatic Solenoid Valves category.
