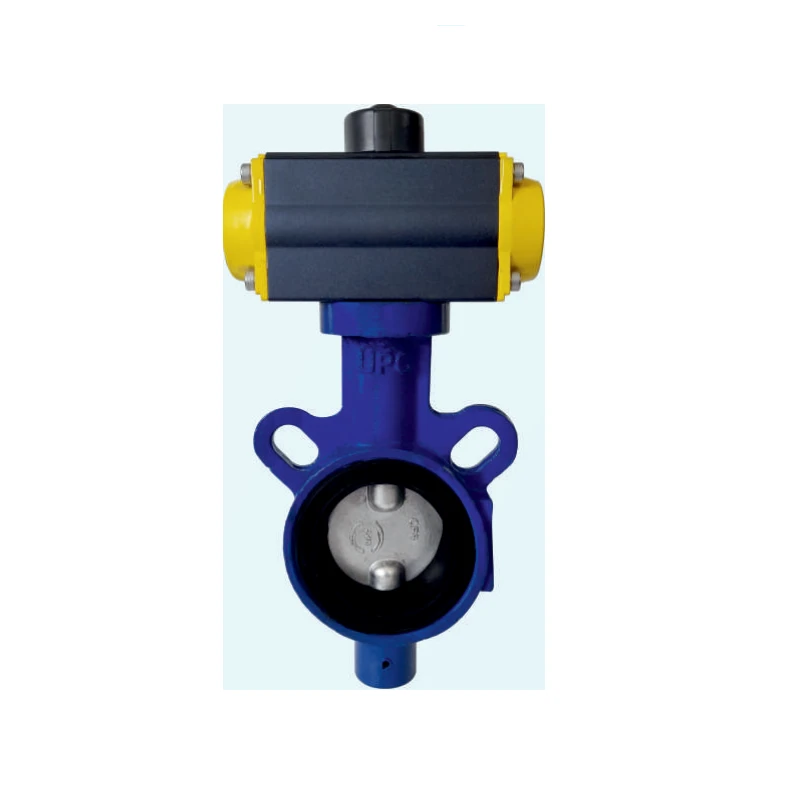

Pneumatic Actuator Butterfly Valve CF8M(100 mm)
Specifications
| Size | 40mm to 600mm |
|---|---|
| Body Material | Cast Iron(IS210 Gr. FG200) |
| Model | UPC-PBV-416 |
| Packaging | Self lubricated Sliding Bearings |
| Product Standard | BS5155/API609/IS13095 |
| Test Pressure | B.T.P.24 bar Hyd. S.T.P. 17.6 Bar Hyd. |
| Type of Seat | Nitrile |
| Type of disc | SG Iron(ASTM A536) |
| Trim | 13% CR. SS(ASTM276 Gr.410) |
| Actuator | Double acting type with Pressure (8bar) |
Key Features
- Easy installation
- Low leakage
- Long service life
Product Description
Actuator Operated Pneumatic Butterfly Valve CF8M(100 mm) is used for controlling air flow through a pipe or duct. The valve has two positions, open and closed. When it is opened, air can pass through the valve. When it is closed, no air can pass through the butterfly valve.
- Good corrosion resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pneumatic actuator butterfly valve is available in sizes ranging from 40mm to 600mm.
The body material is cast iron (IS210 Gr. FG200), the disc is made of SG iron (ASTM A536), and the trim consists of 13% CR stainless steel (ASTM276 Gr.410).
The test pressure for this valve is 24 bar for the body test and 17.6 bar for the seat test.
It uses a double acting type actuator with a pressure rating of 8 bar.
This valve complies with the standards BS5155, API609, and IS13095.
The valve features a nitrile type seat.
It is used for controlling air flow through a pipe or duct, with two positions: open and closed.
The valve is equipped with self-lubricated sliding bearings for improved performance.
The disc is made of SG iron (ASTM A536).
The valve operates by opening to allow air to pass through and closing to prevent air flow.
Key features include easy installation, low leakage, and a long service life.
The model number of this pneumatic actuator butterfly valve is UPC-PBV-416.
