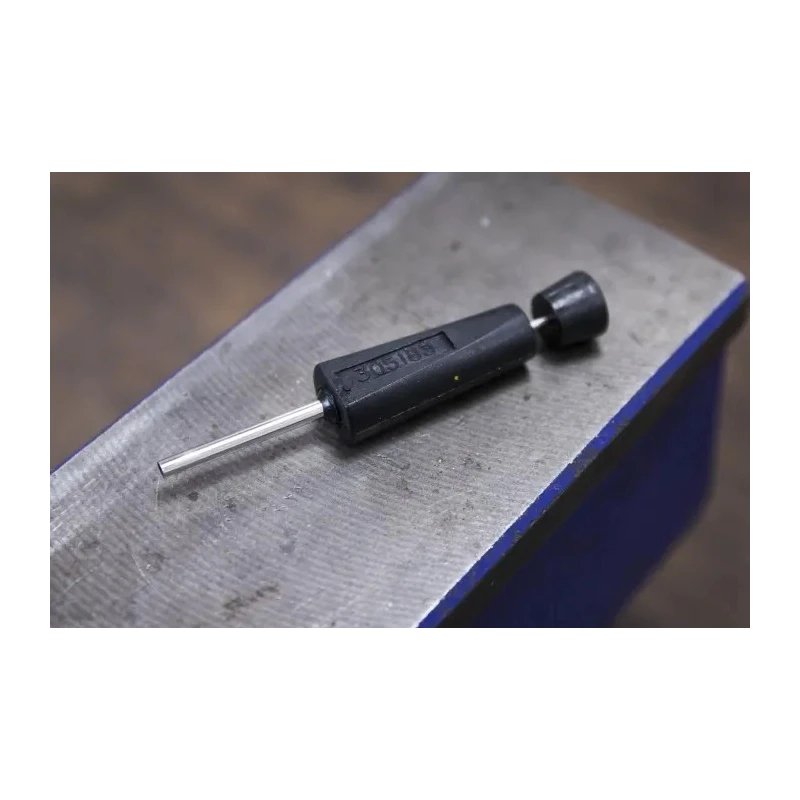

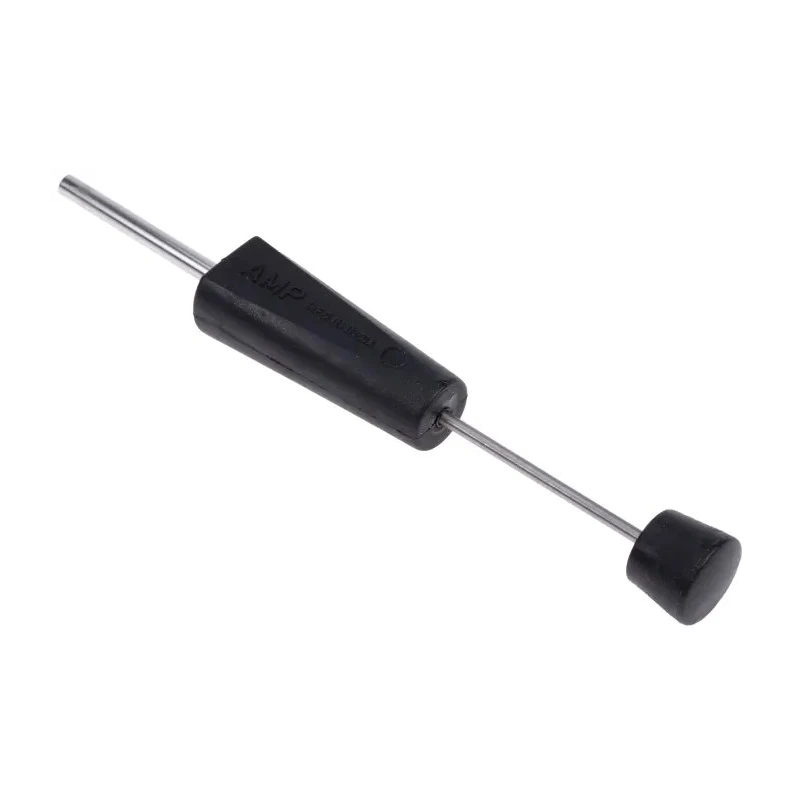

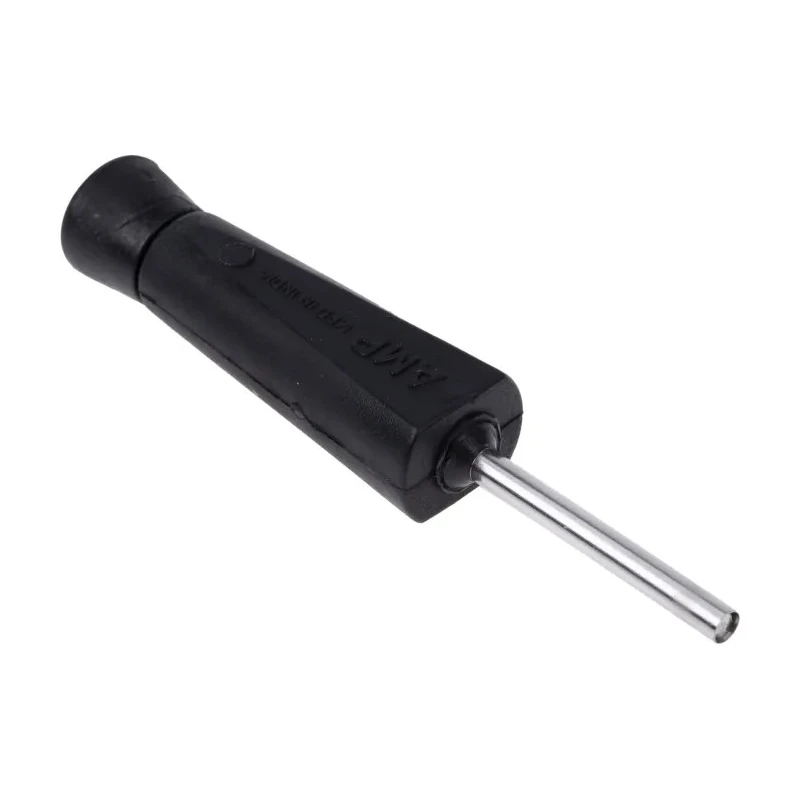

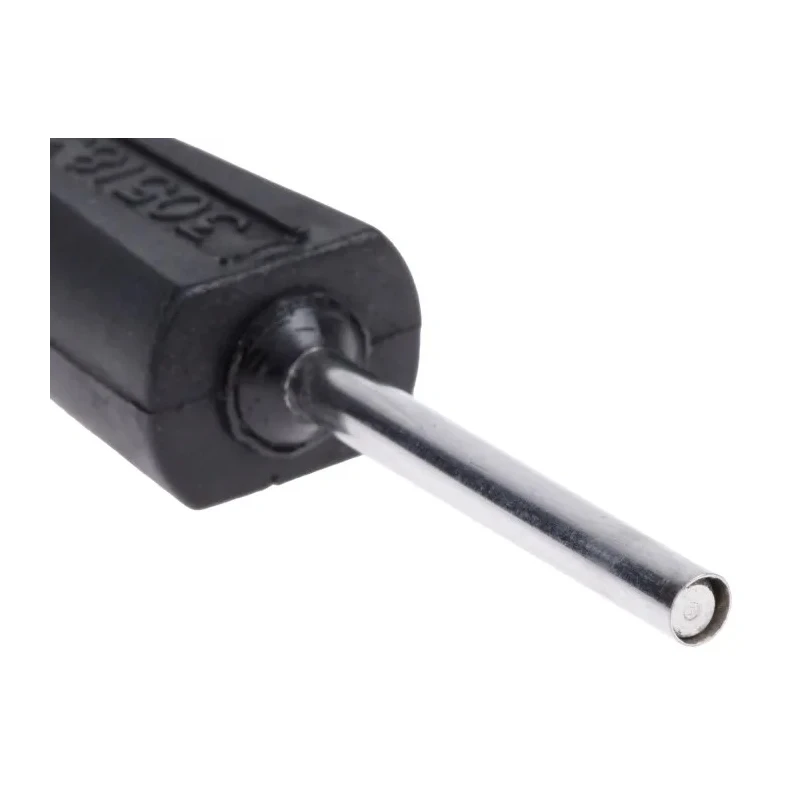

TE Connectivity Crimp Extraction Tool CPC M Series, Contact Size 26/14 AWG 305183
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -55 - 90 °C |
| Model | 305183 |
| Series | CPC, M |
| Sub Type | Extraction Tool |
| Contact Type | Crimp |
| For Use With | Multimate Connectors |
| Contact Size | 26/14 AWG |
| Contact Base Material | Brass |
| Contact Current Rating (Max) (A) | 13 A |
| Contact Mating Area Plating Thickness | .76 μm [30 μin] |
| Insertion & Extraction Tool Type | Contact Extraction |
| Insertion & Extraction Tool Application | Contact-to-Housing |
| TE Connectivity Extraction Tool, CPC Series, Plug, Socket ContactBrand | TE Connectivity |
Key Features
- Compatible with Multimate connectors for reliable insertion and extraction.
- Suitable for contact-to-housing applications, enhancing efficiency in connector maintenance.
- Operates reliably within -55 to 90 °C temperature range for diverse environments.
- Constructed with brass contact base material and stainless steel springs for durability.
- Supports 5mm pitch panel or free mounting with higher pin counts than Mate-N-Lok series.
- Features .76 μm plating thickness on the contact mating area ensuring consistent conductivity.
- Ideal for industrial, electrical, and maintenance applications requiring precise crimp contact extraction.
Product Description
TE Connectivity 305183 Crimp Extraction Tool CPC M Series is engineered for the precise extraction of crimp contacts sized 26/14 AWG. This extraction tool supports contact-to-housing operations and is designed to work seamlessly with Multimate connectors.
The tool features a brass contact base complemented by stainless steel springs and insulation support, ensuring robustness and long service life. It operates efficiently in temperatures ranging from -55 to 90 °C, making it suitable for industrial and electrical maintenance tasks.
The CPC M series connectors offer a 5 mm pitch designed for panel or free mounting, supporting a higher pinout density than the TE Mate-N-Lok series. This tool is essential for technicians working in assembly, repair, and connector maintenance in various sectors including manufacturing and electronics.
Compatible with Multimate connectors. Contact base material is brass with stainless steel springs. Operational temperature range between -55 and 90 °C. Supports contact sizes from 26 to 14 AWG. Extraction tool type designed specifically for contact-to-housing use.
Higher pinout capacity connectors compared to Mate-N-Lok range. Contact mating area plating thickness of .76 μm ensures reliable connectivity.
This tool enhances productivity and reliability in mechanical, electrical, and industrial applications requiring specialized contact extraction solutions. Explore more tools and accessories from TE Connectivity in the EnvMart catalog for your professional needs.
Explore more products in our Extraction Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a temperature range of -55 to 90 °C, making it suitable for diverse industrial and electrical environments.
It supports crimp contacts sized 26/14 AWG, allowing for precise extraction in various applications.
The contact base material is brass, and it features stainless steel springs, ensuring robustness and reliability during use.
Yes, it is designed for use with Multimate connectors, facilitating effective contact-to-housing operations.
The contact mating area has a plating thickness of .76 μm, which ensures consistent conductivity during operation.
The maximum contact current rating is 13 A, which is suitable for various electrical applications.
This unit is specifically designed for contact extraction, enabling efficient removal of crimp contacts from housings.
It supports 5 mm pitch panel or free mounting, accommodating higher pin counts than the Mate-N-Lok series.
It is ideal for industrial, electrical, and maintenance applications that require precise crimp contact extraction.
The country of origin for this tool is India.
This model is classified as an extraction tool, specifically for contact-to-housing applications.
It belongs to the CPC M series, which is designed for enhanced efficiency in connector maintenance.
