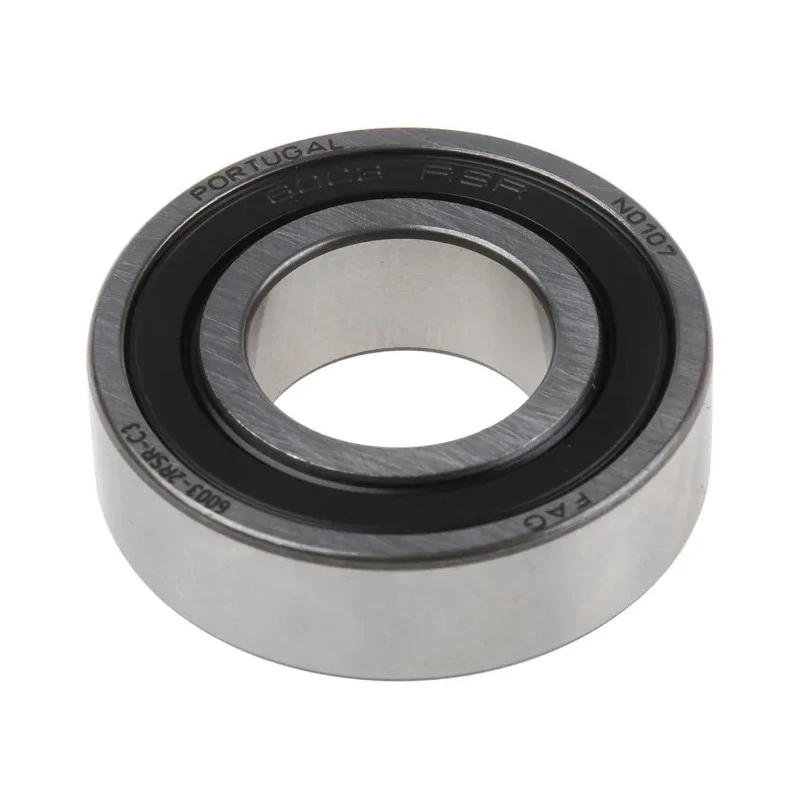

FAG Single Row Deep Groove Ball Bearing 17 mm ID, 35 mm OD, 10 mm Width, Sealed Ends, C3 Clearance 6003-2RSR-C3

FAG 6003-2RSR-C3 is a high-quality single row deep groove ball bearing designed to provide robust and reliable support for rotating shafts in various industrial applications. This bearing features a 17 mm inside diameter and a 35 mm outside diameter with a 10 mm race width, making it suitable for compact assemblies where precise shaft rotation is required.

The bearing incorporates steel balls and a steel cage, engineered to maintain consistent spacing of the rolling elements and ensure long fatigue life under varying load conditions. The sealed ends are engineered to prevent ingress of contaminants such as dust and moisture while retaining lubricant, which significantly extends the maintenance interval and enhances operating reliability.

The C3 internal clearance specification allows for additional radial play, accommodating thermal expansion and slight misalignments that may occur in operation without causing excessive bearing preload. This is critical in applications with variable temperatures or assembly tolerances.

With a static load rating of 3.25 kN and dynamic load rating of 6.4 kN, the FAG 6003-2RSR-C3 bearing is capable of handling light to moderate radial loads efficiently. Its limiting speed of 11,800 revolutions per minute supports high-speed motor and spindle applications.

Typical use cases include precision motors in automation equipment, spindle supports in small electrical drives, DC and stepper motors in electronic assemblies, idler shafts in mechanical conveyors, and compact gearboxes in industrial machinery.

This bearing features sealed ends to prevent contamination and retain lubrication during operation. Steel ball and cage materials provide durable and consistent performance. The C3 internal clearance accommodates thermal expansion and minimizes preload effects.

Suitable for high-speed applications with a limiting speed of 11,800 rpm. Static load rating of 3.25 kN and dynamic load rating of 6.4 kN allow reliable radial load support. Designed for precision motors, spindle supports, conveyors, and compact gearboxes.

Parallel bore design ensures accurate shaft fitment and alignment. Explore FAG Ball Bearings and other industrial components in the EnvMart catalog for trusted quality and comprehensive technical support.
