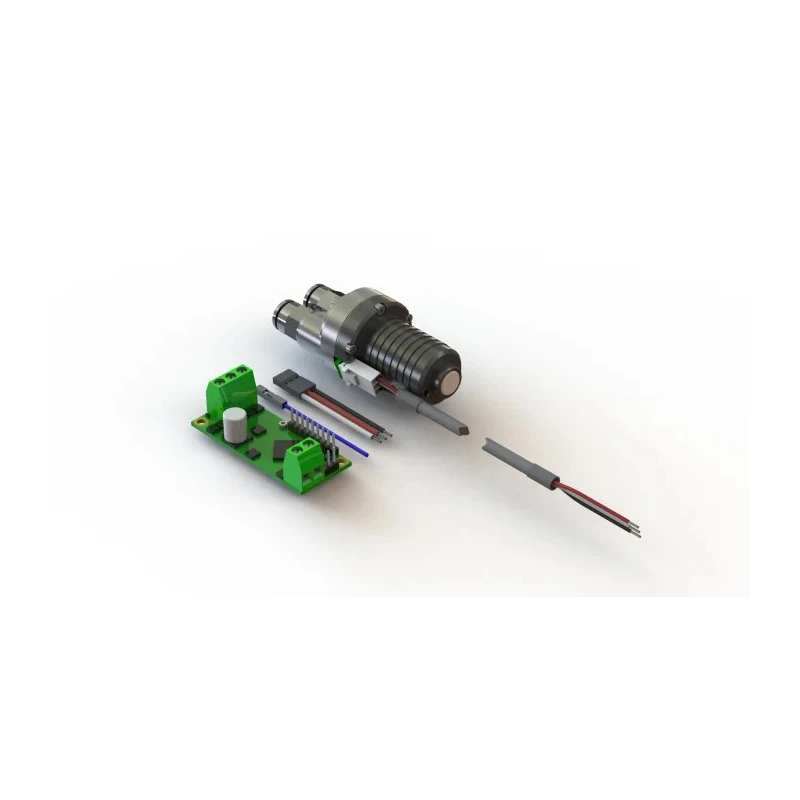

RS PRO High Pressure Micro Water Pump 400ml/min, 28V & 6V, 10 Bar, Anodised Aluminium Body, IP45, Brushless 125-3562
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Body Material | Anodised Aluminium |
| Maximum Operating Pressure | 10 bar |
| Inlet Connection Type | Push-Fit |
| Model | 125-3562 |
| IP Rating | IP45 |
| Maximum Fluid Temperature | 80°C |
| Input power | 28W |
| Supply Voltage | 28, 6V |
| Maximum Flow Rate | 400ml/min |
| Inlet Connection Size | 6 mm |
| Standards/Approvals | CMRT, RoHS Directive 2011/65/EU, SVCH, 3TG and REACH compliant |
| Inlet Thread Standard | BSP |
| RS PRO 6 → 24 V 10 bar Water Pump, 400ml/minBrand | RS PRO |
| RS PRO 6 → 24 V dc 10 bar Direct Coupling Centrifugal PumpBrand | RS PRO |
Key Features
- The pump features anodised aluminium body for durability and chemical resistance.
- Operates with both 28V and 6V input voltages for flexible integration.
- Maximum flow rate of 400ml/min ideal for precision and cooling systems.
- Offers high pressure operation up to 10 bar for industrial and laboratory use.
- Includes a sensorless, brushless external controller with reversible flow capability.
- Self-priming design enables ease of installation and operation.
- BSP push-fit inlet/outlet connections sized at 6 mm.
- Maximum fluid temperature rating of 80°C supports hot and cold flow mediums.
Product Description
RS PRO 125-3562 High Pressure Micro Water Pump is engineered for precise liquid movement in demanding environments. Designed with a brushless, sensorless external controller and EQi Driver, it delivers consistent pulseless flow at both high and low pressures for laboratory, industrial, and medical applications. The self-priming operation and reversible flow configuration provide exceptional adaptability for installation and use.
The pump has an anodised aluminium body, offering superior durability and resistance to most chemicals and solvents. Dual voltage input support of 28V and 6V allows flexible setup across equipment types. Provides a maximum flow rate of 400ml/min and pressure up to 10 bar, making it suitable for cooling systems, fuel cells, and precision lubrication.
Push-fit BSP inlet and outlet connections, each sized at 6 mm, enable leak-resistant, efficient installation. Maximum fluid temperature of 80°C ensures compatibility with hot and cold liquids. Integrated EQI-MG1 controller allows speed and flow regulation via onboard potentiometer or external analogue control (0-4V).
The driver auto-adjusts pump speed and supports reversible flow operation. High chemical resistance, compact form factor, and IP45 ingress protection enhance versatility and reliability. Typical industrial use cases include medical equipment, high-pressure fuel pumps, cooling systems, laboratory dosing and metering, as well as precision lubrication circuits.
This RS PRO model supports quality standards compliant with CMRT, RoHS Directive 2011/65/EU, SVCH, 3TG and REACH. Browse more Water Pump solutions and industrial equipment on EnvMart for tailored applications and proven brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this model is 400ml/min, making it suitable for precision applications.
This pump can operate at a maximum pressure of 10 bar, which is ideal for various industrial and laboratory applications.
It operates with both 28V and 6V input voltages, providing flexibility for integration with different systems.
The maximum fluid temperature rating is 80°C, allowing it to handle both hot and cold liquids.
It features BSP push-fit inlet and outlet connections, each sized at 6 mm, ensuring efficient and leak-resistant installation.
The body of this pump is made from anodised aluminium, which provides durability and chemical resistance.
Yes, it includes a sensorless, brushless external controller that allows for speed and flow regulation.
Typical applications include medical equipment, cooling systems, laboratory dosing, and precision lubrication circuits.
This model has an IP45 ingress protection rating, which helps protect it from dust and water ingress.
It complies with several standards including CMRT, RoHS Directive 2011/65/EU, SVCH, 3TG, and REACH.
Yes, this model features a self-priming design, which facilitates ease of installation and operation.
