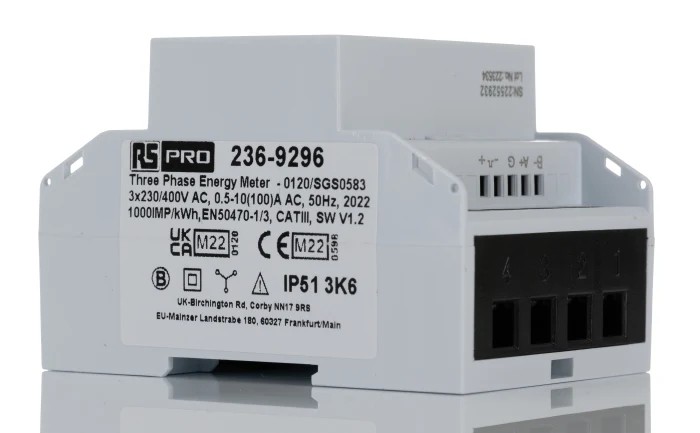

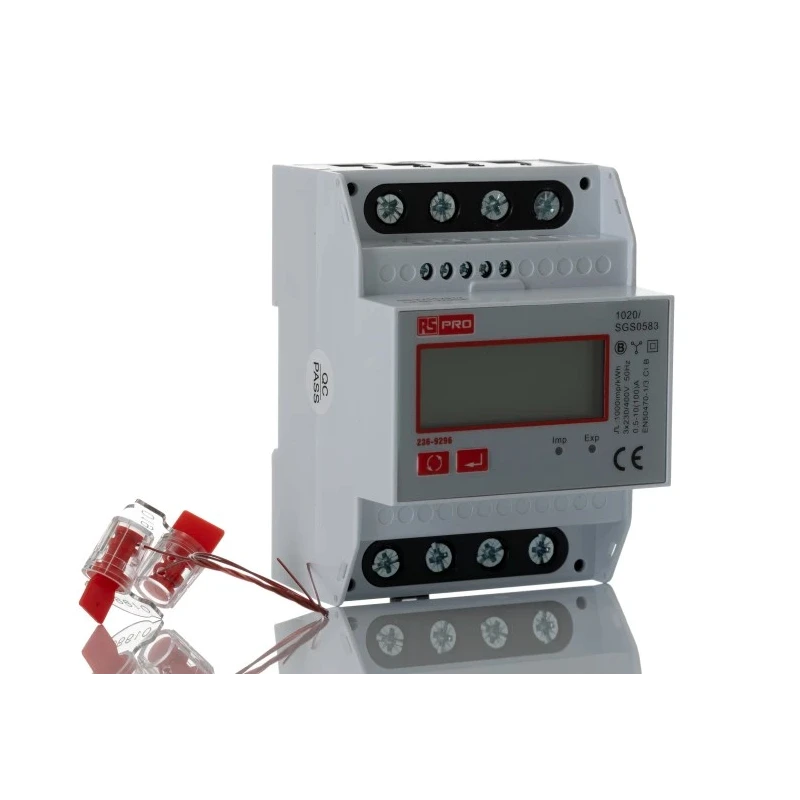

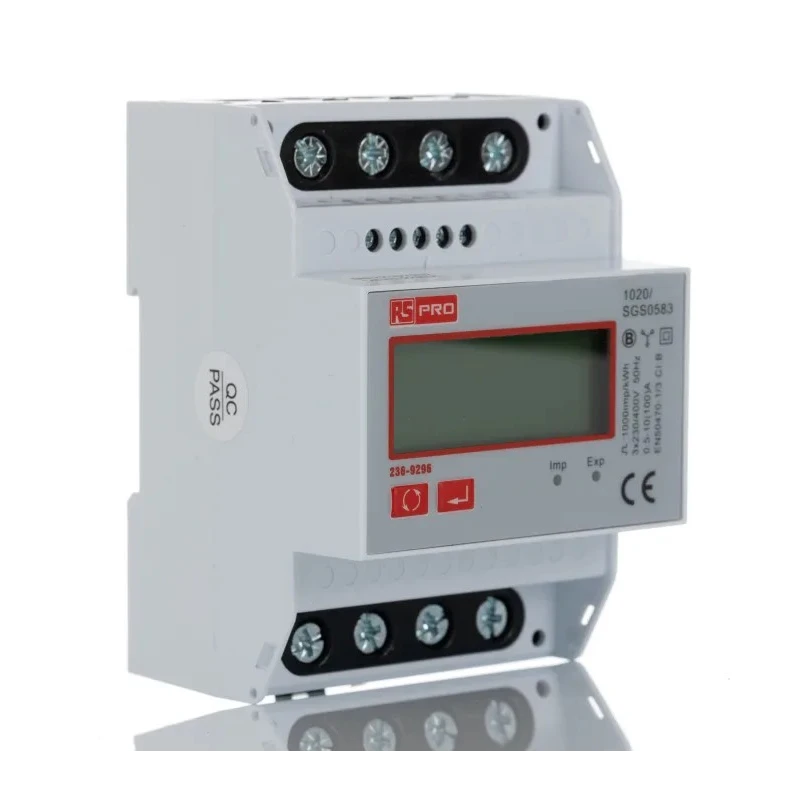

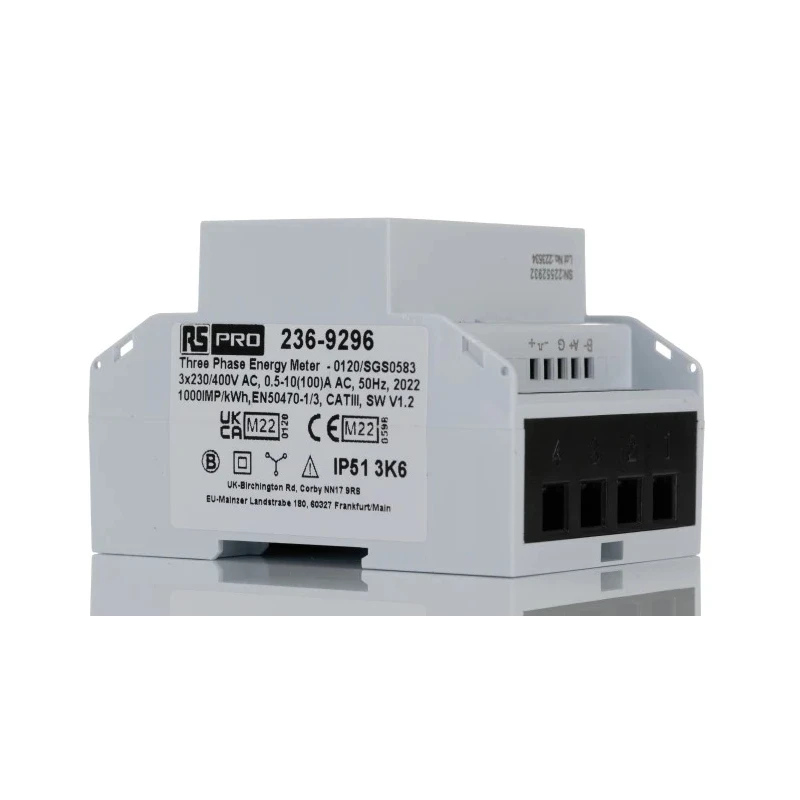

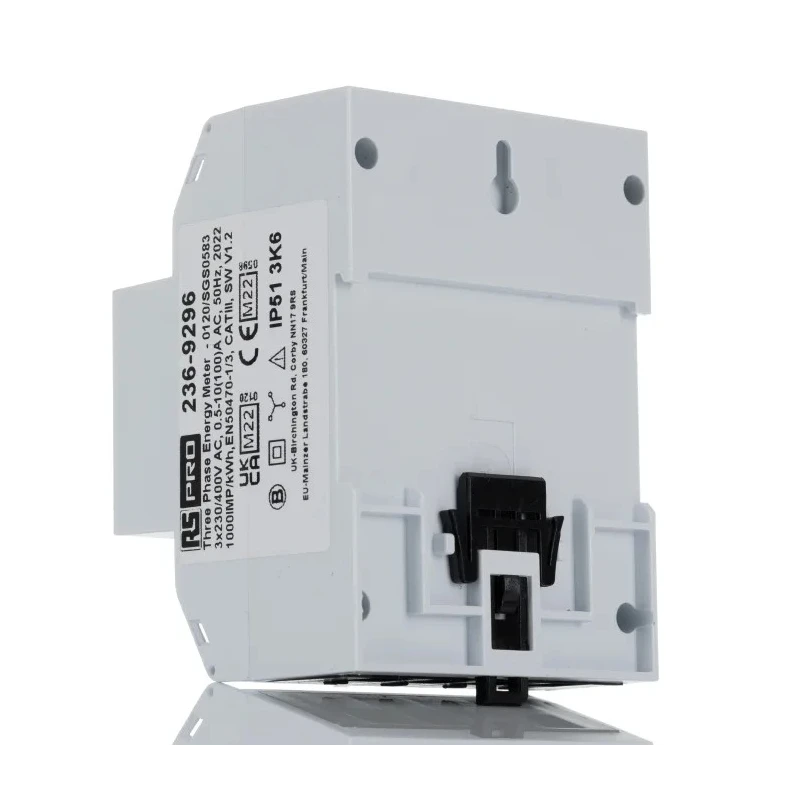

RS PRO 3 Phase LCD Backlight Energy Meter AP25 100A Modbus RS485 236-9296
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD Backlight |
| Brand | RS PRO |
| Model | 236-9296 |
| Depth | 66mm |
| Series | AP25 |
| Maximum Load | 100 A |
| Maximum Operating Temperature | 70°C |
| Meter Type | Energy Meter |
| Number Of Digits | 7 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Operational Voltage | 3x230V/400V AC |
| Standards/Approvals | EN62053-21, EN50470-3, RoHS |
Key Features
- Measures and displays electrical power quality parameters for three-phase networks.
- Directly connects to a maximum load of 100A AC circuit, suitable for sub-billing and revenue billing.
- Features Modbus RS485 communication and pulsed output for remote reading.
- LCD backlit display with 7 digits for clear visibility in industrial environments.
- Capable of measuring active energy (kWh), current, voltage, power per phase, total power, and import/export energy.
- MID B&D certified energy meter for compliance with EN62053-21 and EN50470-3 standards.
- Operational voltage range 3x230V/400V AC, with temperature tolerance from -40°C to 70°C.
- Compact depth of 66mm, suitable for DIN module installations.
Product Description
RS PRO 236-9296 is a 3 Phase LCD Backlight Energy Meter from the AP25 series, designed for accurate monitoring of electrical parameters in industrial and commercial environments. Brand RS PRO is associated with reliable, rigorously tested products that meet significant industry standards.
The meter is equipped with a bright LCD backlit display that allows easy reading of parameters like active energy (kWh), current, voltage, and power per phase. Its 7-digit display ensures precise measurement, supporting operations where sub-billing and revenue calculation is needed.
This model integrates Modbus RS485 communication and a built-in pulsed output, supporting remote monitoring and data transmission for building automation and energy management systems. Designed for three-phase (3p4w) networks, it directly connects to circuits with a maximum load of 100A AC without requiring external current transformers for most setups.
MID B&D certification ensures the meter complies with EN62053-21 and EN50470-3 standards, making it suitable for applications needing regulatory-approved energy measurements. Operating voltage covers 3x230V/400V AC, and the device withstands environments with temperatures ranging from -40°C up to 70°C.
Measures active energy (kWh), current, voltage, and power per phase, as well as total power and import/export energy. Modbus RS485 communication and pulsed output allow integration into automation and building management systems.
LCD backlight display for easy visibility in industrial installations. MID B&D certified for tariff-based and sub-billing energy applications. Operational temperature range makes it adaptable to challenging industrial conditions.
Compact depth (66mm) allows simple DIN rail module installation. Compliance with EN62053-21, EN50470-3, and RoHS standards. Ideal for process control, energy management, industrial plants, and commercial buildings.
Industries using RS PRO 3 phase meters include manufacturing, process automation, commercial energy management, HVAC, building management, and more. This meter enables accurate energy tracking for operational improvements and cost control.
Explore more from RS PRO and browse the full Energy Meter category for industrial use cases on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this energy meter is 100A AC, allowing it to connect directly to circuits without needing external current transformers for most setups.
It operates within an operational voltage range of 3x230V/400V AC, making it suitable for various three-phase networks.
This model can measure active energy (kWh), current, voltage, power per phase, total power, and import/export energy.
It features Modbus RS485 communication and a pulsed output for remote reading and integration into building automation systems.
The operating temperature range for this energy meter is from -40°C to 70°C, allowing it to function in challenging industrial environments.
It is equipped with an LCD backlight display that features 7 digits for clear visibility in industrial settings.
Yes, it is MID B&D certified and complies with EN62053-21 and EN50470-3 standards, making it suitable for regulatory-approved energy measurements.
The depth of this energy meter is 66mm, which allows for simple installation on DIN rail modules.
It is suitable for process control, energy management, industrial plants, and commercial buildings, enabling accurate energy tracking.
The meter's capability to measure active energy and its compliance with MID B&D certification make it suitable for sub-billing and revenue billing applications.
Industries such as manufacturing, process automation, commercial energy management, HVAC, and building management can benefit from using this energy meter for accurate energy tracking.
The model number of this energy meter is 236-9296, part of the RS PRO AP25 series.
