TE Connectivity AMPLIMITE Series Insertion & Extraction Tool Kit for Pin Contacts, Interchangeable Tips, Built-In 91285-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE Series Insertion & Extraction Tool Kit for Pin Contacts, Interchangeable Tips, Built-In 91285-1

Name: TE Connectivity AMPLIMITE Series Insertion & Extraction Tool Kit for Pin Contacts, Interchangeable Tips, Built-In 91285-1
Brand: TE Connectivity
SKU: 87255
Price: 103.19 USD
Availability: InStock



Category Extraction Tools Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Model	91285-1
Series	AMPLIMITE
Note	this hand tool is intended for low volume applications
Sub Type	Extraction & Insertion Tool
Contact Type	Pin
Contact Size	20, 22
1 x 543382-5	HD-20 28-20AWG Insertion Tip
1 x 1-543382-0	HD-20 24-18AWG Extraction Tip
1 x 1-543382-1	HD-20 28-24AWG Extraction Tip
1 x 543382-6	HD-20 Posted Extraction Tip
1 x 543382-7	HD-20 Posted Insertion Tip
1 x 543382-8	HD-22 28-22AWG Insertion/Extraction Tip

Key Features

Kit includes handle, cap, plug, hex wrench, and six insertion/extraction tips.
Interchangeable tips enable easy switching between insertion and extraction tasks.
Built-in tip storage inside handle for efficient access and organization.
Colour-coded tips for quick identification and safe use.
Supports HD-20 and HD-22 pin contacts in AMPLIMITE connectors.
Hex wrench provided for easy tip changes and secure operation.
Suitable for D-subminiature connector maintenance and assembly tasks.
Intended for low volume applications in industrial and laboratory settings.

Product Description

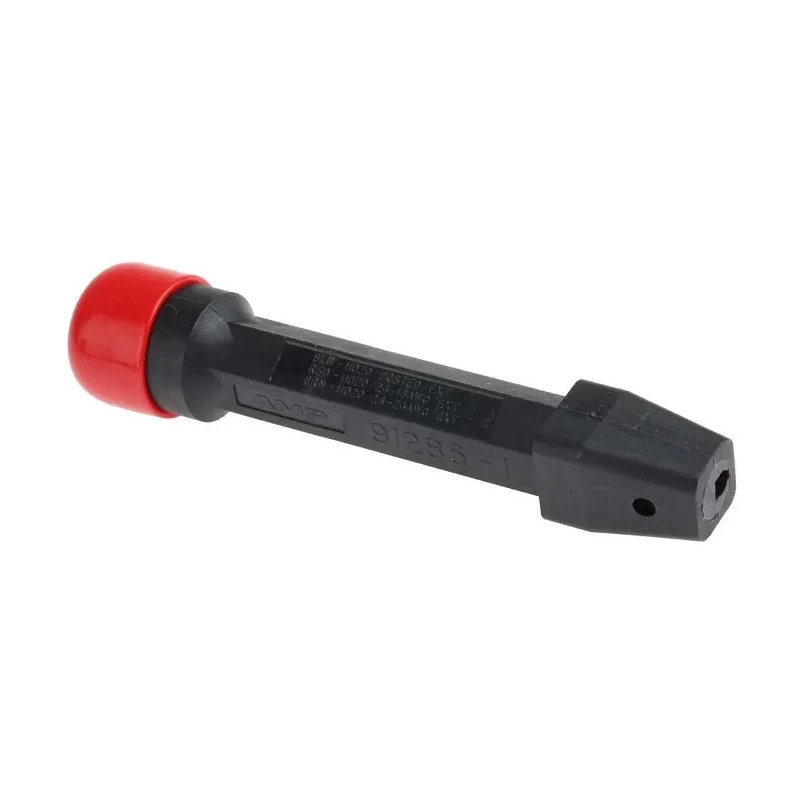

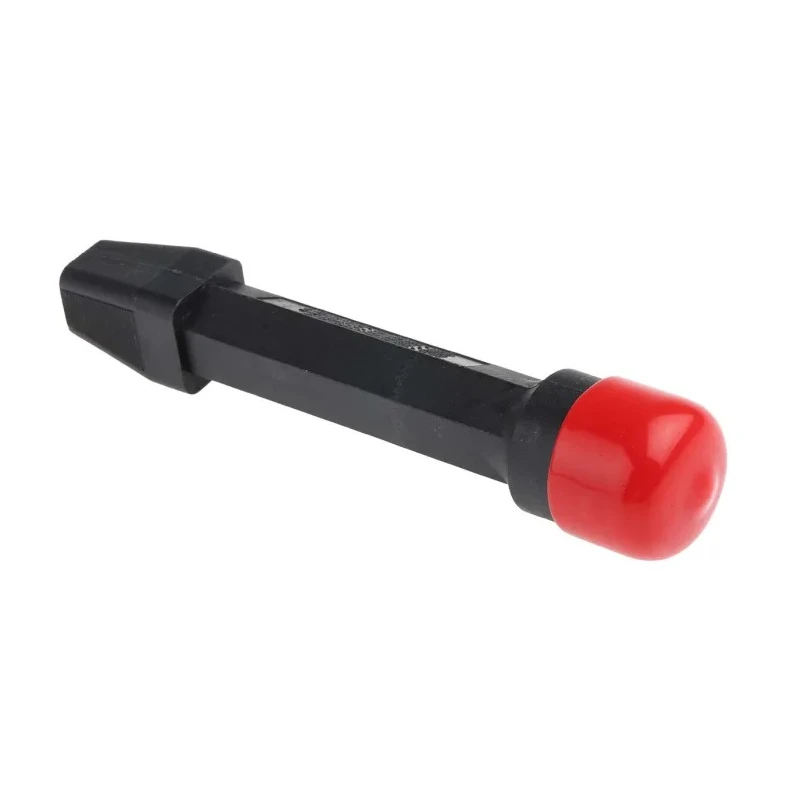

TE Connectivity 91285-1 AMPLIMITE Series Insertion & Extraction Tool Kit is a specialized hand tool designed for low-volume assembly and maintenance of HD-20 and HD-22 pin contacts within AMPLIMITE D-subminiature connectors. The tool kit provides a versatile solution for contact-to-housing tasks, ensuring precision and reliability during insertion and extraction procedures.

The kit comes complete with a robust handle, cap, plug, hex wrench, and six interchangeable insertion and extraction tips. The innovative built-in storage compartment located within the handle allows for convenient access and organization of all tips during use, minimising downtime and enhancing workflow. Colour-coded tips further improve user efficiency, helping operators quickly identify the correct tip for each application while reducing the risk of mix-ups.

Designed to support both HD-20 and HD-22 contacts, the 91285-1 enables seamless transitions between insertion and extraction operations, making it ideal for technicians, engineers, and assembly personnel engaged in D-sub connector manufacturing, repair, prototyping, and laboratory work. The tool is supplied with a hex wrench, facilitating easy and secure tip changes to meet varying connector requirements.

This kit is recommended for low-volume industrial, commercial, and laboratory applications where connector integrity is critical. It is particularly suited for tasks involving D-subminiature communication equipment, electronic instrumentation, and modular assemblies requiring precise pin contact management.

Included tips: 1 x HD-20 28-20AWG insertion tip, 1 x HD-20 24-18AWG extraction tip, 1 x HD-20 28-24AWG extraction tip, 1 x HD-20 posted extraction tip, 1 x HD-20 posted insertion tip, 1 x HD-22 28-22AWG insertion/extraction tip. Replacement tips are available separately.

Industrial and laboratory professionals benefit from the ergonomic design, efficient built-in storage, and colour-coded tips that together simplify connector assembly and service. The TE Connectivity 91285-1 AMPLIMITE Series tool kit is an essential addition for environments prioritizing accuracy, reliability, and versatility in connector handling.

For more specialised hand tools, browse EnvMart’s Extraction Tools category or TE Connectivity’s complete connector accessory selection.
