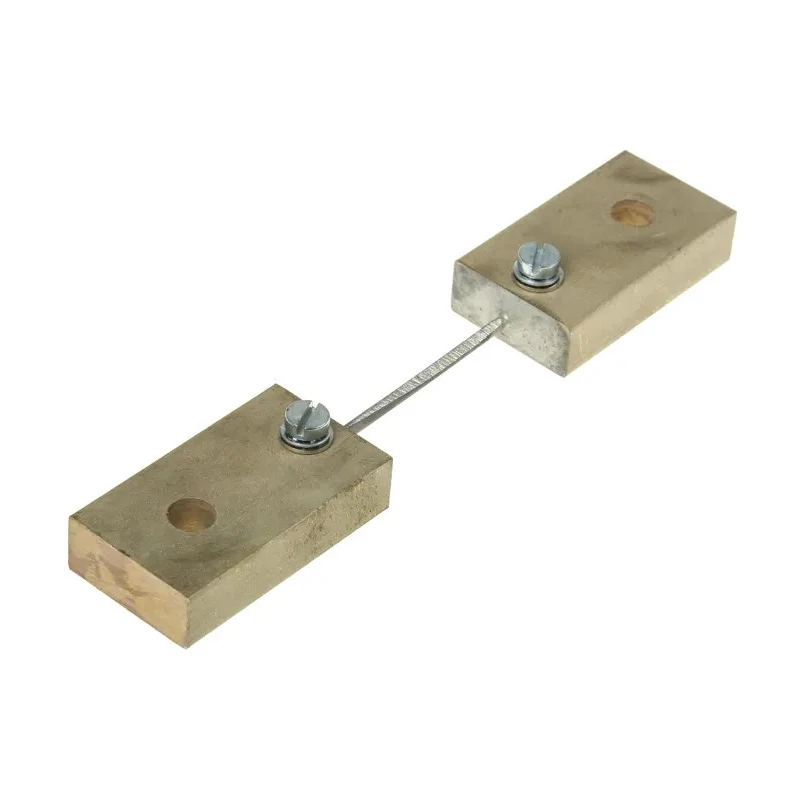

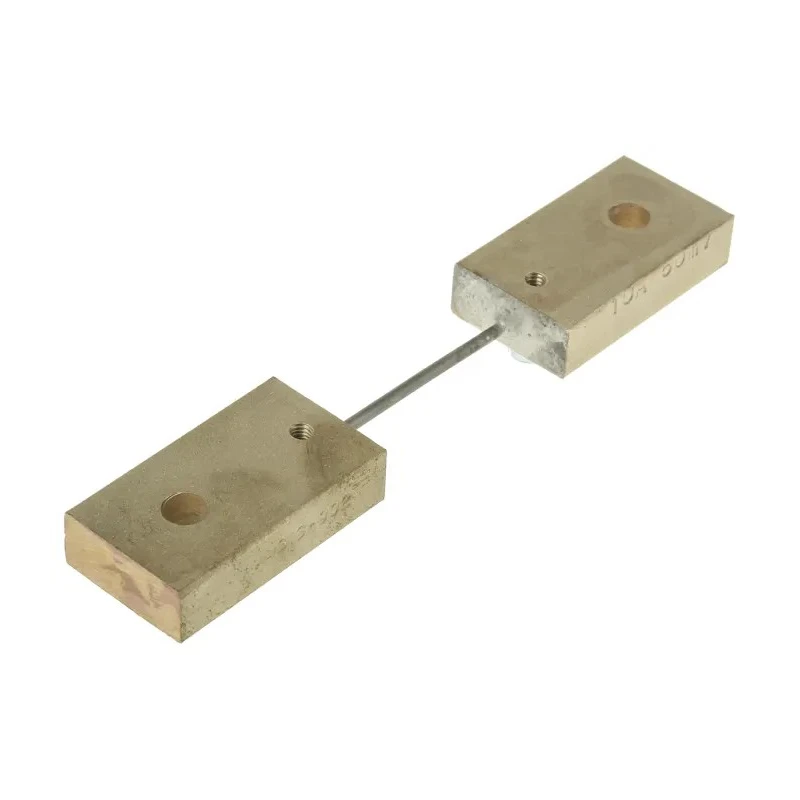

HOBUT Brass Ended Shunt 10A, 60mV, ±1% Accuracy SHB10A60

The HOBUT SHB10A60 Brass Ended Shunt is a precision accessory designed for current measurement in electrical panels, process control units, and industrial instrumentation. This shunt is engineered to deliver a stable output voltage of 60mV at a rated current of 10A, ensuring reliable and accurate readings for ammeters and panel meters configured for full scale deflection at 60mV and an input impedance of 75Ω or more.

Constructed with brass ends, the unit guarantees efficient electrical contact and resistance to corrosion, making it suitable for use in harsh environments. The ±1% accuracy rating supports consistent measurement performance, essential for critical monitoring and control applications. The device operates effectively within a wide temperature range from -20°C to 40°C, matching industrial requirements where temperature variation may occur.

Electrical shunts like the SHB10A60 are often integrated into power distribution systems, process control panels, and laboratory measurement setups to enable precise current monitoring. Its robust design ensures reliable operation over extended periods, minimizing maintenance and calibration needs. Brass construction provides both durability and optimal conductivity, further supporting longevity and measurement fidelity.

Typical applications include integration with DIN dc ammeters, panel meters for electrical testing, manufacturing process control, laboratory instrumentation, and commercial electrical monitoring systems. The shunt's compliance with standard measurement protocols makes it versatile across various sectors.

Industries utilising this shunt include manufacturing, laboratory research, process industries, electrical utilities, and commercial installations where accurate DC current measurement is crucial for operation and safety.
