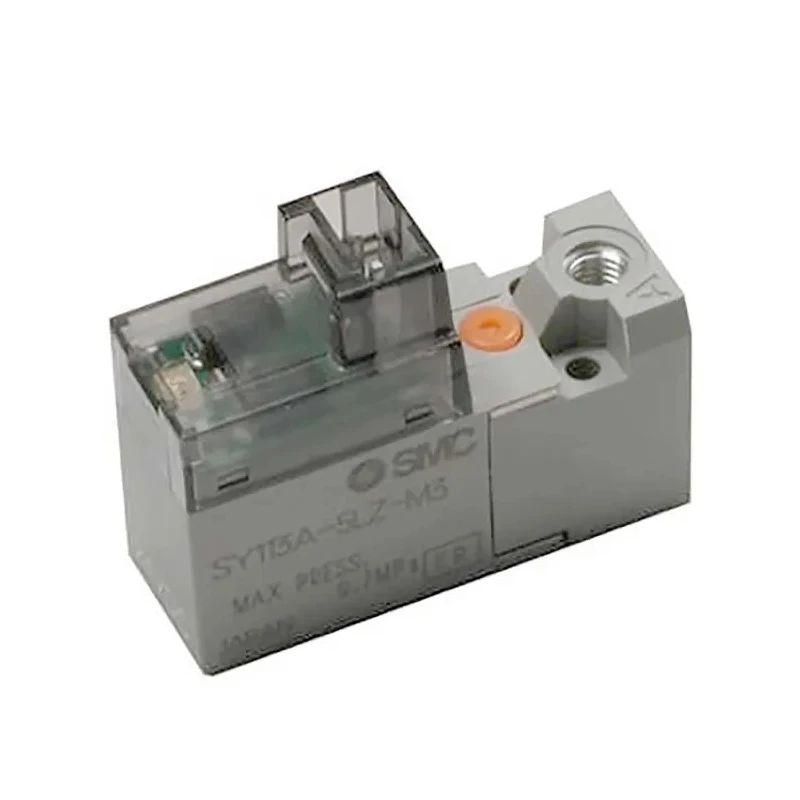

SMC Solenoid Pilot Valve 3/4 NC, Metric Thread, 24V, SY100 Series

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve 3/4 NC, Metric Thread, 24V, SY100 Series



Category Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	0.7 Mpa
Response time	10ms or less
Height	27.8mm
Length	34.5mm
Model	SY100
Width	15.5mm
Mount Type	Base
Series	SY100
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	4
Port Size	M3 x 0.5
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	11.78L/min
Cycle Life	100 million cycles (by SMC life test)
Standards/Approvals	CE
Connection Thread Standard	Metric
Minimum Pilot Pressure	0MPa
Valve Function	3/4 NC
Electrical Connection Type	L-Plug Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.75W
Ambient & fluid temperature	max. 50°C
mm²	0.14 standard style

Key Features

Solenoid pilot valve for precise pneumatic control.
Metric M3 x 0.5 port size ensures secure connections.
Operates on 24V DC for standard industrial integration.
Maximum operating pressure of 0.7 MPa supports demanding tasks.
Durable resin body for extended service life.
Rubber seal enhances leak resistance and reliability.
Single solenoid design with fast 10 ms response time.
Rated for 100 million cycles to support continuous operation.

Product Description

SMC SY114A-5LOU-Q is a solenoid pilot valve engineered for precise pneumatic control in industrial settings, offering high reliability and performance in demanding automation and process environments. As part of the SY100 Series, this solenoid valve operates on 24V DC and is used to actuate pneumatic cylinders or control air routing in manufacturing, robotics, or laboratory applications.

The valve features a metric M3 x 0.5 port size, allowing secure and leak-resistant connections to compatible tubing and fittings. With a maximum operating pressure of 0.7 MPa and maximum flow rate of 11.78 L/min, it delivers consistent performance suitable for a wide range of pneumatic systems. The valve body is made from high-strength resin, designed to withstand mechanical stress and extended duty cycles.

Utilizing a rubber sealing material, the solenoid pilot valve minimizes air leakage and supports long-term reliability. The single solenoid design achieves fast actuation, with a response time of 10 milliseconds or less, vital for high-speed industrial automation. The base mount configuration is ideal for manifold installations, simplifying integration within control panels or modular pneumatic setups.

Electrical connection is via the L-Plug connector, ensuring secure contacts and quick replacement during maintenance. The SY114A-5LOU-Q supports four positions and three ports, enabling versatile control schemes including 3/4 normally-closed (NC) valve function. It is designed for environments with ambient and fluid temperatures up to 50°C and minimum operation down to -10°C.

This SMC valve is CE certified and suitable for use in industrial, laboratory, manufacturing, and automation applications where accurate and robust pneumatic control is required. Its 0.75W solenoid power consumption makes it energy efficient and compatible with modern control equipment. The valve's tested cycle life of 100 million cycles enables extended use in continuous production environments.

The SY100 Series solenoid valves are widely adopted in pneumatic systems for manufacturing, packaging, assembly lines, and industrial automation, offering modular flexibility and strong performance. Browse more SMC solenoid valves in the Solenoid Valves category for additional models and specifications.
