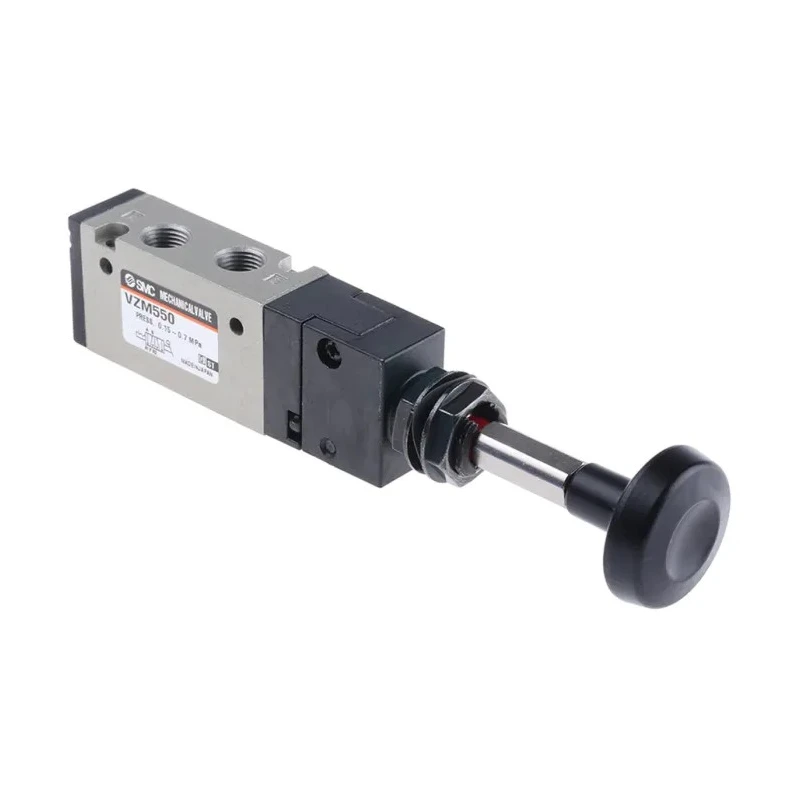

SMC Push Pull Mechanical Valve, Rc/NPT Rc 1/8, 0.7 MPa, 5/2, 18 mm VZM500

Free Delivery in India | Lowest Global Shipping Charges

SMC Push Pull Mechanical Valve, Rc/NPT Rc 1/8, 0.7 MPa, 5/2, 18 mm VZM500



Category Pneumatic Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	142mm
Length	28mm
Model	VZM500
Width	18mm
Series	VZM500
Number Of Ports	5
Maximum Operating Temperature	60°C
Thread Size	1/8 in
Port Type	Exhaust
Number of Positions	2
Port Size	Rc 1/8
Minimum Operating Temperature	-5°C
Control Mechanism	Push Pull
Standards/Approvals	RoHS
Connection Thread Standard	Rc, NPT
Valve Function	5/2
Control Button/Switch Colour	Black
Norgren Knob Pneumatic Manual Control Valve X30 Series, G G 1/4, III BBrand	Norgren

Key Features

Push-pull mechanical actuation for flexible and reliable pneumatic control.
Maximum operating pressure of 0.7 MPa suitable for robust system applications.
Rc/NPT Rc 1/8 port sizing accommodates a variety of piping standards.

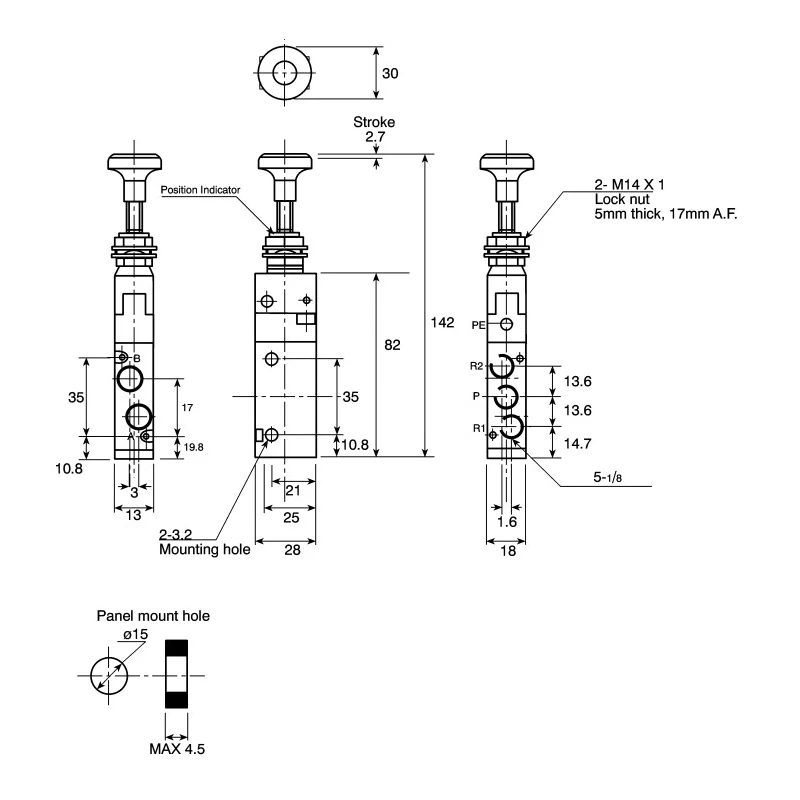

Compact form factor with 18 mm width, 142 mm height, and 28 mm length fits restricted installations.
Rated for operation between -5°C to 60°C, enabling use in varied environments.

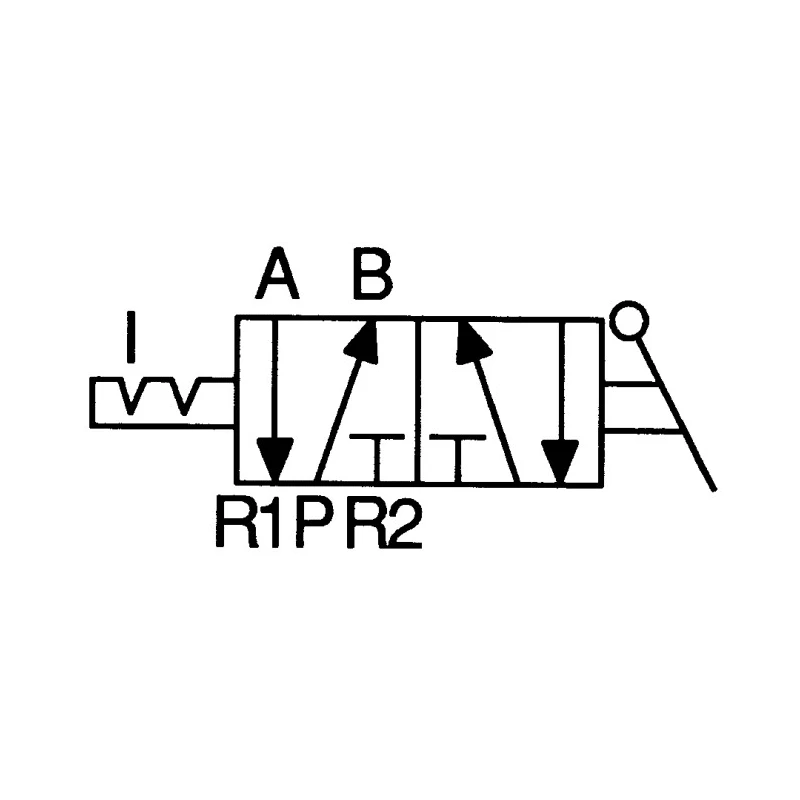

5/2 valve function supports five-port, two-position operation for diverse pneumatic systems.
Black control button or switch provides clear manual override.
Supports up to 300 cycles per minute for demanding industrial use.

Product Description

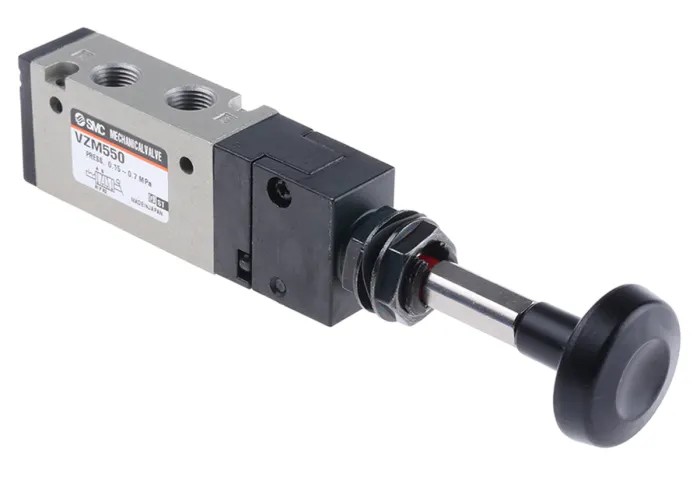

SMC VZM550-01-37 is a push-pull mechanical valve developed for compact pneumatic automation setups, operating in Rc/NPT Rc 1/8 port standards with a maximum pressure of 0.7 MPa. The five-port, two-position configuration makes it ideal for directing compressed air in industrial applications with limited space.

Designed with mechanical push-pull actuation, the valve provides robust and immediate control over pneumatic circuits. Its compact dimensions (142 mm height, 28 mm length, 18 mm width) make it suitable for installation in crowded equipment layouts. Thanks to Rc and NPT threaded connections, this valve allows for flexible piping arrangements and easy integration into existing setups.

The valve delivers consistent performance across a broad temperature range, from -5°C to 60°C, and supports frequent cycling up to 300 times per minute, making it highly suited for automated jigs and fast-moving pneumatic tooling. The black control button/switch offers clear indication and accessible manual intervention when needed.

With five ports and dual positions (5/2 valve function), users can route compressed air or exhaust to the desired outputs, including manifold applications requiring precise control. The external or internal pilot option enhances installation versatility, while RoHS compliance ensures safe materials and responsible manufacturing practices.

Application scenarios include industrial pneumatic systems, rapid valve cycling setups, manifold installations, and use in tooling where wiring or piping standards demand Rc/NPT Rc 1/8 compatibility. The valve is well-suited to environments where space constraints meet high-frequency actuation requirements, making it a valuable component in manufacturing, automation, process control, and laboratory equipment.
