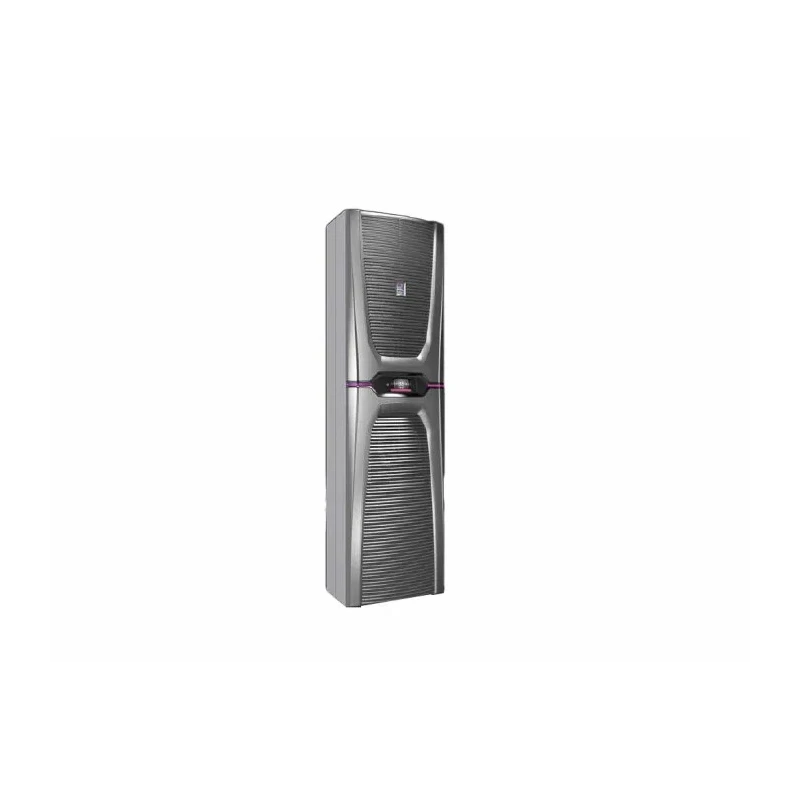

Rittal Blue e Series Enclosure Cooling Unit 2300m³/h, 5800W, 480V AC, Stainless Steel, IP55, 1.6m Height, Model 3189640

The Rittal Blue e Series enclosure cooling unit, model 3189640, is a sophisticated air conditioner engineered specifically for industrial enclosures, server cabinets, and control panels. With a maximum cooling output of 5800W and an air flow capacity of 2300m³/h, this unit is designed to efficiently dissipate heat in demanding environments to protect sensitive electronic and automation components.

This advanced unit utilizes hybrid cooling technology, integrating a passive heat pipe and an active inverter-driven refrigerant circuit. This system responds dynamically to changing thermal loads, providing efficient heat removal and energy savings of up to 75% compared to conventional systems. It helps reduce temperature fluctuations, thereby prolonging the service life of crucial electrical components inside the enclosure.

The Blue e Series supports multi-voltage operation up to 480V AC at 60Hz and is fully wall-mountable, offering flexibility in installation. Constructed from high-grade stainless steel, the housing boasts an IP55 rating, ensuring robust protection against dust ingress and water jets, making it suitable for industrial environments that demand high resilience.

The integrated touch screen interface offers intuitive control over the unit, allowing precise temperature settings between 20°C and 50°C. Energy-efficient operation is further enhanced by features such as a nano-coated condenser, automatic condensate evaporation, and fully wired plug-in terminal strips for easy connection. The use of R513a refrigerant optimizes cooling performance while maintaining environmental responsibility.

Key dimensions include a height of 1.6 meters, width of 450 mm, and depth of 393 mm, with a total weight of 71.2 kg. The supplied unit comes complete with mounting and assembly parts, ensuring straightforward installation for a range of enclosure applications. This cooling solution is ideal for applications in automation, manufacturing, power distribution, data centers, control engineering, and other industrial settings where enclosure temperature management is crucial.

The Rittal Blue e Series provides industry-leading energy efficiency, user-friendly operation, and a rugged build for demanding panel cooling needs. Explore the Rittal range in the Panel Air Conditioner category on EnvMart for more enclosure climate solutions.
