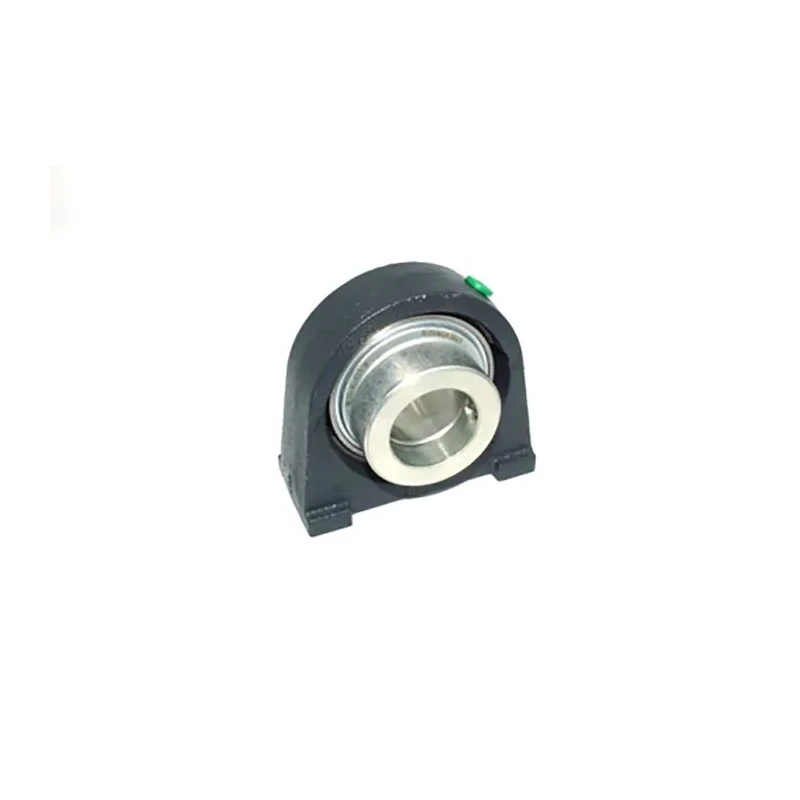

INA Plummer Block House Cast Iron 35mm ID, M10 Mount, 103x51.3x93mm, RSHE35-XL-N

INA RSHE35-XL-N is a plummer block house engineered for reliably housing rotary bearings in demanding mechanical environments. Built with high-strength cast iron, this housing is designed to withstand operational stress and maintain structural integrity, making it ideal for use in industrial machinery and fluid power systems.

The housing is purpose-designed for shafts with a 35mm internal diameter, providing accurate and secure fitment for radial ball bearings. Installation is facilitated by M10 mount holes, with a centre-to-centre spacing of 82.6mm, ensuring stable and easy mounting onto adjacent mechanical constructions. The overall housing dimensions are 103mm in length, 51.3mm in depth, and 93mm in height, supporting a compact footprint without compromising performance.

One of the key features of the RSHE35-XL-N unit is its ability to compensate for static angular misalignment of the shaft, thanks to a spherical bearing outer ring and a concave housing bore. This ensures optimal bearing alignment under variable operational conditions and reduces maintenance requirements.

With its centre height of 47.6mm, the plummer block maintains precise shaft positioning within assemblies. It is suitable for both locating and non-locating bearing applications where loads and speeds are moderate. This flexibility expands its applicability in various sectors such as mechanical machinery, fluid power transmission, rotary bearing assemblies, and equipment design.

The robust cast iron construction contributes to extended product life and energy savings, aligning with efficiency and sustainability goals in modern engineering practices. The RSHE35-XL-N also features compatibility with industry standards and is part of INA's RSHE series, renowned for reliability.

Applications include mechanical transmission, rotary bearing units, pillow block and plummer block installations within manufacturing, processing, construction, and laboratory environments.

Made from durable cast iron for enhanced structural integrity and extended service life. Accommodates shafts with 35mm internal diameter ensuring precise fitment. Features M10 mount holes and 82.6mm mount hole centre-to-centre for robust installation.

Overall housing dimensions: 103mm length, 51.3mm depth, 93mm height, suitable for compact mechanical layouts. Compensates for static angular misalignment due to concave housing bore and spherical bearing outer ring. Ideal for locating and non-locating bearing configurations under moderate loads and speeds.

Centre height of 47.6mm optimizes shaft positioning in equipment assemblies. Used in a wide range of mechanical, fluid power, and industrial applications.
