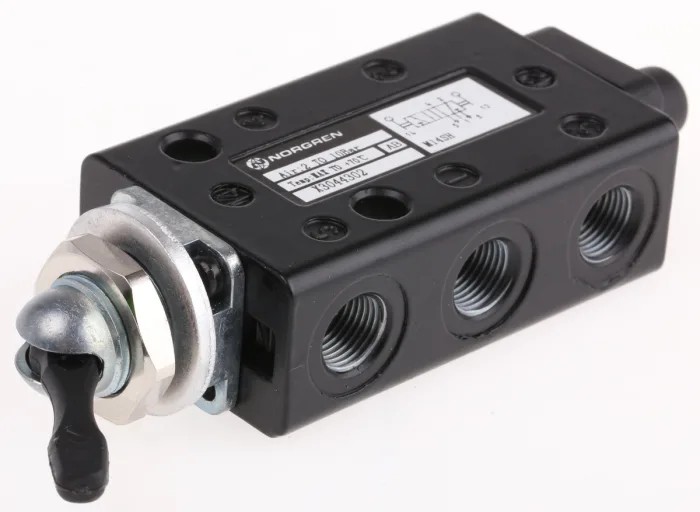

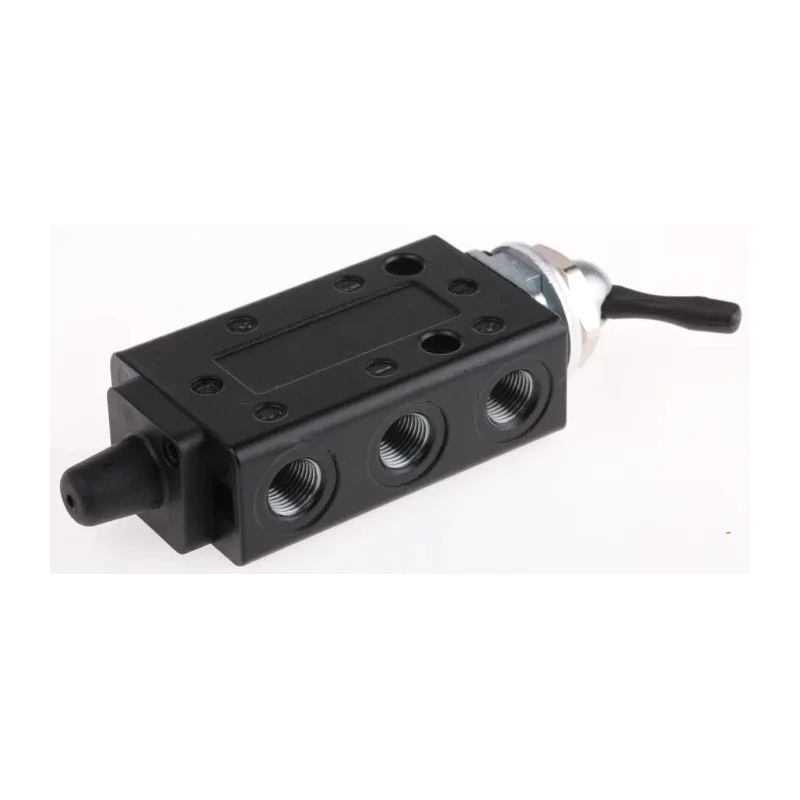

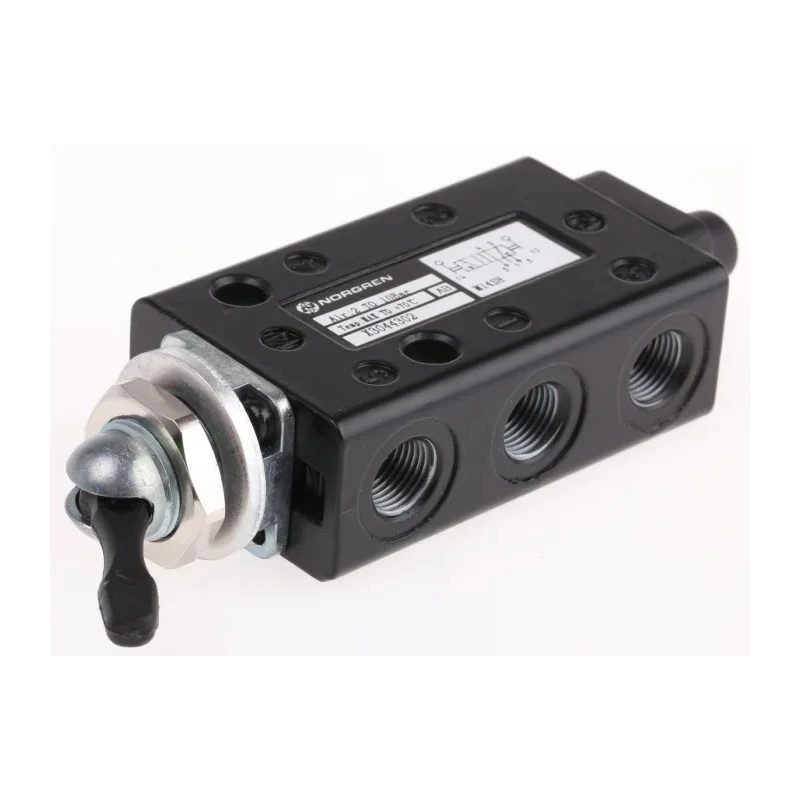

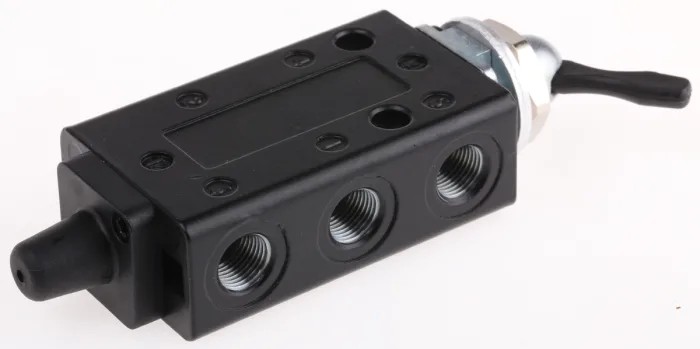

Norgren Toggle Pneumatic Manual Control Valve, X30 Series, 335 L/min, 10 Bar, 5/2 Way, Zinc Alloy, G 1/8, Threaded X3044302

Norgren X3044302 Toggle Pneumatic Manual Control Valve is a precision-engineered component designed for reliable manual control in pneumatic systems. Featuring a 5/2-way function, this valve offers the flexibility to route compressed air in multiple directions, making it ideal for a variety of industrial automation and machinery control applications. The toggle lever mechanism allows quick and easy manual operation, enabling users to accurately direct airflow where it is needed.

This control valve is built from a robust zinc alloy, providing excellent resistance to wear and corrosion - even in challenging operational settings. Its five ports use G 1/8 standard threaded connections, which offer a secure fit and help maintain system integrity against vibration or movement.

The Norgren X3044302 has a maximum operating pressure of 10 bar and sustains a typical flow rate of up to 335 litres per minute to support high-demand pneumatic operations. With a working temperature range from 0°C to 50°C, this valve is well suited for environments that require stable performance in both cold and moderate heat.

Practical construction features include nitrile rubber seals, which are effective at preventing compressed air leaks and minimizing maintenance downtime. The compact form factor - measuring 115 mm in length, 36 mm in width, and 24 mm in height - facilitates easy installation in tight spaces or retrofitting in existing control panels.

Applications for the Norgren X3044302 valve span many industrial domains: it is frequently used in marine engineering for directional control, farm machinery for pneumatic actuation, food manufacturing for safe and smooth product handling, and crane hydraulics for precision movement. Industrial conveyors and automated systems benefit from its reliability and precise control.

Designed for through-hole mounting, the valve offers secure installation and long-lasting service. The black toggle button is ergonomically positioned for quick actuation without fatigue. Its two positions facilitate simple switching between operational states, while the five ports allow complex routing requirements to be met.

Versatile 5/2 way configuration for flexible pneumatic control. Rugged zinc alloy construction ensures longevity and corrosion resistance. Toggle lever mechanism provides intuitive and accurate manual operation. Standard G 1/8 threaded ports support robust system connectivity.

Nitrile rubber seals improve efficiency by minimizing air leakage. High flow rate and pressure ratings accommodate demanding applications. Compact, easy-to-install form factor with dimensions suitable for control panel integration.

Wide industrial applications: marine, agricultural, conveyor automation, crane hydraulics, food processing.

For engineers and maintenance professionals seeking dependable manual pneumatic valves, the Norgren X3044302 offers reliability, precise control, high capacity, and straightforward integration in automation systems. Browse more Pneumatic Valves and explore Norgren’s full product range on EnvMart for expert solutions in fluid power and system control.
