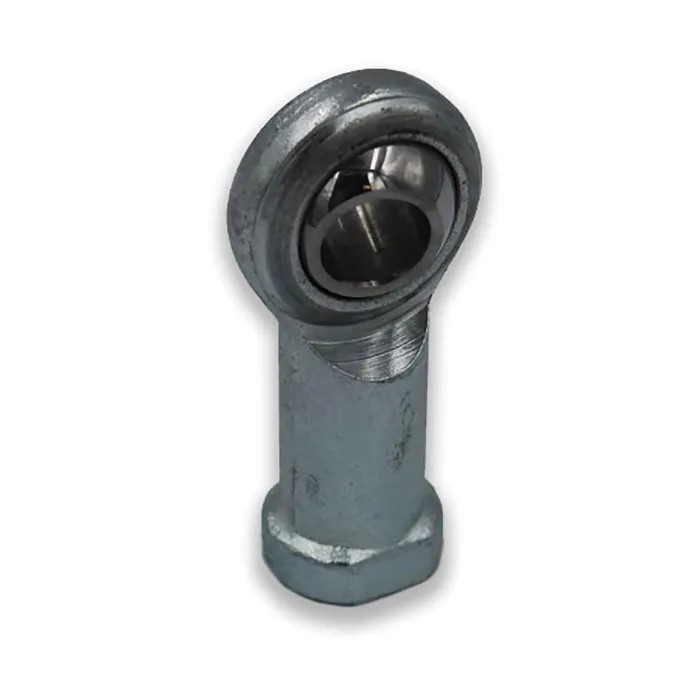

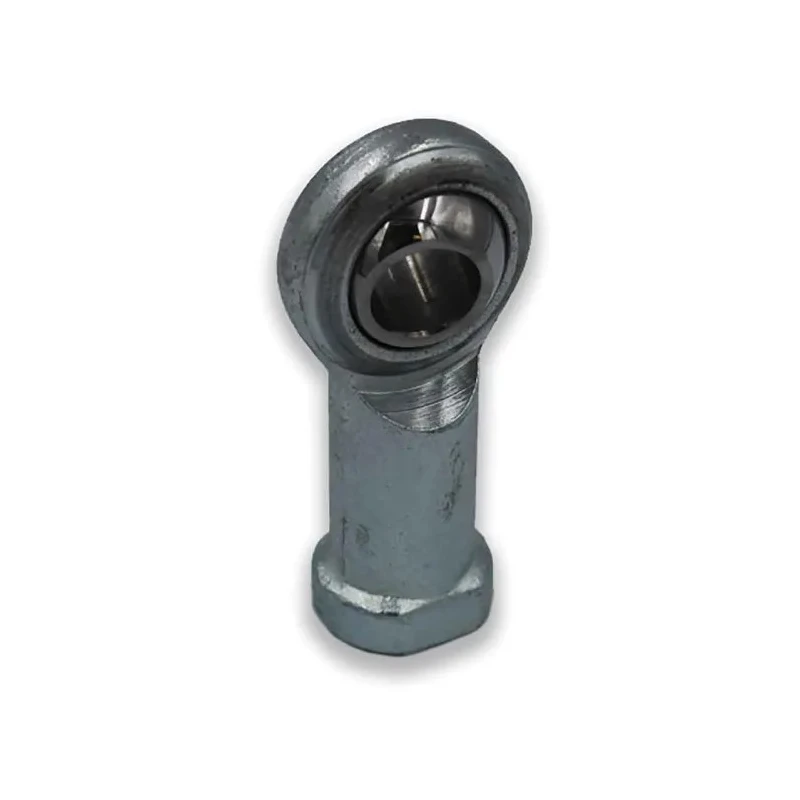

LDK M5 Female Carbon Steel Rod End, 5mm Bore, Metric Thread, 3.3kN Dynamic Load, PHS 5EC

Free Delivery in India | Lowest Global Shipping Charges

LDK M5 Female Carbon Steel Rod End, 5mm Bore, Metric Thread, 3.3kN Dynamic Load, PHS 5EC



Category Rotary Bearings & Housing Units Brand LDK Condition New

Specifications

Country of Origin	China
Brand	LDK
Material	Carbon Steel
Model	PHS 5EC
Body	Carbon steel,clear Zinc plated
BALL	AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Overall Width	35mm
Outside diameter	16mm
Connection Size	M5 Female
Bore Diameter	5mm
Thread Standard	Metric
Static Load Rating	6.2kN
Dynamic Load Rating	3.3kN
Race	PTFE composite
Sliding contact surfaces	Steel/PTFE composite

Key Features

Constructed from durable carbon steel for enhanced load bearing and longevity.
M5 female connection size enables compatibility with standard metric thread fittings.
5mm bore diameter is precision-engineered for smooth rotation and minimal friction.
Dynamic load rating of 3.3kN and static load rating of 6.2kN support demanding mechanical loads.
Ball is made from hardened AISI 52100 bearing steel, precision ground and polished for high accuracy.
Race utilizes PTFE composite and features steel/PTFE composite sliding surfaces for reduced wear.
Clear zinc plating enhances corrosion resistance and surface protection.
Body width of 35mm and outside diameter of 16mm ensure robust installation and stable operation.

Product Description

LDK PHS 5EC is a precision-engineered female rod end designed for robust mechanical and industrial applications. The rod end features an M5 female connection, constructed from high-grade carbon steel with clear zinc plating for superior durability and resistance to corrosion. Its 5mm bore diameter and metric thread standard ensure seamless integration with a wide range of machinery and transmission setups.

The ball component is manufactured from AISI 52100 bearing steel, heat-treated to HRC58-64, and precision ground for optimal smoothness and reliability. The body of the rod end supports heavy loads, with a dynamic load rating of 3.3kN and a static load rating of 6.2kN, making it suitable for demanding environments.

The race employs a PTFE composite structure, complemented by steel/PTFE composite sliding contact surfaces to minimize friction and wear. The rod end is designed with a robust 35mm overall body width and a 16mm outside diameter to provide stability and ensure long-term operational performance.

Its metric thread standard enables broad compatibility in international industrial systems, supporting installation flexibility across mechanical assemblies, automation frameworks, and rotary bearing units. LDK PHS 5EC excels in environments requiring precise motion transfer and reliable load accommodation, such as manufacturing lines, packing equipment, and custom machinery builds.

The high-quality finish and engineering make this rod end suitable for both new designs and replacement in industrial maintenance routines. With corrosion-resistant clear zinc plating and precision construction, users can rely on LDK PHS 5EC for consistent performance in vibration-prone and high-impact settings.

Browse more rotary bearings and rod end solutions in the 'Rotary Bearings & Housing Units' category and explore LDK's complete range of engineered bearing components on EnvMart.

Explore more products in our Rotary Bearings & Housing Units category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The dynamic load rating of this rod end is 3.3kN.

It is constructed from high-grade carbon steel with clear zinc plating for enhanced durability and corrosion resistance.

The bore diameter of the LDK PHS 5EC is 5mm.

The static load rating is 6.2kN.

The ball is made from AISI 52100 bearing steel, which is heat-treated and precision ground for optimal performance.

The overall body width is 35mm and the outside diameter is 16mm.

It uses a metric thread standard, specifically an M5 female connection size.

The sliding contact surfaces utilize a steel/PTFE composite for reduced friction and wear.

The PTFE composite in the race helps minimize friction and wear during operation.

The country of origin for this rod end is China.

It is suitable for demanding mechanical applications requiring precise motion transfer and reliable load accommodation, such as manufacturing lines and custom machinery builds.

The clear zinc plating enhances corrosion resistance and provides surface protection for the rod end.
