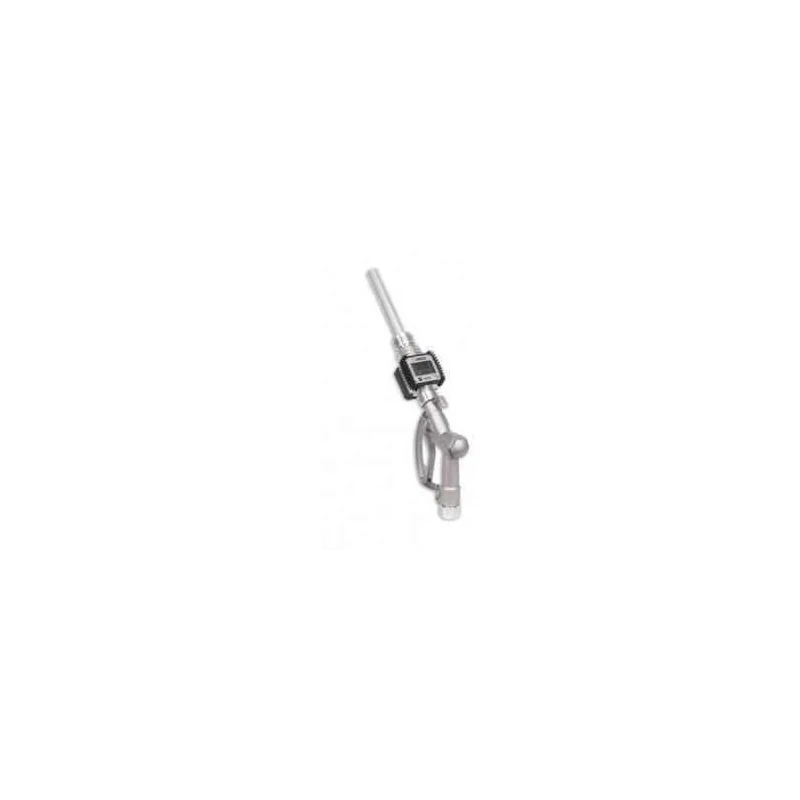

Groz Metered Fuel Control Nozzle 1 Inch NPT, 1.5V Battery, 5 - 75 LPM, Digital, Aluminium FM/20/FCN/0-1/N
Specifications
| Country of Origin | India |
|---|---|
| Repeatability | ± 0.30 % |
| Accuracy | ± 1% |
| Brand | Groz |
| Working Pressure | Max: 50 PSI |
| Flow Rate | 5-75 LPM |
| Working Temperature | Max: 0 to 50 deg C |
| Model | FM/20/FCN/0-1/N |
| Item Code | FM/20/FCN/0-1/N |
| Protection Class | IP 55 |
| Viscosity | 5.35 cst |
| Least Count | 0.001 Units |
| Items in Pack | 1 Piece |
| Threads | Inlet: 1 inch NPT (F) |
| Notes | Unboxing Video is Mandatory for any Damage or Leakage Product Product once sold will not be returned |
| Battery Voltage | 1.5 V |
| Threads Inlet | 1 inch NPT (F) |
| Working Pressure Max | 50 PSI |
| Working Temperature Max | 0 to 50 deg C |
| Max. Resettable Batch Totalizer | 99,999 L |
| Max. Non Resettable Batch Totalizer | 9,99,999 L |
Key Features
- Precision digital meter displays fuel volume with ±1% accuracy.
- 1 inch NPT inlet with die cast aluminium construction for durability.
- Suitable for a wide flow range of 5 - 75 LPM for versatile industrial use.
- Battery operated digital meter with easy user re-calibration function.
- Measures in litres, quarts, pints, and gallons for universal compatibility.
- Polyamide turbine measuring mechanism ensures reliable performance.
- Built-in swivel at inlet reduces hose stress and improves ergonomics.
- Manual fuel control nozzle fitted with IP55 rated protection for harsh environments.
Product Description
Groz FM/20/FCN/0-1/N Metered Fuel Control Nozzle combines precise digital measurement with robust engineering, offering effective fuel dispensing for industrial applications. Its 1 inch NPT female thread makes it compatible with a range of hoses and pipes standard in fueling stations, agricultural operations, and industrial machinery maintenance.
The nozzle features an integrated digital meter powered by a 1.5 V battery, capable of measuring liquids with an accuracy of ±1%. The user can easily recalibrate the meter to maintain its accuracy over time, making it a reliable choice for environments where measurement precision is critical.
The aluminium nozzle body is die-cast for strength and longevity, further enhanced by a polyamide turbine measuring mechanism which guarantees durability and resistance to various fuel types. Designed for a flow range from 5 to 75 litres per minute, it accommodates both low and high volume dispensing requirements.
Multiple units of measurement are available (litres, quarts, pints, gallons), providing flexibility for diverse operational norms. Batch totalizers allow for resettable and non-resettable tracking (up to 99,999 L and 9,99,999 L, respectively), facilitating usage control and auditing for industrial or commercial fueling.
The nozzle incorporates an ergonomic built-in swivel at the inlet to reduce hose twisting and operator fatigue. With a protection class of IP55, this device withstands dust and water jets, making it suitable for outdoor and demanding sites. Maximum working pressure stands at 50 PSI, and the unit operates reliably within a temperature range of 0 to 50°C.
Precision digital meter displays fuel volume with ±1% accuracy. 1 inch NPT inlet with die cast aluminium construction for durability. Suitable for a wide flow range of 5 - 75 LPM for versatile industrial use. Battery operated digital meter with easy user re-calibration function.
Measures in litres, quarts, pints, and gallons for universal compatibility. Polyamide turbine measuring mechanism ensures reliable performance. Built-in swivel at inlet reduces hose stress and improves ergonomics. Manual fuel control nozzle fitted with IP55 rated protection for harsh environments.
Commonly used in industrial fueling stations, agricultural machinery refueling, fleet management, and commercial fuel handling operations. Explore more industrial dispensing solutions and Groz products by browsing the Pipe Nozzles category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a flow rate range of 5 to 75 litres per minute (LPM), making it suitable for various industrial applications.
The digital meter provides an accuracy of ±1%, ensuring precise fuel measurement during dispensing.
The maximum working pressure for this unit is 50 PSI, allowing it to handle various fueling scenarios effectively.
It features a 1 inch NPT female thread, making it compatible with a range of hoses and pipes commonly used in fueling operations.
This nozzle operates reliably within a temperature range of 0 to 50 degrees Celsius.
The digital meter is powered by a 1.5 V battery, which is easily replaceable for continued operation.
The nozzle is constructed from die-cast aluminium, providing durability and resistance to various fuel types.
The built-in swivel at the inlet reduces hose stress and improves ergonomics, making it easier for operators to handle during use.
The digital meter can measure in litres, quarts, pints, and gallons, offering flexibility for different operational norms.
The repeatability of this model is ±0.30%, ensuring consistent performance during fuel dispensing.
This unit has an IP55 protection class rating, making it suitable for use in harsh environments with exposure to dust and water.
The maximum resettable batch totalizer capacity for this nozzle is 99,999 litres, allowing for effective usage tracking.
