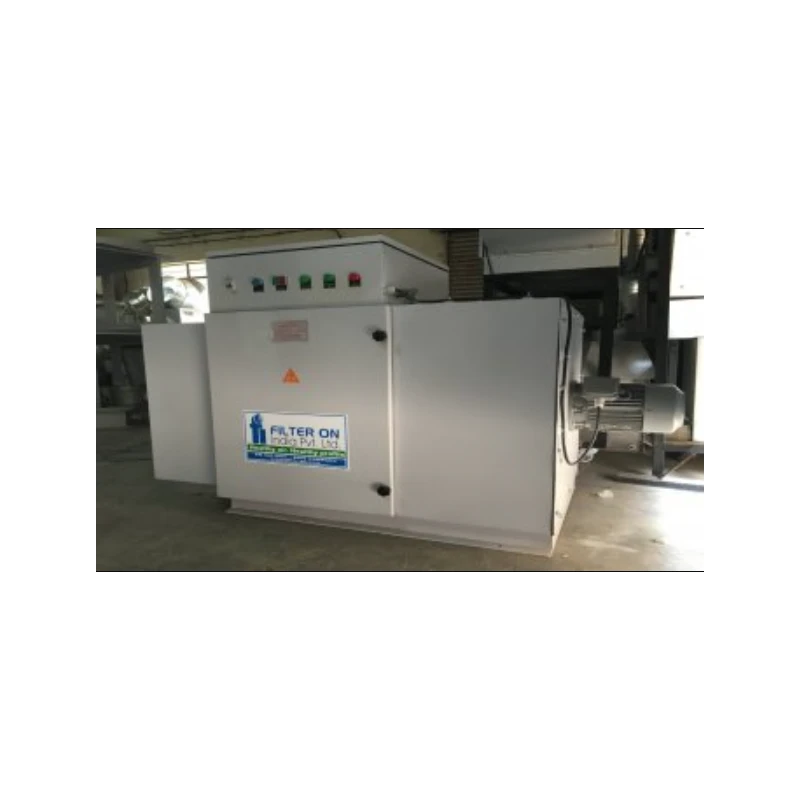

Filter On Oil Mist Fume Extraction M-02/02K-V
Specifications
| Power Consumption | 750 W (max) |
|---|---|
| Sound Level | 65-70 dB (@1M from unit) |
| Air Flow | 2000 CMH (1200 CFM) |
| Model | M-02/2K-V |
| Weight | 105 KG |
| Overall size | 620 (L) X 790 (W) X 1650 (H) |
| Input Supply | 230V 50Hz AC 1 PH |
| Inlet Pipe | Dia 200 1 No |
| After Filter | GI Wire Mesh media in MS powder coated channel frame |
| Fan / Blower | DIDW centrifugal backward curved impeller with external rotor type motor. (2600 RPM) |
| Main Cabinet | 16G CRCA powder coated sheets |
| Pre-filter | GI Wire Mesh media in MS powder coated channel frame |
| High Voltage Power Supply for ESP | I/P 230 V AC| O/P 6KV DC (collector) & 12KV DC (ionizer) |
Key Features
- Short Circuit & Arcing Protection
Product Description
Oil Mist Fume Extraction: Oil Mist and Fumes Extraction for Grinding Application, Gear Cutting Machines, Hobbing Machines, CNC Lathes, Tool & Cutting Grinders, 5 Axis Grinding Machines, HMC & VMC, Oil Spraying Application, Induction Heating Machines, Nut Formers Etc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power consumption of this model is 750 W.
It has an air flow rate of 2000 CMH (1200 CFM).
The sound level is between 65-70 dB when measured at 1 meter from the unit.
The overall dimensions are 620 mm (L) x 790 mm (W) x 1650 mm (H).
It uses an inlet pipe with a diameter of 200 mm.
The weight of this unit is 105 KG.
It features a DIDW centrifugal backward curved impeller with an external rotor type motor operating at 2600 RPM.
The input supply requirement is 230V 50Hz AC single phase.
The main cabinet is made from 16G CRCA powder coated sheets.
The after filter consists of GI wire mesh media housed in a mild steel powder coated channel frame.
