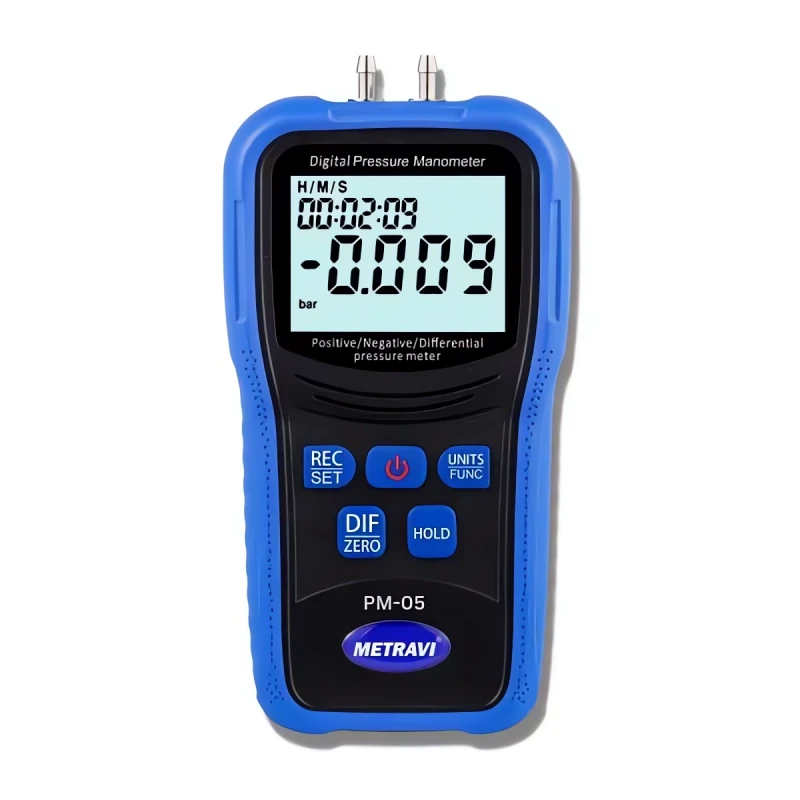

Metravi Multifunction Differential Pressure Manometer PM-05
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PM-05 Multifunction Differential Pressure Manometer / Pressure Meter / Hose / Rubber Head / Metal Quick Connector / PP Carry Case / User Manual |
| Repeatability | ±0.25%FS |
| Accuracy | ±1%FS |
| Brand | Metravi |
| Power | One 9V 6F22 battery |
| Operating Temperature | 0–40°C |
| Dimensions | 155×80×32mm |
| Storage Temperature | -10–60°C |
| Model | PM-05 |
| Weight | 163g |
| Reaction time | 0.5s (25°C±2°C) |
| PRESSURE CONNECTION | 1/8"(3.18mm) quick connectors |
| Overload Alert | "HI" displayed() |
| Linear Hysteresis | ±0.1%FS |
| Max Pressure Limit | 206.8kPa() |
Key Features
- ±30psi / 206.8 kPa Differential Pressure Sensor
- Built-in option for 11 different measurement units
- ZERO setting function
- TPU sheath for protection when using in harsh and rugged environments
- 32 Data Storage
- Auto Power-off (manual option available)
- Accuracy: ±1% FS
- Linear Hysteresis Phenomenon: ±0.1% FS
- Max. Pressure Limit: 206.8kPa(*)
- Repeatability: ±0.25% FS
- Reaction Time: 0.5 secs (25°C ±2°C)
- Overload Alert: “HI” display(*)
- *IMPORTANT NOTE! Excess or over-limit pressure will damage the meter
Product Description
Metravi PM-05 Multifunction Differential Pressure Manometer provides comprehensive air pressure measurement for HVAC, pneumatic, and process control applications. Supporting multiple pressure ranges and units, it delivers high-resolution readings with fast response time. The PM-05 features data logging, real-time display, and max/min/hold functions. With built-in temperature compensation and a durable housing, it ensures dependable performance in demanding field environments. Ideal for environmental monitoring, laboratory calibration, and industrial diagnostics requiring multi-parameter precision.
Available on EnvMart, these Manometers are ideal for measuring pressure accurately in various applications. Metravi Manometers provide precision and reliability, making them perfect for industrial, laboratory, and HVAC system testing and monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metravi PM-05 has a differential pressure measurement range of ±30 psi, which is equivalent to 206.8 kPa.
The accuracy of the Metravi PM-05 is ±1% of full scale (FS).
The maximum pressure limit for the Metravi PM-05 is 206.8 kPa.
The PM-05 operates within a temperature range of 0 to 40°C and has a storage temperature range of -10 to 60°C.
The dimensions of the Metravi PM-05 are 155×80×32 mm, and it weighs 163 grams.
The Metravi PM-05 is powered by one 9V 6F22 battery.
The package contents for the Metravi PM-05 include the manometer, a hose, a rubber head, a metal quick connector, a PP carry case, and a user manual.
The reaction time of this model is 0.5 seconds at a temperature of 25°C ±2°C.
Yes, the Metravi PM-05 features an overload alert that displays 'HI' when the pressure exceeds the maximum limit.
The repeatability of the Metravi PM-05 is ±0.25% of full scale (FS).
The Metravi PM-05 supports 1/8" (3.18mm) quick connectors for pressure connections.
The PM-05 is suitable for HVAC, pneumatic, and process control applications, as well as environmental monitoring and laboratory calibration.
