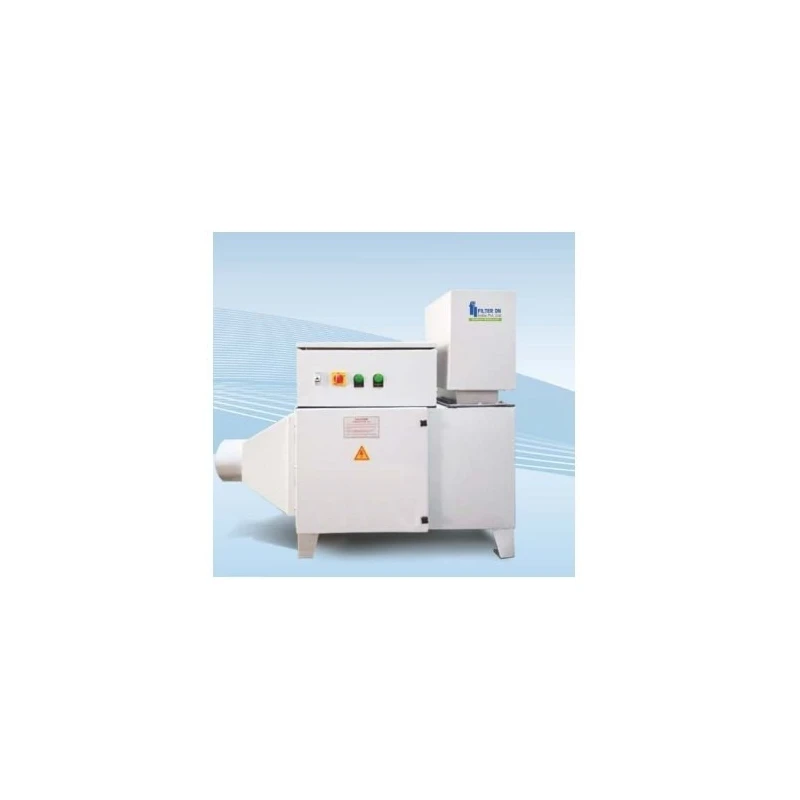

Filteron Oil Mist Fume Extraction M02/0.5K
Specifications
| Power Consumption | 200 W (max) |
|---|---|
| Sound Level | 55-60 dB (@1M from unit) |
| Air Flow | 500 CMH (300 CFM) |
| Model | M-02/0.5K |
| Weight | 55 KG |
| Overall size | 320 (L) X 930 (W) X 760 (H) |
| Input Supply | 230V 50Hz AC 1 PH |
| Inlet Pipe | Dia 150 2 No. |
| After Filter | GI Wire Mesh media in MS powder coated channel frame |
| Fan / Blower | Radial fan with external rotor type motor. (2600 RPM) |
| Main Cabinet | 16G CRCA powder coated sheets |
| Pre-filter | GI Wire Mesh media in MS powder coated channel frame |
| High Voltage Power Supply for ESP | I/P 230 V AC| O/P 6KV DC (collector) & 12KV DC (ionizer) |
Key Features
- Bulk Quantities Available
Product Description
Oil Mist Fume Extraction: Fume Extractor for EDM Fumes, Soldering and Laser Marking Application, etc.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power consumption is 200 W (max).
It has an airflow rate of 500 CMH (300 CFM).
The sound level is between 55-60 dB when measured at 1 meter from the unit.
The overall size is 320 mm (L) x 930 mm (W) x 760 mm (H).
It uses an inlet pipe with a diameter of 150 mm, with two connections.
The weight of this model is 55 KG.
It features a radial fan with an external rotor type motor that operates at 2600 RPM.
The input supply is 230V 50Hz AC, single phase.
Both the pre-filter and after filter are made of GI Wire Mesh media in a MS powder coated channel frame.
It is suitable for applications such as EDM fumes, soldering, and laser marking.
The high voltage power supply has an input of 230 V AC and outputs 6KV DC for the collector and 12KV DC for the ionizer.
