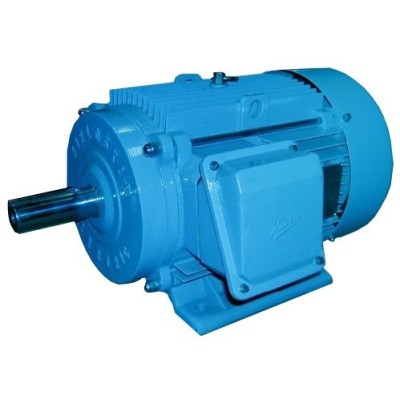

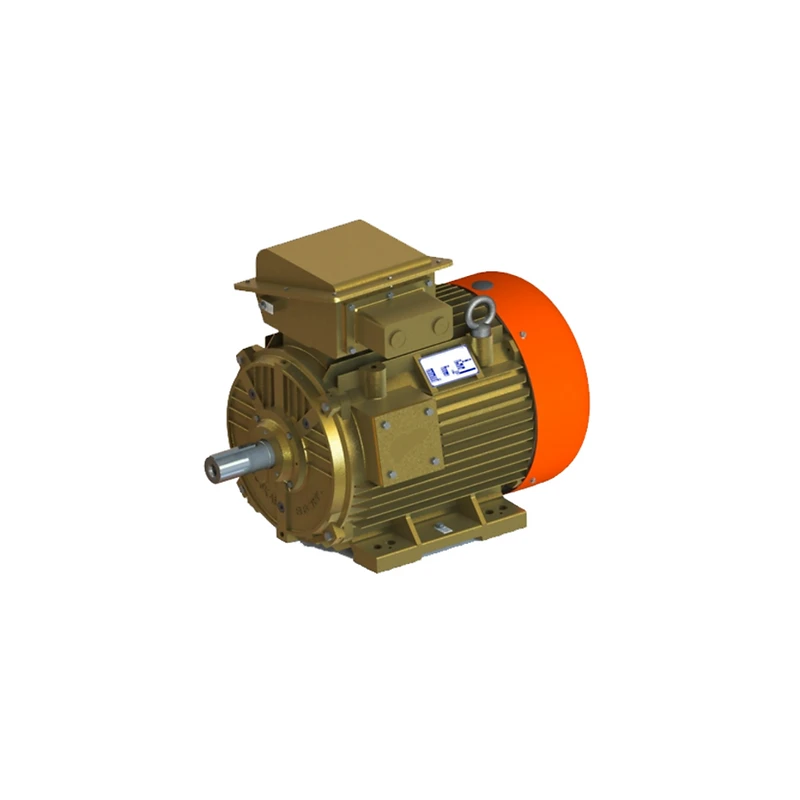

Kirloskar 18.5 kW/25 HP 8 Pole 415V 3 Phase IE2 Foot Mounted Induction Motor (RC225SM)
Specifications
| Frequency | 55 Hz |
|---|---|
| Type | Induction Motor |
| Voltage (V) | 415V10% |
| Mounting | Foot Mounted |
| Power Rating (kW) | 18.5 kW |
| Insulation Class Type | Class F |
| class | B |
| Protection Class | IP55 |
| Ambient Temperature (ºC) | 0-50 ºC |
| Rated Voltage (V) | 415V |
| Cooling | IC 411 |
| Casing | Squirrel Cage |
| Pole | 8 |
| Frame | RC225SM |
| Squirrel Cage | IE2 Efficiency |
| Combined Variations | 0.1 |
Key Features
- IE2 level efficiency as per IS 12615 - 2011 and IEC 60034-30
- High starting and pull-up torgues to accelerate the load.
- Robust and shock resistant stator construction with optimally designed ribs for cooling.
- Die-cast aluminum rotors designed to withstand the severe forces encountered during starting.
Product Description
Kirloskar 8 Pole Squirrel Cage Induction Motors are used for induction motors up to 300 HP. The squirrel cage design provides superior cooling and high efficiency. These motors have been proven to be reliable and durable. They are available in various configurations and can be customized as per customer requirements.
- Terminal box located at RHS from driving End.
- Large terminal boxes with sufficient electrical clearances and imporved aesthetics.
- Optimum fan design for better cooling & minimum energy consumption.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 18.5 kW, which is equivalent to 25 HP.
This induction motor operates at a voltage of 415V with a tolerance of 10%.
The RC225SM is an 8 pole squirrel cage induction motor.
This model has an IE2 efficiency rating as per IS 12615 - 2011 and IEC 60034-30 standards.
The motor can operate in an ambient temperature range of 0 to 50 ºC.
The protection class of this motor is IP55, indicating resistance to dust and water.
This model is designed for foot mounting.
The motor utilizes IC 411 cooling, which is optimized for better cooling and minimum energy consumption.
The insulation class type for this induction motor is Class F.
The specific dimensions are not provided, but it is categorized under the RC225SM frame.
This induction motor is used in various industrial applications requiring reliable and durable performance.
Yes, this motor can be customized as per customer requirements.
