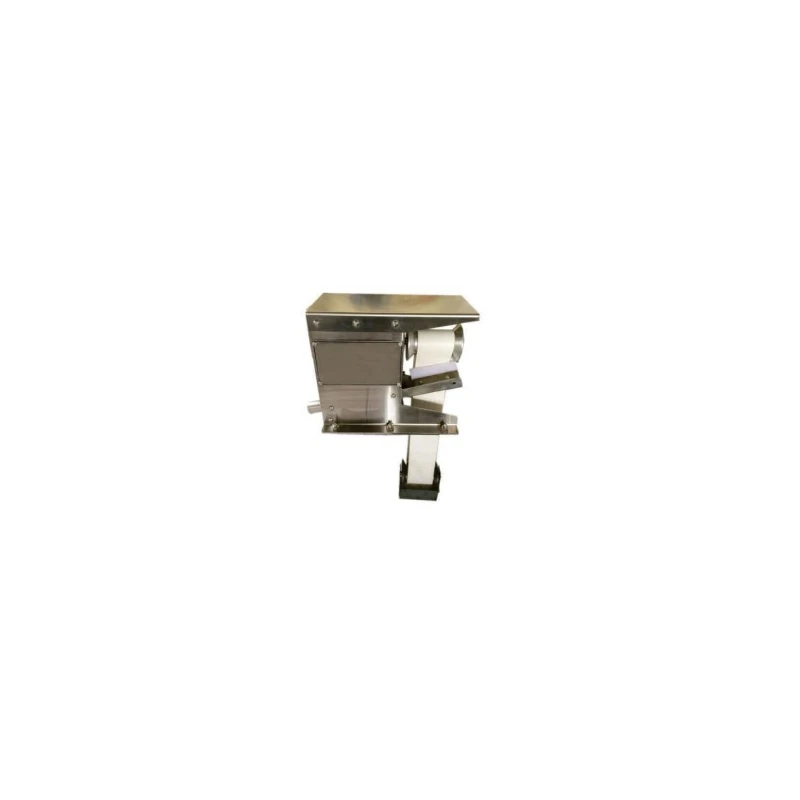

Belt Type Oil Skimmer

Name: Belt Type Oil Skimmer
Brand: ESPL
SKU: AAIRB
Price: 255.2 USD
Availability: InStock



SKU AAIRB Category Oil Skimmer Brand ESPL Condition New

Specifications

Capacity	0 TO 5O LPH 0- 5O Lph depending upon the thickness of free floating oil viscosity of the oil in the effluent and belt width
Mounting	Floor/Cantilever Pole
MOC	Mild steel powder coated I Stainless steel
Temperature	40-55
Belt	Special PU with Width of 6S to 300 mm
Dead Weight	MS/SS304
Belt Length Mtr.	Depends on tank depth
Frame M.0.C.	M.S.E.P. /SS 304
Drive wheel M.O.C	luminums
Driven wheel M.O.C	MS/SS304
Scraper	pp
ccessories	Outlet Hose (S Mtr Long.)For oil transfer to collecting drum shall be provided along with the equipment\| drum shall be in your scope
Electric Drive	0.2S Hp ac electric motor (41S v\| 3 phase\| SO hz) with suitable worm reduction gear box (make bonfiglioli)
Belt Width.	65 mm to 300 mm
Type Belt type	oil skimmer

Key Features

Used for removing un-emulsified oil.
Filtration capacity: S I/hr to 20 I/hr
Continues cleaning operation. Auto belt tensioning

Product Description

Belt Oil Skimmer offered to come in quality construction finish and find suitability for achieving effective removal of un-emulsified oil. We can make these available in filtration capacities of S I/hr to SO I/hr. These skimmers provide support for continual cleaning operation as well as come in auto belt tensioning configuration for superior performance. Some of its features include allows for ease of maintenance, compact finish; ideally suited for individual machines and large tanks; application suitability in steel grinding, washing machine, aluminium machining, tube mill, and other areas.

Ease of maintenance. Single drive. Very compact .
Ideal for individual machines and large tanks.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is constructed from mild steel powder coated and stainless steel for the frame, with a special PU belt and various components made from aluminum, MS, and PP.

The operating temperature range for this oil skimmer is between 40°C and 55°C.

The belt width of this skimmer can range from 65 mm to 300 mm.

It is powered by a 0.25 Hp AC electric motor (415 V, 3 phase, 50 Hz) with a suitable worm reduction gearbox.

This unit can be mounted on the floor or using a cantilever pole, providing flexibility in installation.

The dead weight of the oil skimmer is made from mild steel or stainless steel 304.

The scraper of this model is made from polypropylene (PP).

The auto belt tensioning feature helps maintain optimal belt performance during operation, ensuring efficient oil removal.

This skimmer is suitable for applications in steel grinding, washing machines, aluminum machining, tube mills, and other areas where un-emulsified oil removal is needed.

The filtration capacity can vary from 0 to 50 LPH based on the thickness of the free-floating oil, the viscosity of the oil in the effluent, and the belt width used.
