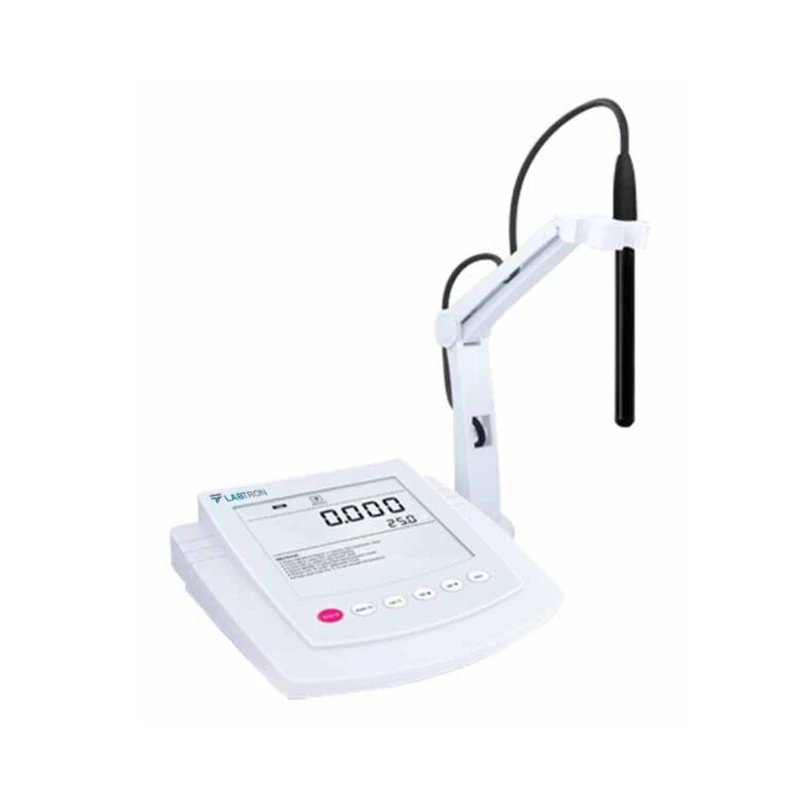

Benchtop Ion Meter for Cu EBIM-A27
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.001 / 0.01 / 0.1 / 1 |
| Temperature Accuracy | ±0.5°C / ±0.9°F |
| Display | LCD (130 x 110 mm) |
| Output | USB communication interface |
| Brand | Generic Brand |
| Power | DC 5V / using AC adapter / AC 220V / 50 Hz |
| Temperature Resolution | 0.1°C |
| Temperature Measurement Range | 0 to 105°C / 32 to 221°F |
| Memory | Stores up to 500 sets of data |
| Temperature Compensation | 0 to 100°C / 32 to 212°F |
| mV Accuracy | ±0.2 mV |
| mV Resolution | 0.1 mV |
| mV Range | (-1999.9) to 1999.9 mV |
| Model | LBIM-A27 |
| Weight | 1.5 KG |
| Type of Product | Ion Meter |
| Connector | BNC |
| Power off | Manual or automatic (10 / 20 / 30 minutes) |
| Calibration Points | 2 to 5 points |
| Dimensions (L × W × H) | 210 x 188 x 60 mm |
| Data Hold Function | Manual or automatic endpoint detection |
| Reset Function | Yes |
| Calibration Due | 0 to 31 days |
| Ion Measurement Range | Cu range — 1 x 10⁸ — 1 M / 0.06 — 6400 ppm |
| Ion Measurement Accuracy | ±1% F.S. |
| Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 ppm / mol/L / mg/L |
| Compensation Mode | Manual or automatic |
| Stability Condition | Low or high |
Key Features
- Large LCD display
- 2 - 5 points calibration from low to high concentration
- Direct ion concentration readout for elaborate measurement process
- Selectable concentration units from ppm, mg / L, mol / L
- mV measurements to check the performance of ion selective electrode
- Temperature compensation provides accurate reading over the entire range
- Stability indicator to show current measurement status
- Calibration due reminder for regular calibration of the meter
- Auto hold function to freeze stable reading for better viewing & recording
- Automatic electrode diagnosis shows the slope of the sensor
- Reset setting function
- Expanded memory stores and recalls up to 500 readings
- Built –in real time clock stamps
- USB communication interface to transfer stored data to PC
Product Description
Benchtop Ion meter for Cu, LBIM-A27 comes with (Cu) cupric ion selective electrode for cupric ion concentration measurement. This Ion meter comes with ± 1 % F.S. measurement accuracy. Its direct ion concentration readout helps in elaborate measurement process. The system menu allows setting the 8 parameters like calibration points, stability condition etc. It can measure concentration in ppm, mg / L, mol / L. The mV measurement is used to check the performance of ion selective electrode.
Applications:
Benchtop Ion meter is used to measure the cupric ion concentration present in potable water, D/W water, waste water and natural water resources using different ion concentration electrodes.
Standard Accessories:
- Cu Ion selective electrode
- Temperature probe
- Standard solution (1000 ppm)
- Ionic strength adjuster (30 mL)
- USB cable
- DC 5 V Power adapter
Optional Accessories:
- Ion selective electrode: Cu range: 1×10⁸ – 1M, 0.06 - 6400 ppm
- Ion standard solutions: 480 mL / bottle
- Ionic strength adjuster: 480 mL / bottle
- Temperature probe with sensor
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measurement accuracy of ±1% F.S. for ion concentration measurements.
The ion measurement range for cupric ions is from 1 x 10⁸ to 1 M, or 0.06 to 6400 ppm.
It supports calibration from 2 to 5 points, allowing for flexible calibration options based on the measurement requirements.
The temperature measurement range is from 0 to 105°C (32 to 221°F).
The temperature compensation allows for accurate readings over the range of 0 to 100°C (32 to 212°F).
It features a large LCD display measuring 130 x 110 mm for clear visibility of measurements.
The weight of the Benchtop Ion Meter for Cu is 1.5 kg.
It includes a USB communication interface for transferring stored data to a PC.
Standard accessories include a cupric ion selective electrode, temperature probe, standard solution (1000 ppm), ionic strength adjuster (30 mL), USB cable, and a DC 5V power adapter.
The mV resolution is 0.1 mV, allowing for precise measurement of electrode performance.
It can store and recall up to 500 sets of data for later analysis.
The power requirement is DC 5V, using an AC adapter with AC 220V at 50 Hz.
