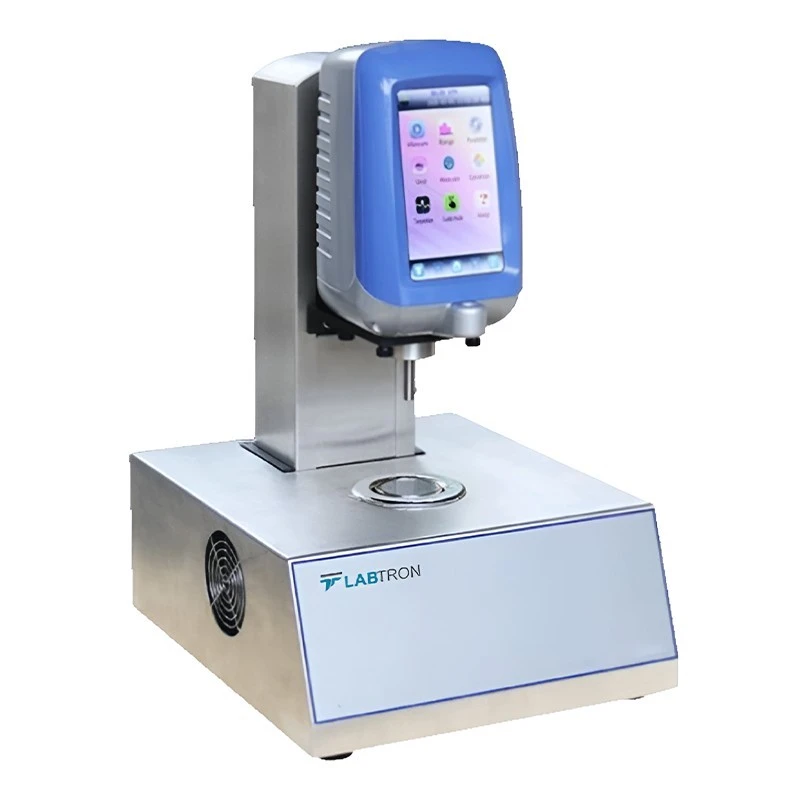

Cone and Plate Viscometer ECPV-A10
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | ±0.5% F/S |
| Accuracy | ±2.0% F/S |
| Temperature Accuracy | ±0.1°C |
| Brand | Generic Brand |
| Power | Input AC100-240V / 50Hz/60Hz |
| Temperature range | 5°C to 250°C |
| Model | LCPV-A10 |
| Weight | 18 Kg |
| Type of Product | Viscometer |
| Sample Volume | 24 to 1700 µl |
| Viscosity Range | 20 to 11920 mPa·s |
| Shear Rate | 800 to 11970 s⁻¹ |
| Rotational Speed | 400 / 750 / 900 RPM |
| Indoor Temperature Range | 20 to 25°C (±1°C) |
Key Features
- ARM chip processor for quick data processing
- Alarm for torque not in 10 to 90% range
- Passwords for temperature and viscosity correction factors
- Complies with ISO, DIN, and ASTM standards
- Integrated with an optimized temperature program
Product Description
Cone and Plate Viscometer LCPV-A10 offers a viscosity range from 20 to 11920 mPa.s to measure fluids with a broad range of viscosity levels. It is equipped with a torque sensor and adjustable rotational speed, determining the shear rate ranging from 800 to 11970 s⁻¹. Incorporated with a digital interface for operating parameters such as viscosity, temperature, speed, timing, torque, and spindle number.
Applications:
Cone and plate viscometer measures typically non-Newtonian liquids under controlled conditions. It is widely employed in quality control, biomedical, polymer processing, paint and coatings, and cosmetics industries.
Standard Accessories:
- Viscometer host: 1 set
- 220V power line: 1 pcs
- CAP spindles: 1 pcs
- Touch pen: 1 pcs
- Standard oil (2ml): 1 pcs
- USB flash disk (SNB software & Manual): 1 pcs
- Reticle: 1 pcs
- Insulation cover: 1 pair
- BGD 159-2 Cone-plate Viscometer operation instruction: 1 pcs
- Certificate of qualification: 1 pcs
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures fluids with a viscosity range from 20 to 11920 mPa·s.
The accuracy of this model is ±2.0% F/S.
It can determine shear rates ranging from 800 to 11970 s⁻¹.
The temperature range is from 5°C to 250°C.
It requires an input of AC100-240V at 50Hz/60Hz.
The sample volume capacity ranges from 24 to 1700 µl.
This model weighs 18 kg.
The repeatability is ±0.5% F/S.
It has a temperature accuracy of ±0.1°C.
It is widely employed in quality control, biomedical, polymer processing, paint and coatings, and cosmetics industries.
Included accessories are the viscometer host, a 220V power line, CAP spindles, a touch pen, standard oil, a USB flash disk with software, a reticle, and an insulation cover.
