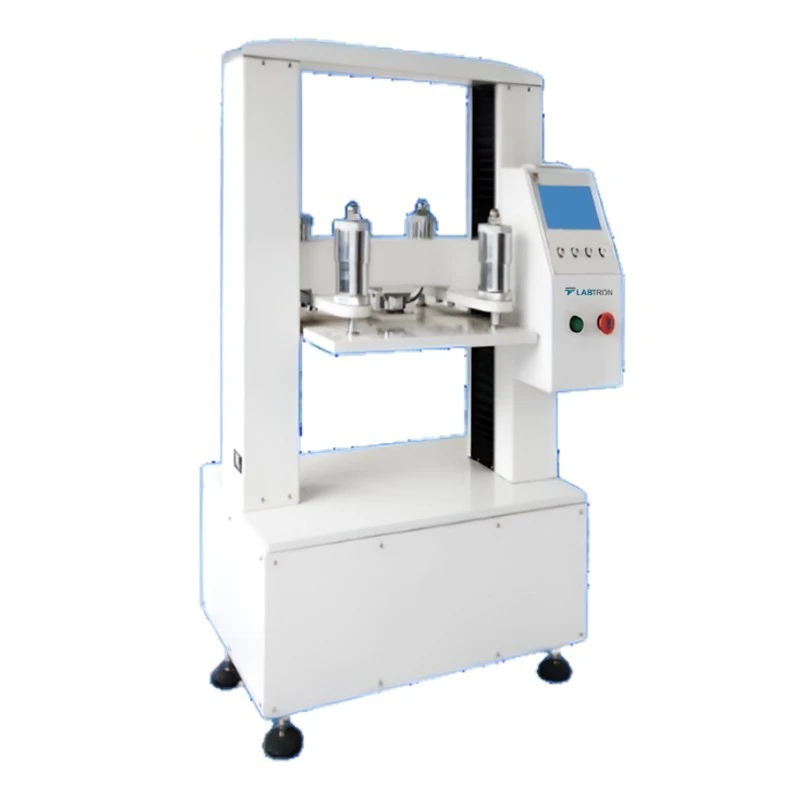

Carton Compression Tester TP-I11
Specifications
| Country of Origin | UK |
|---|---|
| Measuring range | 1 to 50 kN |
| Brand | Generic Brand |
| Power Supply | AC 220 V ± 10% / 50 Hz |
| Model | TP-I11 |
| Type of Product | Compression Testing Machine |
| Platen Size | 800 x 800 mm / 1000 x 1000 mm / 1200 x 1200 mm / 1500 x 1500 mm (customized) |
| Indication error | Less than ± 1% |
| Speed Adjustment Range | 2 to 100 mm/min |
| Operating Stroke | 800 mm / 1000 mm / 1200 mm / 1500 mm (customized) |
| Compression Speed | 10 mm/min |
| Track & Force Speed in Stacking Test | 2 mm/min |
Key Features
- Touch screen display
- Customized design as per user’s need
- Use of high precision pressure sensor for accurate measurement
- Tests the maximal strength of box using ‘Strength test’
- Data presetting to test the strength & variant of the carton box ‘Definite value test’
- Stacking test is performed within 12 or 24 hours
- Adopted with whorl and guide pillar for stability
Product Description
The Carton Compression Tester TP-I11, with a 100 mm/min return speed level, measures the compressive strength of carton boxes. The tester is adopted with an ARM chip, a powerful data functioning system, an advanced sensor, and an automatic tracking system for test operations. The test results are recorded automatically, and the real-time display is used to view the test data, which is also transferable to a computer.
Applications:
The Carton Compression Tester is used to determine compression strength and estimate the stacking capability of transport packages such as corrugated cartons, paperboard boxes, and more.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this model is from 1 to 50 kN.
It requires an AC power supply of 220 V ± 10% at 50 Hz.
The available platen sizes are 800 x 800 mm, 1000 x 1000 mm, 1200 x 1200 mm, and 1500 x 1500 mm, all of which can be customized.
The compression speed of this unit is 10 mm/min.
The operating stroke length can be customized to 800 mm, 1000 mm, 1200 mm, or 1500 mm.
The indication error for this model is less than ± 1%.
It can perform strength tests, definite value tests, and stacking tests to determine the compressive strength and stacking capability of cartons.
It is adopted with a whorl and guide pillar to enhance stability during testing operations.
Yes, the test results are recorded automatically and can be transferred to a computer for further analysis.
The track and force speed during the stacking test is 2 mm/min.
The country of origin for this model is the UK.
