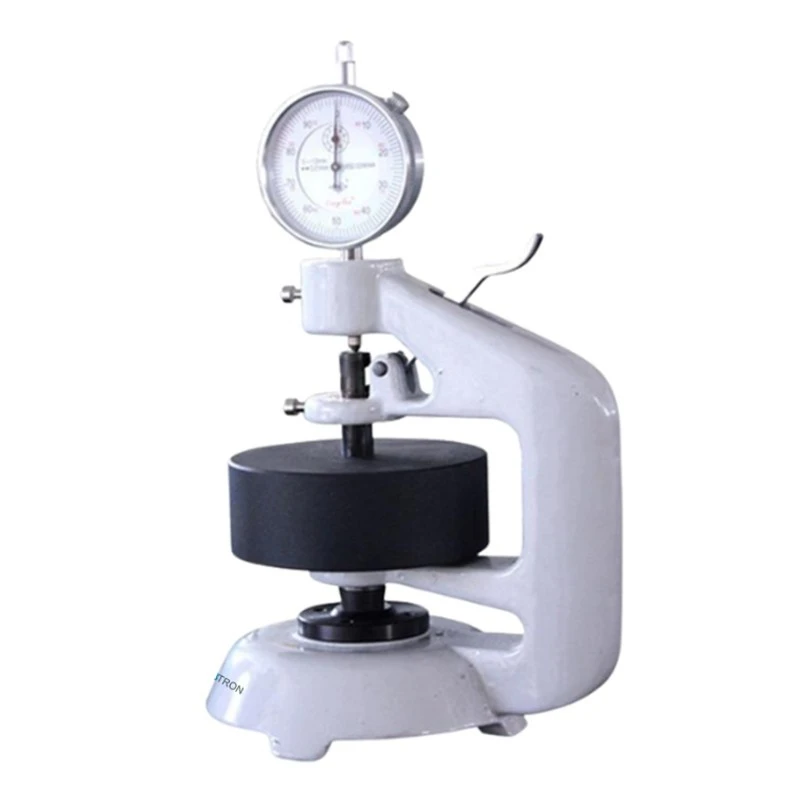

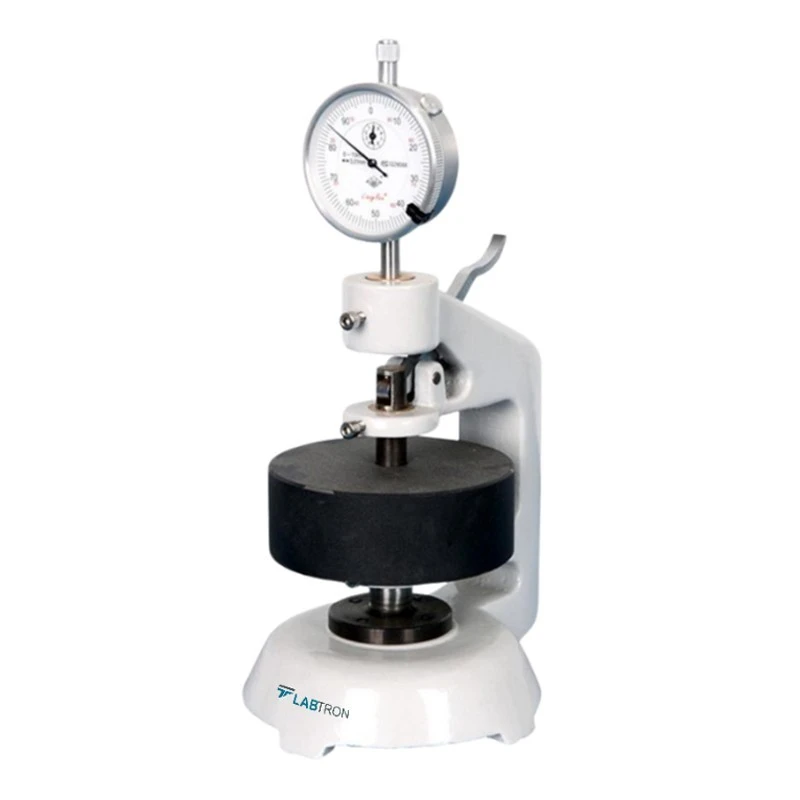

Paper and Cardboard Thickness Meter TP-E21
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | 0.01 mm |
| Measuring range | 0 to 20 mm |
| Brand | Generic Brand |
| Model | TP-E21 |
| Weight | 5.5 Kg |
| Type of Product | Thickness Meter |
| Dimension (L x W x H) | 233 x 160 x 120 mm |
| Gauge | Analogue gauge display |
| Indication Variability | ≤ 0.0025 mm or ≤ 0.5% |
| Indicating Error | ± 0.0025 mm or ± 0.5% |
| Contact Pressure | 20 ± 0.5 kPa |
| Contact Diameter | 35.7 ± 0.5 mm |
| Error of Depth Parallelism | 0.03 mm |
Key Features
- Portable, compact design
- Measuring range 0 to 20 mm for corrugated paper
- Incorporated with contact measurement method
- Analogue gauge display
- Manual operations
- Easy to use
Product Description
The Paper and Cardboard Thickness Meter TP-E21 measures the thickness of paper and corrugated papers using a contact measurement method. The analogue (pointer-type) gauge display is mounted at the top with a false weight to develop a uniform, reproducible constant pressure on the anvil through the foot. It finds applications in the paper, printing, and packaging industries.
Applications:
The Thickness Tester is used to measure the thickness of paper, corrugated paper, cardboard, and other sheets, and is widely used in paper testing, printing, and packaging industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this thickness meter is from 0 to 20 mm.
It has an accuracy of 0.01 mm.
It features an analogue gauge display for measurement indication.
This model weighs 5.5 kg.
The dimensions are 233 mm in length, 160 mm in width, and 120 mm in height.
The contact pressure is 20 ± 0.5 kPa.
The contact diameter is 35.7 ± 0.5 mm.
It is widely used in the paper, printing, and packaging industries for measuring thickness.
The indication variability is ≤ 0.0025 mm or ≤ 0.5%.
The indicating error is ± 0.0025 mm or ± 0.5%.
It uses a contact measurement method with a false weight to ensure uniform pressure on the anvil during measurement.
The country of origin for this model is the UK.
