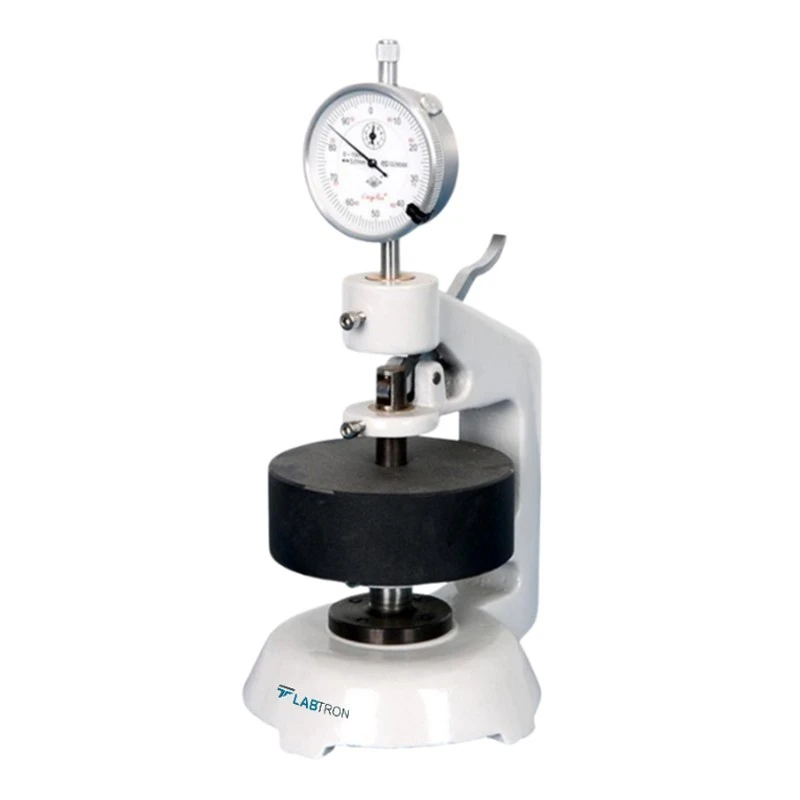

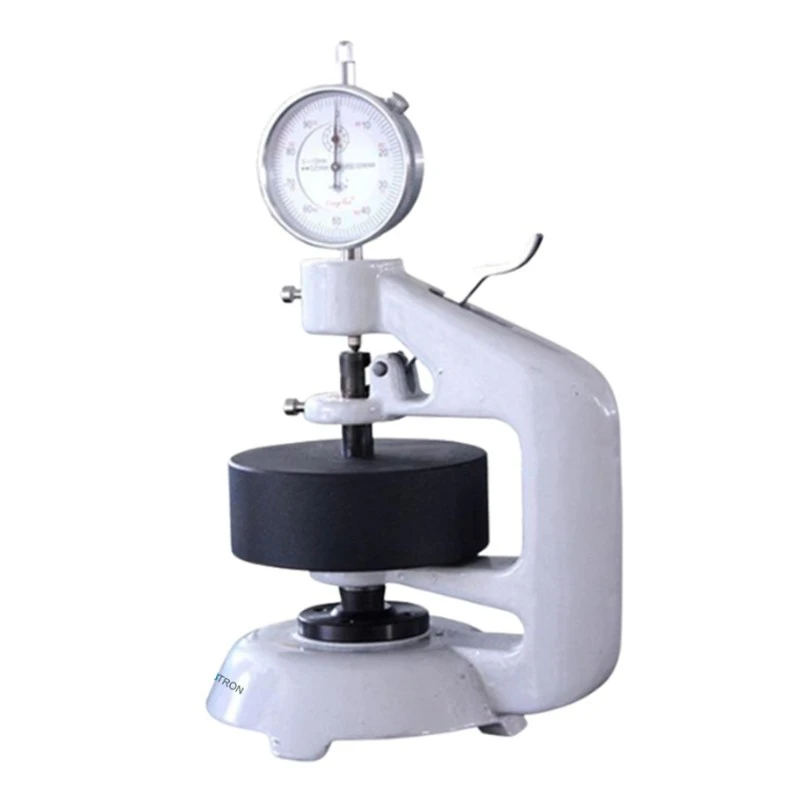

Paper and Cardboard Thickness Meter TP-E20
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | 0.01 or 0.001 mm |
| Measuring range | 0 to 4 mm |
| Brand | Generic Brand |
| Model | TP-E20 |
| Weight | 5.5 Kg |
| Type of Product | Thickness Meter |
| Dimension (L x W x H) | 233 x 160 x 120 mm |
| Gauge | Analogue gauge display |
| Indication Variability | ≤ 0.0025 mm or ≤ 0.5% |
| Indicating Error | ± 0.0025 mm or ± 0.5% |
| Contact Pressure | 100 ± 10 kPa |
| Contact Diameter | 16.0 ± 0.5 mm |
| Error of Depth Parallelism | 0.005 mm or 1% |
Key Features
- Portable, compact design
- Measuring range 0 to 4 mm for normal paper
- Incorporated with contact measurement method
- Analogue gauge display
- Manual operations
- Easy to use
Product Description
The Paper and Cardboard Thickness Meter TP-E20 measures the thickness of paper and corrugated papers using a contact measurement method. The analogue (pointer-type) gauge display is mounted at the top with a false weight to develop a uniform, reproducible constant pressure on the anvil through the foot. It finds applications in the paper, printing, and packaging industries.
Applications:
The Thickness Tester is used to measure the thickness of paper, corrugated paper, cardboard, and other sheets, and is widely used in paper testing, printing, and packaging industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this thickness meter is from 0 to 4 mm.
It has an accuracy of either 0.01 mm or 0.001 mm, depending on the measurement conditions.
It features an analogue gauge display for indicating measurements.
The contact pressure is set at 100 ± 10 kPa.
The dimensions of this thickness meter are 233 x 160 x 120 mm.
This model weighs 5.5 kg.
The contact diameter is 16.0 ± 0.5 mm.
It is widely used in the paper, printing, and packaging industries for measuring thickness.
The indication variability is ≤ 0.0025 mm or ≤ 0.5%.
The error of depth parallelism is 0.005 mm or 1%.
It uses a contact measurement method to assess thickness.
The country of origin for this thickness meter is the UK.
