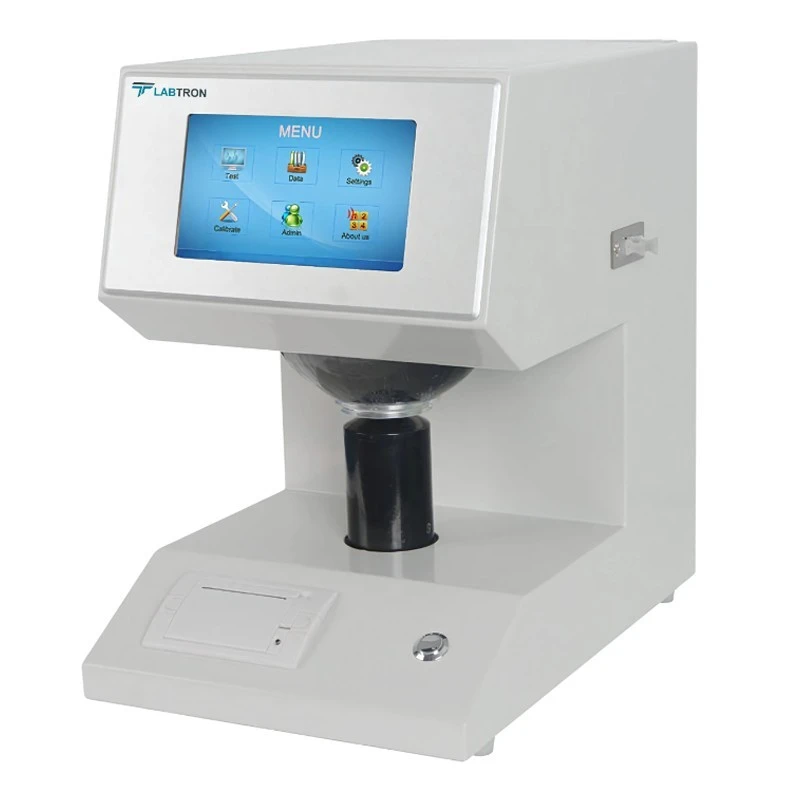

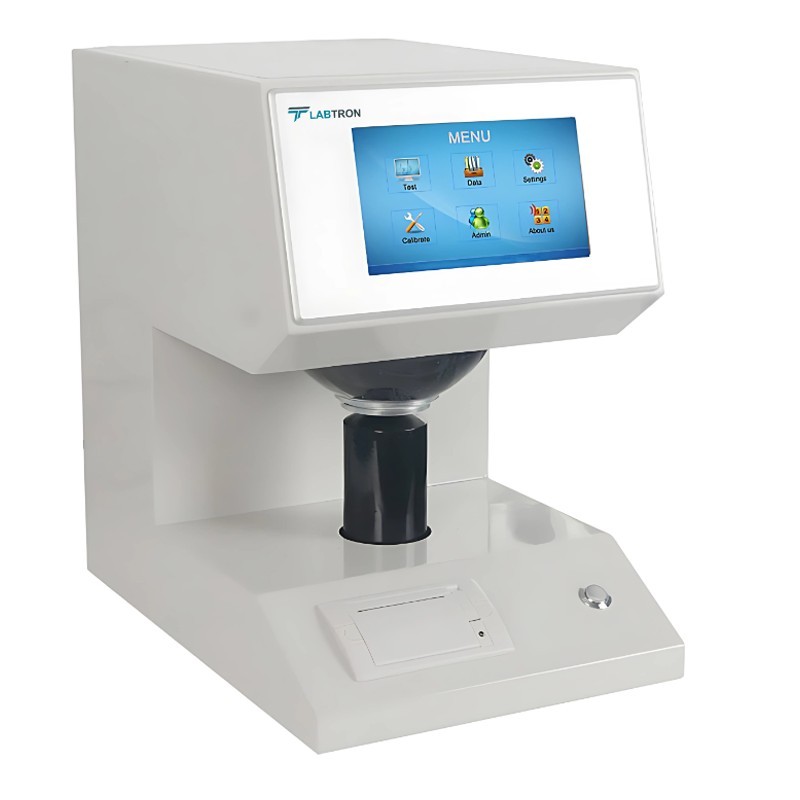

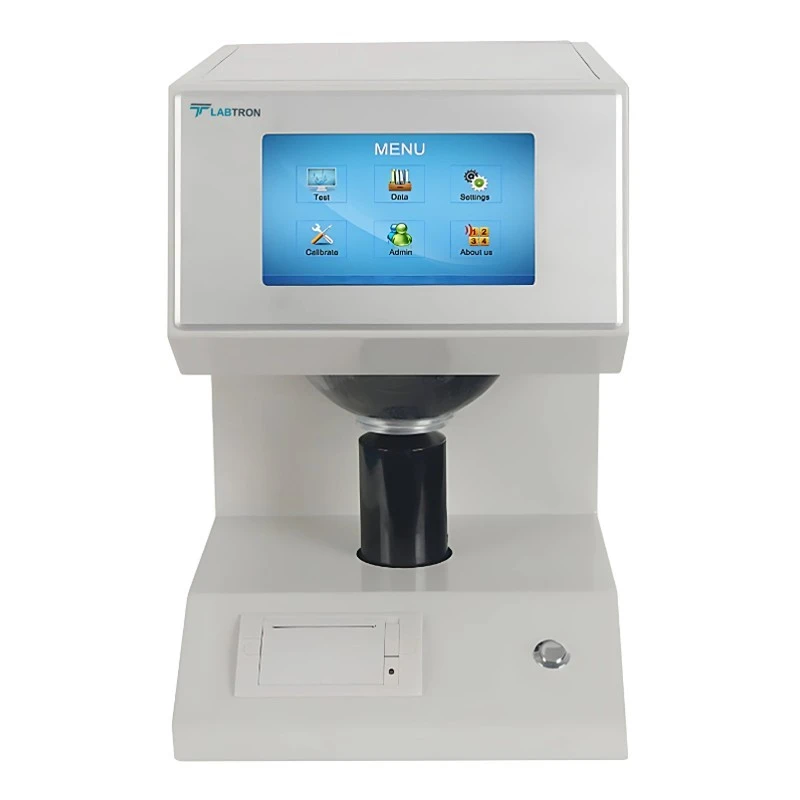

Labtron TP-A10 Whiteness and Chromaticity Tester
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Rx / Ry and Rz ≤ 0.1 chromaticity co-ordinate ≤ 0.0010 / R457 ≤ 0.10 |
| Accuracy | Chromaticity co-ordinate 0.0001 |
| Brand | Labtron |
| Power Supply | 220 V ± 10% / 50 Hz |
| Net Weight | 23 Kg |
| Model | TP-A10 |
| Stability | ≤ 0.1 within 30 min |
| Storage | 9 reference samples |
| Type of Product | Testing Instrument |
| System | D/0 lighting geometrical viewing conditions / diffuser diameter (d) 150 mm / testing hole diameter 30 mm |
| Dimension (L x W x H) | 360 x 264 x 400 mm |
| Sample (Size) Length | Diameter ≥ 30 mm / Thickness ≤ 40 mm |
| Light Measurement | CIE Whiteness (Ganz Whiteness W10 / Color cast value TW10) / WH hunter Whiteness / YI Yellowness / ISO brightness R457 |
Key Features
- Stimulate D65 illuminator to illuminate
- Measurement of the opacity, transparency
- Determination of light scattering coefficient ‘S’ and optical absorption coefficient ‘A ‘
- Measuring ink absorption value
- Measures WH hunter whiteness, YI Yellowness, CIE whiteness
- Use of large screen color touch LCD to view measurement, statistical data
- User-friendly data operations
- Equipped with RS232 interface, with PC connections for data communication
- Power protection, No loss of data on power off
Product Description
The Whiteness and Chromaticity Tester TP-A10 measures the whiteness, yellowness, color and color difference, reflectance value, stimulus value of the sample. It measures the paper opacity, transparency, light scattering coefficient, light absorption coefficient, and ink absorption value. The compact, advanced circuit design ensures the accuracy and stability of measurement data. This color tester measures the ISO brightness (blue whiteness R457) and Z whiteness (Rz) of fluorescent whitening samples due to the emission of the fluorescent material.
Applications:
The Whiteness & Color Tester is used to measure color values, brightness, and whiteness in papermaking, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, salt, and other industries.
Measurement Mode:Diffuse reflection factor Rx / Ry / Rz / stimulus value Y10 / X10 / Z10 / chromaticity coordinates x10 / y10 / z10 | lightness L* / chroma ab / chroma Cab / hue angle hab / dominant wavelength λd / excitement purity Pe / color difference ΔEab / lightness difference ΔL / chroma difference ΔCab / hue difference ΔHab / Hunter system L / A / b
